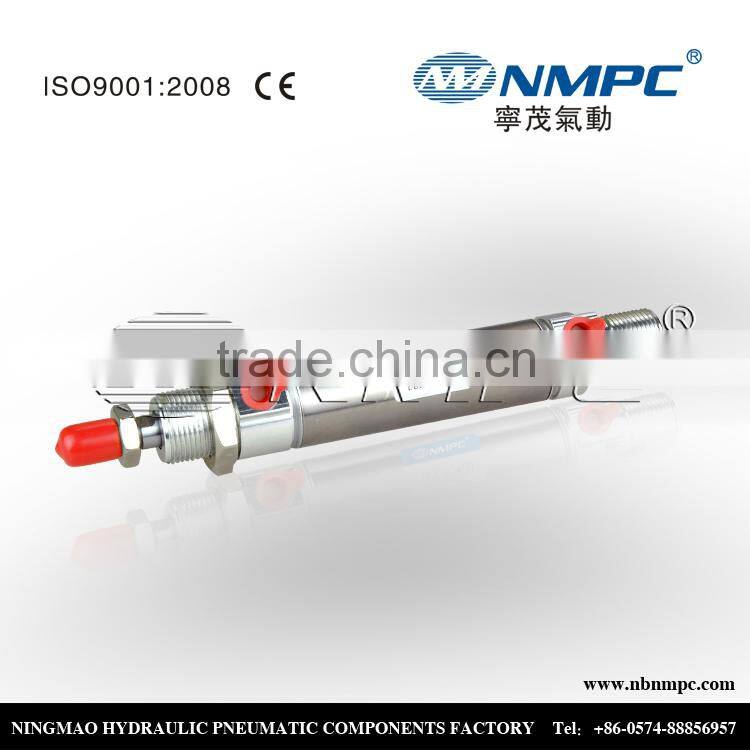

High Quality Cheap MA, MAL Small Textile Air Pneumatic Cylinder Quality Choice
high quality cheap MA, MAL small textile air pneumatic cylinder
Features:
Application of new seal material and buffer structure
Low start pressure
Stable operation
Fine tightness
Long service life
Head and rear cover are specially electrophoresis-coated
Beautiful appearance
Widely used in automatic devices, e.g. light industry, chemical industry, textile, electron, machinery, etc
Specification:
1. mini stainless steel mini air cylinder
2, heteromorphosis and bidirectional seal structure of piston seal. Compacted size. Oil stock;
3, front and rear cover is with fixed anti-shock washer to relief the shifting shock.
4, different rear covers make assembly more convenient.
5, front and rear cover are riveted and rolled. Connection reliable.
6, high precision stainless steel tube, high strength, anti corrosion.
Inner diameter(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |||||||
Working type | MSA,MTA | Single acting | - | |||||||||||
MAR | - | Double acting | ||||||||||||
MA,MAD,MAJ | Double acting | - | ||||||||||||
MAC,MACD,MACJ | - | double acting with cushion | ||||||||||||
Working medium | Air (filtered by 40μ filter element) | |||||||||||||
Working pressure | Double acting | 0.1~1.0Mpa(15~145Psi) | ||||||||||||
Single acting | 0.2~1.0Mpa(28~145Psi) | |||||||||||||
assured pressure | 1.5 Mpa(215Psi) | |||||||||||||
Working temperature | -20~70℃ | |||||||||||||
Working speed range | Single acting:50~800mm/S | Doubleacting:30~800mm/s | ||||||||||||

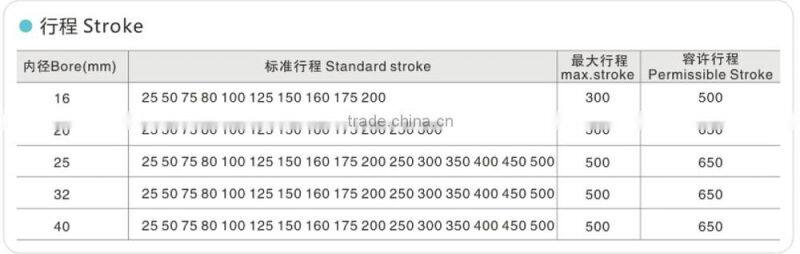

Stroke tolerance |
| |||||||||||||
Cushion type | MAC,MACD,MACJ adjustable, others:anti- shock | |||||||||||||
Port size | M5X0.8 | PT1/8 | PT1/4 | |||||||||||

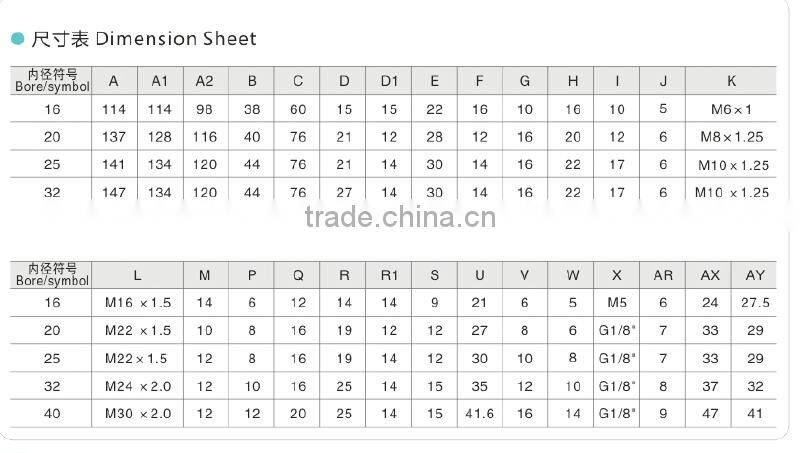

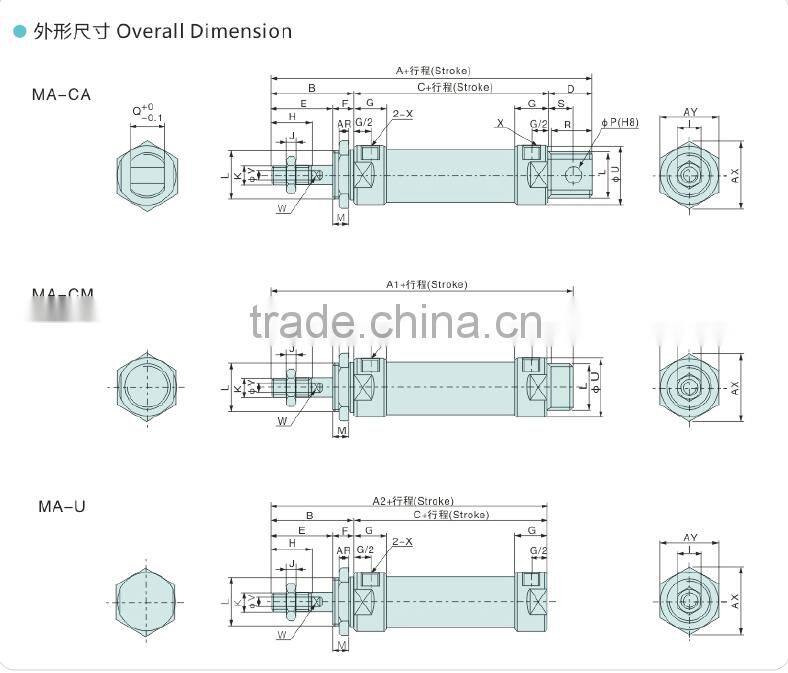

Dimension Size :

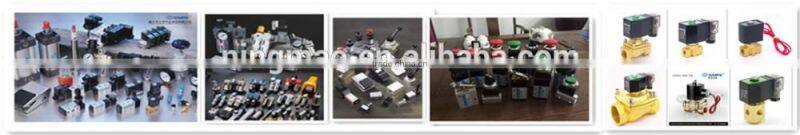

Products:
In addition to our cooper parts mainly used in pneumaic and hydraulic fidlds , we have developed pu air tubes ,samll ball valves,quick couplings,ect.RIXIN BRASS FITTING CO.,LTD founded in 1991 . The factory is a private enterprise covering the complete process of design , manufacture,marketing and service.
Professional production equipment
The factory has five production line,more than 100 workers . Cutting workshop make the brass raw material into appropriate length.after cutting some material send to Instrument lathe workshop and CNC workshop ,some of material send to punch workshop processed into the shape which we need. our CNC work shop Produces the product accuracy can be controlled in the error of 0.01 mm . And punch workshop can make goods according to your needed . The Assembly shop with automated equipment , Reduce the error of the product. PU tube workshop using European automation equipment,and clean management.
Rich processing experience
Our engineers team with rich experience in production line, an average of more than 10 years of experience in practice
Each year more than a month of study and communication It is our claim to the engineer.we have the modern warehouse management to ensure that the appropriate inventory to guarantee the delivery time, through the information management to reduce the warehouse cost, make products with competitive price.
Profession design team
We have our own product design team, and packaging design team.Help us to make the products fit your market , and help you win the market. we can make your logo on products and make the packaging with your logo or your design .
Rigid quality control
Every products we produce with strict inspection more than two times before packaging. We have a full set of inspection equipment,to do Pressure test and temperature test,some of products will do the durability test.To ensure every products with good quality .
