High Quality HP Graphite Electrode With Nipple For Arc Furnaces

High Quality HP Graphite Electrode With Nipple For Arc Furnaces thumbnail-1
High Quality HP Graphite Electrode With Nipple For Arc Furnaces thumbnail-2
High Quality HP Graphite Electrode With Nipple For Arc Furnaces thumbnail-3
High Quality HP Graphite Electrode With Nipple For Arc Furnaces thumbnail-4
High Quality HP Graphite Electrode With Nipple For Arc Furnaces photo-1
High Quality HP Graphite Electrode With Nipple For Arc Furnaces photo-2
High Quality HP Graphite Electrode With Nipple For Arc Furnaces photo-3
High Quality HP Graphite Electrode With Nipple For Arc Furnaces photo-4
US$ 1,500 - 4,000 MOQ: 20 Tons
Key Specifications
Get Latest Price
Place of Origin:
China
Application:
Used in EAF and LF for steel making, as well as in electric smelting f
Diameter:
40-600mm
Contact Supplier Request Quote Chat Now
Qingdao Develop Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Application Used in EAF and LF for steel making, as well as in electric smelting f
Diameter 40-600mm
Flexural Strength (N/㎡) 9-16MPA



Product Description



Specifications

RP HP UHP Graphite Electrode
1.Dia:40-600mm or1.6"-24"
2.Length:250-2400mm or10"-96"
3.Nipples:3TPI,4TPI
4.ISO9001:2008

Applications

Used in EAF and LF for steel making, as well as in electric smelting furnace for producing industrial silicon, phosphorus, etc.



Grades:RP, RPI, HP, SHP, UHP

All graphite electrodes are offered with tapered nipples, i.e. 3 or 4 threads per inch, and meet the internationally accepted tolerances as per NEMA CG 1/ IEC 60239 / JIS R7201 standards.

Specifications



Item

Unit

RP Grade
Dia 100-600mm

  IP Grade Dia 150-500mm

HP Grade
Dia

300-600mm

SHP Grade
Dia 300-600mm

UHP Grade
  Dia 350-600mm

 Electrode
Resistivity≤

 Nipple

μΩM

8.5
7.5

7.5
7.0

6.5
6.0

6.0
5.5

5.5
4.5

 Electrode
Bending strength ≥

Nipple

MPa

9.8
13.0

10.0
13.0

10.0
14.0

10.0
16.0

11.0
16.0

 Electrode
Elastic Modulus ≤

Nipple

GPa

9.3
14.0

12.0
14.0

12.0
16.0

14.0
18.0

14.0
18.0

  Electrode
Bulk Density ≥

 Nipple

g/cm

1.56
1.69

1.62
1.70

1.63
1.72

1.64
1.72

1.65
1.72

Electrode
CTE ≤

Nipple

100~600

2.9
2.8

2.7
2.5

2.2
2.0

2.2
1.6

1.5
1.4

 ASH≤

%

0.5

0.3

0.3

0.3

0.3

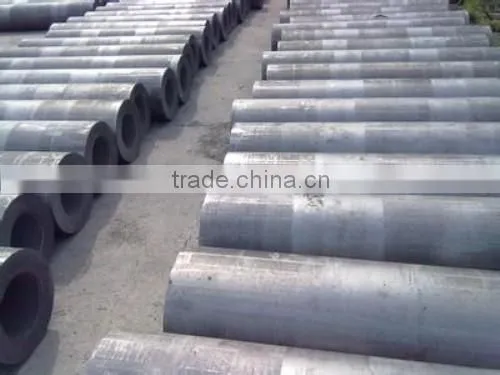

 High Quality HP Graphite Electrode with Nipple For Arc FurnacesHigh Quality HP Graphite Electrode with Nipple For Arc Furnaces
