XY - 4000 Industrial Online Dissolved Oxygen Meter

Name: XY - 4000 Industrial Online Dissolved Oxygen Meter
Brand: Yunyi
Availability: InStock

FOB Price

US$ 500 - 700 / Unit

1 Unit(Min. Order)

Port beijing shanghai tianjin shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	Yunyi
Model Number	XY-4000

Packaging Details

XY - 4000 industrial online dissolved oxygen meter
Corrugated cardboard boxes outer and foam paper inner packing size:
96 * 96 * 130 mm;

Product Description

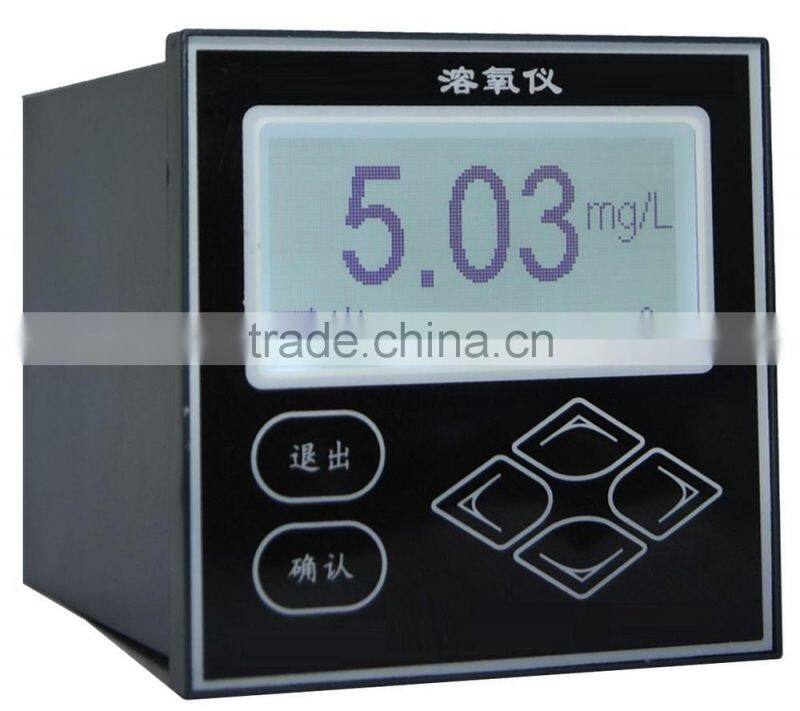

XY - 4000 industrial online dissolved oxygen meter

Description of XY - 4000 industrial online dissolved oxygen meter:

XY - 4000 industrial online dissolved oxygen meter with microprocessor monitoring instrument online of water quality. The instrument configuration of the different types of dissolved oxygen electrode is widely used in power plants, petrochemical industry, metallurgy, electronics, mining, paper, fermentation, pharmaceutical, food and beverage, environmental protection water treatment, aquaculture, and other industry. For continuous monitoring of dissolved oxygen (do) value of the aqueous solution and temperature and control.

Features of XY - 4000 industrial online dissolved oxygen meter :

1. LCD liquid crystal display screen

2. Manual/automatic temperature compensation

3. A variety of automatic calibration function

4. Two sets of relay control switch

5. High limit / / low limit / / hysteresis control

6. RS232 / RS485 communication connection

7. Double optional signal output current/voltage output

8. The same interface display value of dissolved oxygen and temperature

9. Set password to prevent non-work personnel wrong operation

Technical parameters of XY - 4000 industrial online dissolved oxygen meter:

(1) measuring range: Dissolved oxygen (do) : 0.0 ~ 200 (including g/L; 0.2 ~ 25.0 mg/L;

The temperature: - 5 ~ 110.0 ℃;

(2) the resolution: Dissolved oxygen: including 0.01 g/L; 0.01 mg/L;

The temperature: 0.1 ℃;

(3) the basic error: Dissolved oxygen (do) : + / - 0.2 (including g/LF, S; + / - 0.2 mg/LF, S;

Temperature: + / - 0.3 ℃;

(4) automatic or manual temperature compensation scope: 0 ~ 110 ℃

(5) the residual signal electrode: <1‰

(6) the response time (final value 90%) : 25 ℃ when the < 60 s; At 35 ℃ < 30 s;

(7) stability: Under the atmospheric temperature, drift every week < 2% f. S.

(8) standard current or voltage output: The 0 ~ 10 ma (load resistance < 1.5 K Ω);

4 ~ 20 ma (load resistance < 750 Ω);

Optional: 0 ~ 5 VDC, 0 ~ 10 VDC, etc;

(9) two sets of relay control contact: 3 a 240 vac, 6 a 28 VDC or 120 vac.

(10) meter power supply: 220 vac plus or minus 10%, 50 + 1 hz, power 3 w or less;

24 VDC power: 1 w or less;

12 VDC power: 1 w or less;

(11) instrument appearance size: 96 * 96 * 130 mm;

(12) instrument installation: in tray (embedded);

Installation hole size: 91 x 91 mm

(13)Electrode installation method: [ circulation type ] [ reaction kettle ]etc

(14) optional features: / RS232 / RS485 communication interface connected to the computer

(15) weight: 0.6 kg

(16) Instrument working environment: ambient temperature10 ~ 60 ℃:

Relative humidity: no more than 90%;

In addition to the earth's magnetic field around without a strong magnetic field interference.
