IR drying machine infrared tunnel oven for sale SD3000
- 50 Set / Sets per Month
- Shenzhen
- T/T D/P D/A Credit Card PayPal
- Infrared and circulating air dryer Printing Ink Tunnel Oven Machine
- big size Automatic screen printing machine for sheet with automatic blanking
- Printing Ink Tunnel Oven Machine
- Ozone-free energy saving and environmental protection LED uv curing machines
- Round/Plane Surface UV Drying Machine
- Bottle UV Drying Machine
Product Details
Condition: | New | Type: | Other, IR drying, IR drying machine | Automatic Grade: | Automatic |
Place of Origin: | Guangdong, China | Brand Name: | LC | Model Number: | SD3000 |
Voltage: | AC 380V 50HZ | Power(W): | KW | Dimension(L*W*H): | (L)1580x(W)1180x(H)1300mm, (L)3100x(W)1050x(H)1260mm |
Weight: | 300KG, 300KG | Certification: | CE Certificate | Warranty: | Lifelong |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
IR drying machine infrared tunnel oven for sale SD3000
IR drying machine infrared tunnel oven for sale SD3000
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )
This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:
1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.

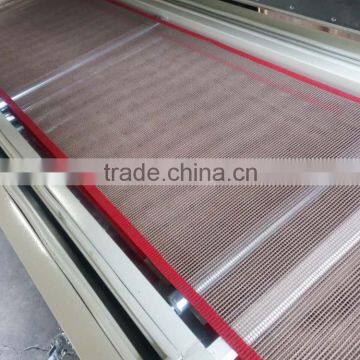

3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
1. | Conveyor length :3000 |
2 | Conveyor width:600mm |
3 | machine size: (L)3100x(W)1180x(H)1300mm |
4 | working power: AC 380V 50HZ |
5 | Temperature adjustment: 0-200 Centigrade |
6 | constant temperature will be 5º C more or less |
7 | temperature resolution: 1º C |
8 | Belt speed adustment: 0-10M/MIN |
9 | Gross weight: 300KG |
Warranty | For all our machines, we provide one-year warranty. |
Picture:

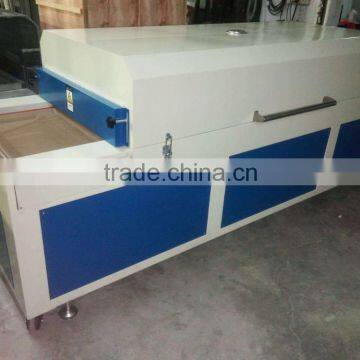

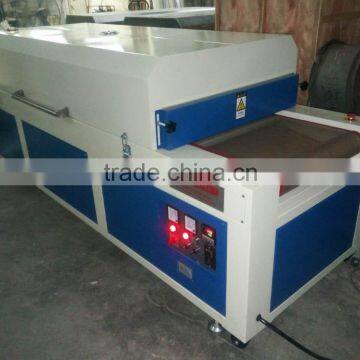

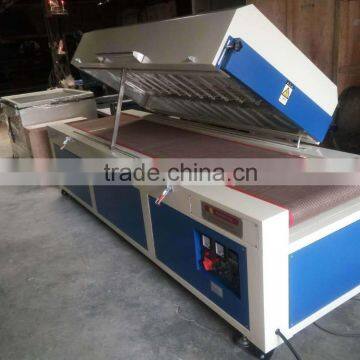

IR drying machine infrared tunnel oven for sale SD3000
Package

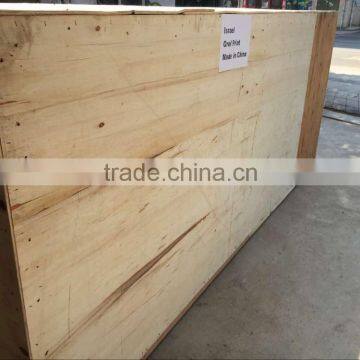

Machine Wrarpped in PVC film, wooden case/ply wood/as required
Should any more informations be required,please feel free to contact with us.
1 .The guarantee time is 1 years, and maintain is lifelong.
2. We will make sure the machine all work well before package.
3.Your inquiry related to our prduct &price will be replied within 12 hours .
4.Our company have 25 years experience in the printing file.
