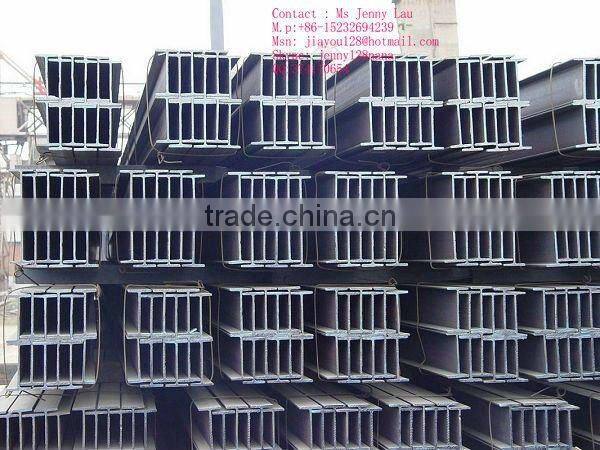

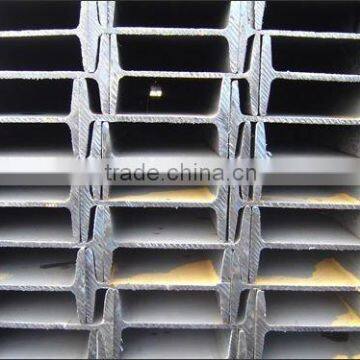

EN Standard Steel IPE & IPE AA

Name: EN Standard Steel IPE & IPE AA
Brand: YUNFENG
SKU: 109019457
Availability: InStock

US$ 500 - 700 MOQ: 40 Metric Tons

Key Specifications

Leg Height:

55mm-135mm

Depth:

100-270mm

Standard:

Tangshan Yunfeng Industrial & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port or as buyer's demand

Delivery Detail:

Delivery time depends on order quantity.

Leg Height 55mm-135mm

Depth 100-270mm

Standard EN

Grade SS400 - SS490

Place of Origin Hebei, China

Brand Name YUNFENG

Model Number Q235B/SS400 100*55-270*135mm

Application constrction structures,bridges,brackets,mechanisms and so on..

Specifications

IPE AA Steel I beam
1.Grade:Q235B,SS400,SS400B
2.Size:100*55-270*135mm
3.Length:6m,9m,10m,12m
4.Quality certificate:ISO9001

We are one of the leading Structural steel manufactuer & suppliers in Tangshan,china,mainly supplying various types of steel products.Such as :

1) H-Beam & I- Beam

2) Channels & Angels

3) IPE & IPE AA

4) Steel light & heavy rails

5) Hot rolled Steel sheet piles

6) SS400B / SS400CR Alloyed structural steel

Contact details: Miss Jenny Lau

Tel 0086- 315-2975215 M.P 0086-15232694239

Fax 0086-315-2975214

Skype: jenny128nana

Please see the specification details of EN Standard IPE as below:

EN STANDARD IPE

Designation	Specification Depth*flange width (mm)	Web thickness (mm)	Flange thickness (mm)	Weight (kg/m)
IPE120	120*64	4.4	6.3	10.4
IPE140	140*73	4.7	6.9	12.9
IPE160	160*82	5.0	7.4	15.8
IPE180	180*91	5.3	8.0	18.8
IPE200	200*100	5.6	8.5	22.4
IPE220	220*110	5.9	9.2	26.2
IPE240	240*120	6.2	9.8	30.7
IPE270	270*135	6.6	10.2	36.1

EN STANDARD ECONOMICAL IPE

Designation	Specification Depth*flange width (mm)	Web thickness (mm)	Flange thickness (mm)	Weight (kg/m)
IPE100 AAx6.7	100*55	3.6	4.5	6.72
IPE120 AAx8.3	120*64	3.8	4.8	8.36
IPE140 AAx10.0	140*73	3.8	5.2	10.05
IPE160 AAx12.3	160*82	4.0	5.6	12.31
IPE180 AAx14.9	180*91	4.3	6.2	14.94
