paint bucket HDPE bucket heat transfer machine tubs printing machine TH-350R
- 200 Set / Sets per Month
- FOB Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
- 2 stamp heads Automatic Hot Stamping Machine for cards
- Card Automatic Hot Stamping Machine for id cards
- Hongyuan Wood Grain Print Transfer for Door Hot Transfer Sublimation Lamination
- Fully automatic pneumatic double station Double side heat press
- aluminum profile wood grain transfer machine
- 8 In 1 Machine-Ce Certificate
Product Details
Condition: | New | Plate Type: | Other, heat transfer machine | Place of Origin: | Guangdong, China |
Brand Name: | LC | Model Number: | LC-TC-350R | Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, bucket containers heat transfer machine |
Automatic Grade: | Semi-Automatic | Voltage: | 220 V/ 50Hz | Gross Power: | 2000W |
Dimensions(L*W*H): | 1400 * 1000 * 1900mm | Weight: | 500KG | Certification: | CE Certificate |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
paint bucket HDPE bucket heat transfer machine tubs printing machine TH-350R
paint bucket HDPE bucket heat transfer machine tubs printing machine TH-350R
The features of the buckets heat transfer machine:
1 .An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.
2 .Gilding press elbow mechanism design, strong steady pressure of 250kgf, under hydraulic pressure, up to 1 ton.
3 .Stamping pressure, temperature, hot pressing time is adjustable.
4 .operating panel with emergency stop device, easy to operate ,safe and fast.
5 .the fixtures rotation speed pressure is adjustable,the time is adjustable .
6 .automatic collection feeding is adjustable. Taiwan motor, can be customized for the two-speed winders cover a bit more precise, go within membrane accuracy 0.5mm.
7 .installation photocell (Taiwan's Yangming electric eye, 250 times per second high-precision motion) to locate the point of thermal transfer paper with precise tracking control.
8 .lifting stamping head height adjustable, stamping 300MM larger workpieces. Taiwan gold solenoid valve precise control, the German NASS coil stable and durable. All screws are made of 12.9, more stable and more durable.
9 .with emergency stop safety devices to protect the safety of the operator.
The technical parameters of the heat transfer machine:
1.Max stamping diameter: L 280* φ300mm
2.Heating power(can be customize): 2000W
3.hot head outer diameter 100mm /inner diameter of 30mm
4.Stamping temperature range of options: room temperature reach 280 degrees Celsius
5.Stamping time :0-99 seconds
6.Stamping pressure range of options: ≤250kgf -100kgf (7bar)
7.Stamping speed: 120pcs / hr
8.Power: 220 V/ 50Hz
9.Machine weight:500KG
10.Dimensions: 1400 × 1000 × 1900mm

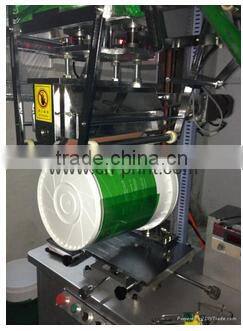

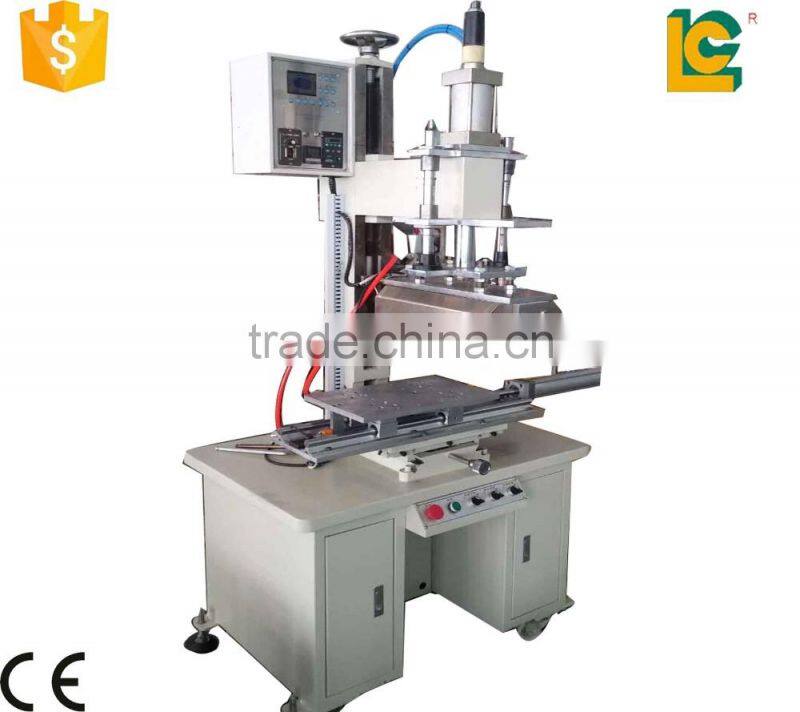

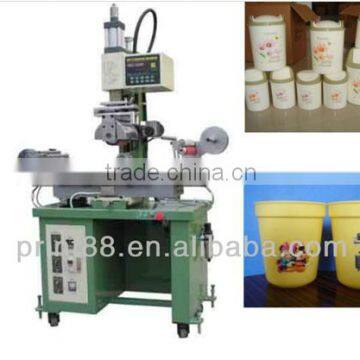

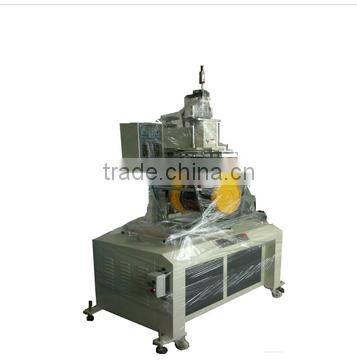

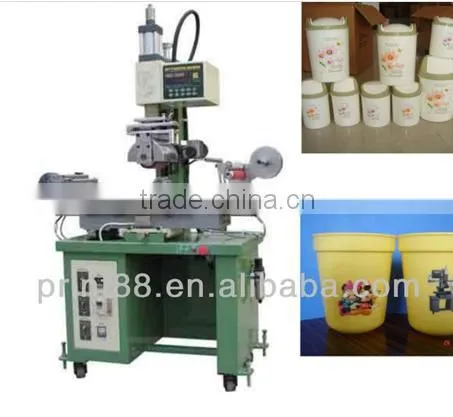

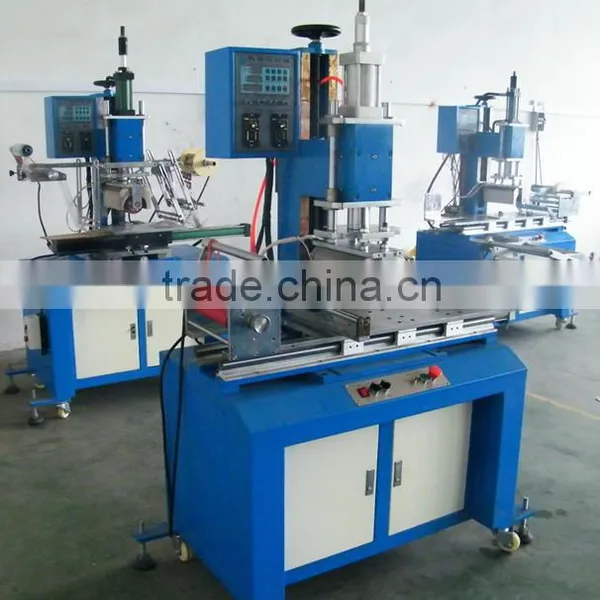

The pictures of the Large format bucket heat transfer machine for 20 liter bucket printing machine :

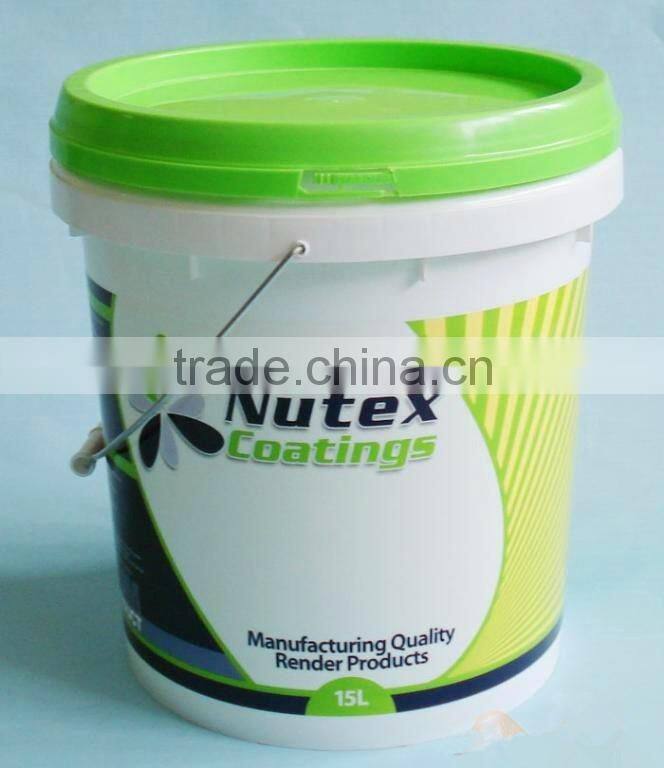

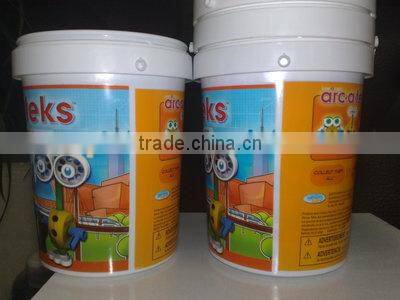

The samples of
paint bucket HDPE bucket heat transfer machine tubs printing machine TH-350R
machine :
paint bucket HDPE bucket heat transfer machine tubs printing machine TH-350R
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers

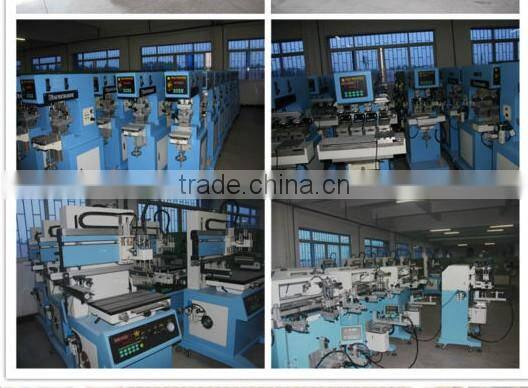

Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
The details of the hear transfer machine:
The other hot sale items:
Top 1:LC-6090P precision advertisement screen printing machine
top 2: desktop UV curing machine
2. Q:Can you send me the video to show how the machine works?
A:certainly,we have made video of every machine and uploaded them to Youtube.
3. Q:How can I know your machine works well?
A:Before delivery,we shall test the machine working condition for you.
4. Q:How can I know your machine is designed for my product?
A:You can send us samples of your product and we test it on machine.
