Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > OEM Peristaltic Pump With Drive, Model: T100-S1, Speed: Max. 100rpm, Small Flow Error Between Dual Channels

OEM Peristaltic Pump With Drive, Model: T100-S1, Speed: Max. 100rpm, Small Flow Error Between Dual Channels

OEM Peristaltic Pump With Drive, Model: T100-S1, Speed: Max. 100rpm, Small Flow Error Between Dual Channels photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
LongerPump
Model Number:
T100-S1
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Airport Tianjin Xingang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name LongerPump
Model Number T100-S1
Theory Other, peristaltic dosing pump
Structure Other, peristaltic pump
Usage Other, peristaltic dosing pump
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure Low Pressure
Application Metering

OEM Peristaltic Pump with Drive, Model: T100-S1, Speed: max. 100rpm, Small Flow Error between Dual Channels



Product Description

Overview

Adopt JY15-24 pump head, small flow error between dual channels.
Ideal OEM peristaltic pump for equipments and instruments.
Soleplate or panel installation.



Specifications:

- Speed: ≤100rpm
- Speed resolution: 0.1rpm
- Flow rate error between dual channels: ≤ ±3%
- Control Mode: Dial switch combine with external signal (4-20mA)
- Direction control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- Start/stop control: Pump runs if external control input is open circuit; pump stops if external control input is close circuit.
- BCD dial switch speed control: 15 kind of speeds are available for internal control, and "0" position is for external control.
- Dimension (LxWxH): 129mmx82mmx90mm
- Relative humidity: <80%
- Operating temperature: 0 to 40 °C
- Power supply: DC11.4V-25.2V/20W

Flow Rate:
TubingMax. Flow Rate
13#4mL/min(Single channel)
14#13mL/min(Single channel)
19#27mL/min(Single channel)
16#43mL/min(Single channel)

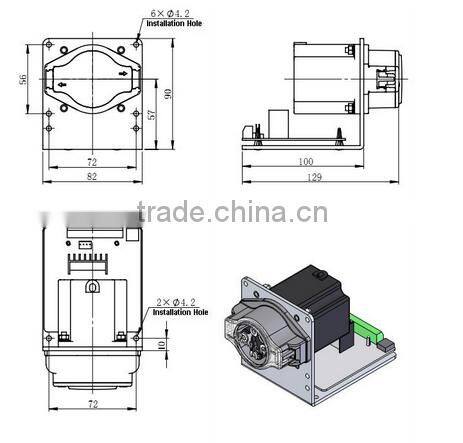

 Installation Drawing









Packaging & Shipping



1Piece/Carton with Plastic foam, suitable for air/sea/overland transport. Within 7 working days we deliver the products by DHL, TNT, UPS, EMS etc.





Our Services

 1-year quality warranty and lifetime repair.





Company Information



We, Beijing Mingbofei Science Technology Limited Company, is China-based professional supplier of laboratory, commercial and industrial instruments and equipment. Our products cover Laboratory Analytical Balances, Commercial and Industrial Weighing Scales, Laboratory Centrifuges, Optical Cables, LED Lights, Intelligent Sensors, Peristaltic Pumps.



Since incorporation, we've been committed to provide the state-of-the-art products and excellent services for clients at competitive price. Up to now, we have established cooperation with clients from North America, South America, Southeast Asia, Mideast, Africa, and got their high praise of our products and services. Our clients include importers, distributors, wholesalers, end-users.



We believe that customer retention and satisfaction is the key to success. We differentiate ourselves by offering dedicated and quality service support. We strive to add value to both our customers and principals through customer satisfaction, service excellence and quality products.
