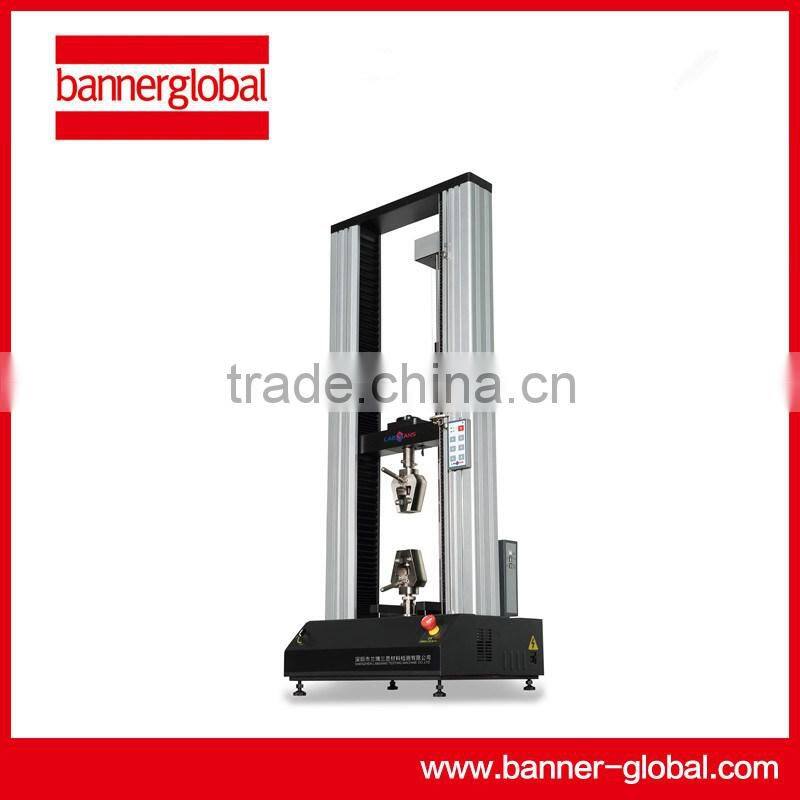

High quality Labsans 50N--10KN universal testing machine / universal testing equipment
Specification: 50,100,200,500 N,1,2,5 ,10 kN
Model: LD23.501,LD23.102,LD23.202,LD23.502,LD23.103,LD23.203, LD23.503,LD23.104
Use: Mainly suitable for all kinds of nonmetal materials tensile, compression, bending, shear, peel, tear test, etc.
Abstract: main frame & raquo; Ball screw with high accuracy, preload, improve the transmission efficiency and accuracy of displacement. & raquo; High strength bar fixed on the beam of light and working mesa, constitute a high rigidity
Main frame
Ball screw with high accuracy, preload, improve the transmission efficiency and accuracy of displacement.
High strength bar fixed on the beam of light and working mesa, constitute a high rigid frame structure.

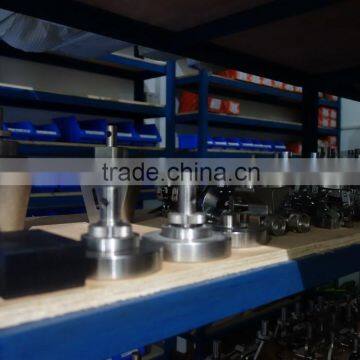

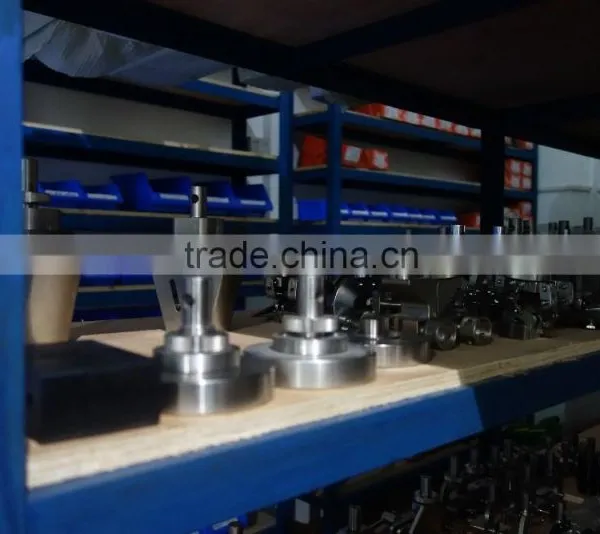

jig
Easy to operate, reliable clamping of special fixture of various kinds of materials.
The deformation measurement system
With strain type electronic, extensometer measurement system with high precision, fast response, realize the measurement of small deformation of metallic materials.
Electronic according to gauge extensometer and the deformation has a variety of specifications, can meet the material of different types, different shape measurement.
Technical parameters:
series | LD23 |
model | 104 |
The biggest test force | 50N 100N 200N 500N 1KN 2KN 5KN 10KN |
Testing machine accurate level | 0.5/1 level |
Test the test scope | 0.4%-100%FS/0.2%-100%FS(The entire don't step ) |
Test force relative error value | Within ±0.5% /±1.0% |
The deformation measurement range | 0.2%-100%FS |
Deformation relative error value | Within ±0.5% |
Deformation of the resolution | Most of the deformation 1/350000 |
Large deformation measurement range | 10-800mm |
Displacement relative error value | Within ±0.5% |
The displacement resolution | 0.05um |
Force control speed adjusting range | 0.02-5%FS/S |
Force control rate, relative error | ±0.1% The set value within |
To measure speed adjusting range | 0.02-0.5%FS |
Constant force, constant strain, constant displacement control | 0.5-100%FS |
Beam range (no jig) | 1000mm |
Effective width of test | 340mm |
Host size (length x width x height) | 620 x 460 x 1530mm |
The power supply | 220V ±10% ; 200/400W |
The host weight | About 100kg |

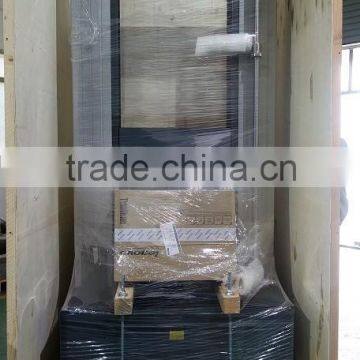

Packaging: packed with export standard wooden box.
Delivery Detail: One month
Shandong Banner International Trade Co., LTD., is your most reliable test helper in material testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked in MTS Systems Corporation more than ten years and provided solutions for various demanding and extremely complex material testing in many fields of China. Our goal is to create the best test experience for customers by providing the best quality products, professional technical support and world-class service to ensure accuracy, repeatability and reliability of test data.
Our product catalog:
Electronic universal testing machine:
Hydraulic universal testing machine
Electronic torsion test machine
Tensile testing machine
Pressure testing machine
Compression resistance test machine
Pendulum impact testing machine
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
Tel: +86 537 3167400 Fax: +86 537 3165401
Mob: +86 15020783503
Whatsapp/viber: +86 15020783503
Send Inquiry to This Supplier
