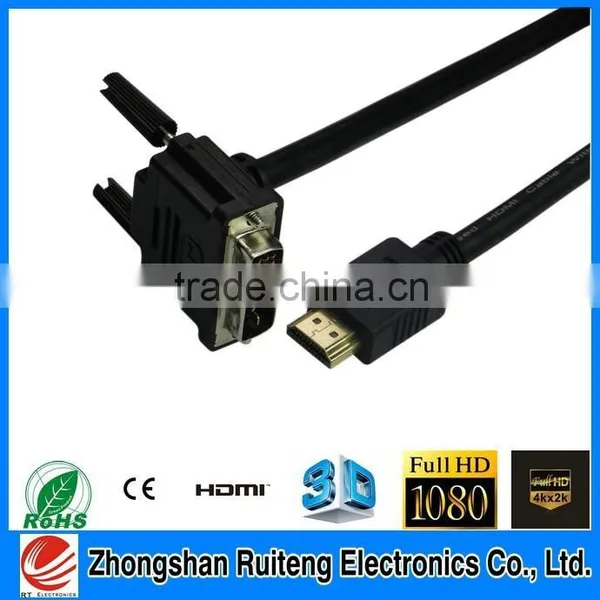

New style colorful hdmi to dvi audio adapter with 3.5mm audio

SPECIFICATIONS:
· DVI(18+1) or DVI(24+1) TO HDMI (19+1) PIN
· PVC Molding
· Gold plated connectors
· With nylon protection layer protect cable from abrasion
· Digital Transfers at rates up to 10.2 Gbps
· High purity Oxygen Free Copper conductor
· All materials conform to RoHs standard.
dvi to hdmi
HS-HD01,High Speed hdmi to dvi cable

FEATURES:
· DVI-D Male to HDMI Male Digital / Digital Single Link Cable
· Digital Visual Interface (DVI) is the standard interface for a high-performance connection between PC and flat panel displays, digital CRT displays, projectors, and HDTV.
· DVI Single-Link Digital/Digital Video Cables from Impact Acoustics deliver the high-performance, high-bandwidth interface needed for video displays of today while leaving headroom for the products of tomorrow.
· These precision-engineered cables are fully compliant with the DVI standard defined by DDWG (Digital Display Working Group).
· The DVD-D configuration provides enough bandwidth for resolutions up to 2048 x 1536 and allows high speed digital transmission up to 9.9 Gbps.
· Shielded undermold protects against unwanted EMI/RFI interference
· Double-shielded with Mylar foil and braid shield reduces interference
· Gold-plated contacts provide full conductivity without ghosting and data loss
· Supports hot plugging of DVI display devices
· Resolutions up to 2048 x 1536
· Supports digital signal only
· With thumbscrews for easy installat
dvi to hdmi
HS-HD01,High Speed hdmi to dvi cable

ELECTRICAL:
· 100% Open&Short Test
· Voltage: DC300V 5M ohm/10ms
· Insulation Resistance: 10MΩ min
· Contact Resistance: 2 ohm max
· Working Temperature: -25C-80C
dvi to hdmi
HS-HD01,High Speed hdmi to dvi cable

PACKAGING:
-Polybag with sticker
-Giftbox,color box
-Blister
