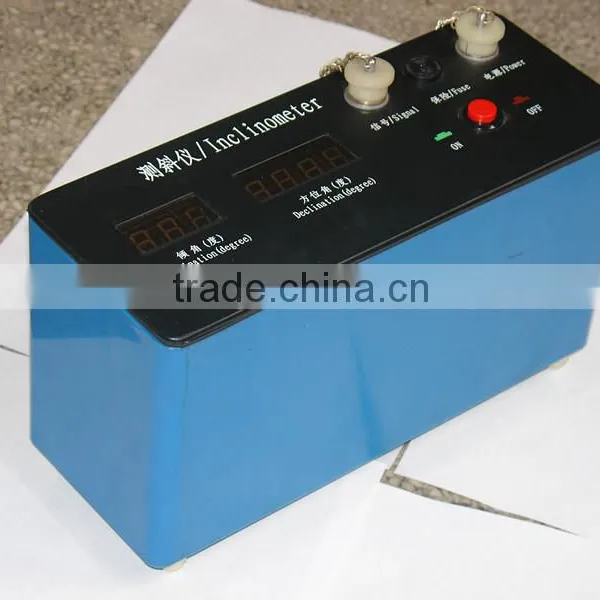

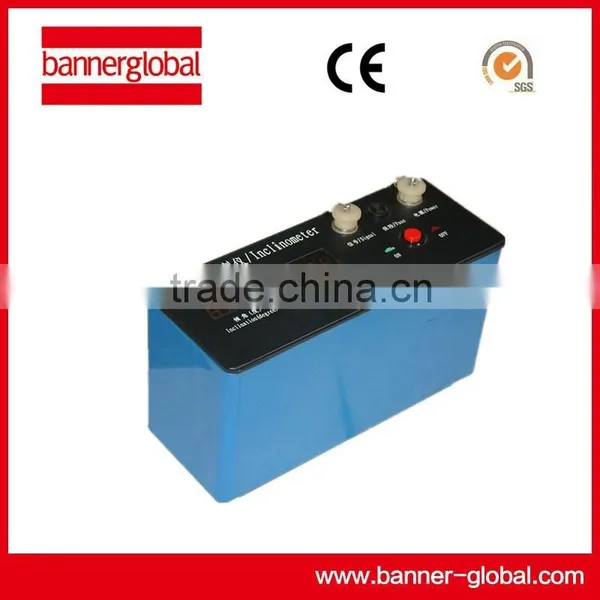

JQX-2 Light Digital Inclinometer
Main Application
Measurement of Vertex and azimuth for various types of geological drilling with non-magnetic or weak magnetic
System Components
Ground host, logging probe, manual winch and other related accessories
Features and Functions
l Light in weight, practical in use, easy to operate
l Digitally display, reading vertex and azimuth directly
l Point measurement or continuously measurement is available
Main Technical Specifications
Inclinometer Measurement Range |
0~60°,Accuracy ≤0.1° |
Azimuth Angle Measurement Range |
0~360° |
Accuracy |
±4°(Vertex≥3°) ±6°(2°≤Inclinometer≤ 3°) |
Working Environment: Temperature |
0℃~ 85℃ |
|
Probe Dimension Weight |
Φ42*980mm 2kg, weight-gained bar 5kg |
Down-hole Depth Probe |
≤1000m |
|
Instrument Dimension Weight |
240*95*140mm 0.8kg |
