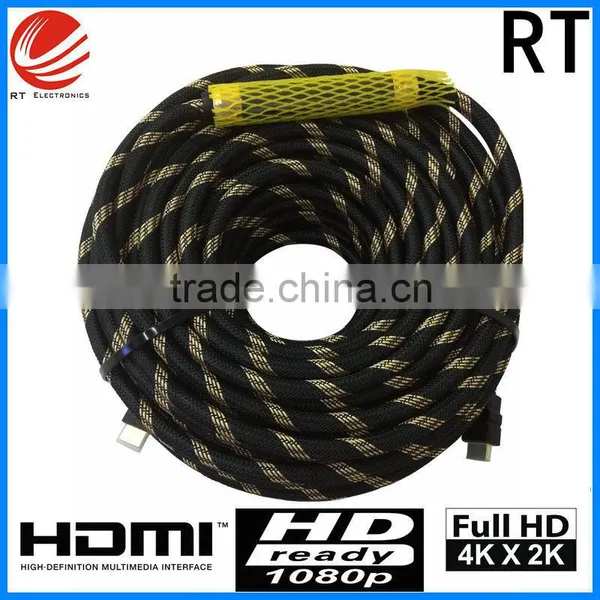

20M Premium 24k Gold 2.0 HDMI Cable Quality High Speed Metal 4K*2K 3D HTDV
high speed hdmi cable with ethernet
SPECIFICATIONS | |
Conductors |
High purity Oxygen Free Copper |
Insulation |
Outer Jacket and color optional |
Contacts |
24K Gold Plated |
Connectors |
Metal shell type (Zn alloy) |
Available lengths |
20m 15m 10m 7m 5m 3m (or at customer request) |
Available terminations |
HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P |
Available gauge |
24/26/28AWG(optional) OD:9.0/8.0/7.3mm |
Certification |
RoHS,UL,CE |
Shielding |
AL+ Mg+ Braiding+ Ferrite(for option) |
AWG |
24/26/28 |
ELECTRICAL | |
Quality Control |
operation according to regulations & rules in ISO9001:2008 |
Voltage |
DC300V 5M ohm/10ms |
Insulation Resistance |
10M min |
Contact Resistance |
5 ohm max |
Working Temperature |
-25C-80C |
Data transfer rate |
10.2Gbps Max |
Differential Impedance |
100±10Ω(TDR) |
FEATURES |
|
1, Center conductor: high quality digital signal delivered by oxygen-free copper 2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability. 3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference 4, Outer shield:95% AL+MG braid shield, prevents most low frequency noises and interference. 5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices. 6, High density triple shielding for maximum rejection of EMI and RFI 7, Transfer speed: 10.2Gbps 8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance 9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE |
PACKING |
|
A: Bubble blister is your first choice to make your prodcts attractive B: Premium Slide Blister is competitive in price but catch customer's eyes C: Gift box packing to make your products more environmental D: Poly bag with card header and barcode number is low cost but good looking E. Customer's designs are available by request |
Applications |
|
1.digital TV 2.Plasma display 3.LCD display 4.DVD player/repeater 5.Audio/video receiver 6.Home video system 7.Satellite system |
What is HDMI 2.0?
HDMI 2.0, which is backwards compatible with earlier versions of the HDMI specification, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.
HDMI 2.0 significantly increases bandwidth to 18Gbps and includes the following advanced features:
- Resolutions up to 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, for the ultimate video experience
- Up to 32 audio channels for a multi-dimensional immersive audio experience
- Up to 1536kHz audio sample frequency for the highest audio fidelity
- Simultaneous delivery of dual video streams to multiple users on the same screen
- Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
- Support for the wide angle theatrical 21:9 video aspect ratio
- Dynamic synchronization of video and audio streams
- CEC extensions provide more expanded command and control of consumer electronics devices through a single control point
Features and structure of HDMI cable:
1, Center conductor: high quality digital signal delivered by oxygen-free copper
2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.
5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.
6, High density triple shielding for maximum rejection of EMI and RFI
7, Transfer speed: 18Gbps
8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance
9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome
choose us and trust us
1.Supply one package service of R&Ddesign and production!
2.Professional marketing and shippong department to solve your question efficiently !
3.Best quality and auperior services for you !
Packaging:
1. Polybag,printed zip-lock bag or blister packaging are available for cable hdmi
2.According to customers
Shipping:
1.Normally we arrange shipment by air or by sea through your forwarder. If you have no forwarder, we can find cost-effective forwarder for your reference.tc.
2. If your order is not big enough.
Door To Door Service is a wise Choice, UPS, FEDEX, DHL, EMS,etc.
Packing pictures:
Question 1. How soon we can received the quotation ?
Reply: if all details and specification are provided by you , quotation can offerd within 8 hours,any urgent inquiry, pls call our hotline 0086 15918220890.
Question 2. Can you provide sample for evaluation?
Reply : Yes ,after quotation are confirmed , we can provide samll quantity sample . but express fee should paid by yourself.
Question 3. What is the minimum order quantity (MOQ) ?
Reply : Our MOQ is 100pcs per item
Question 4. What is your lead time ?
Reply : Our normal delivery time is 10-15 days,it depends on order quantity, if it is a top real urget order, we will try our best to do the priority for your order.
Question 5. What is your trade term?
Reply : FOB, CIF, EXW, DDU,DDP are all available , we are also able to help you to choose the cheapest and high efficient Transportation solutions
Question 6.What is the payment term:
Reply : For first time ,we onlyaccept T/T in deposit , after established stable and good business relationship, we accept L/C and open credit (OA) Paypal and westunion are also available .
Question 7. How long is the Product warranty ?
Reply : We guarantee our product for ONE years .
Question 8. Can you provide OEM& ODM service.
Reply : YES, no matter molding ,package or anything, our enginner team can make design according your idea, pls just let us know your idea.
If you are interested our product ,please offer us the details for the products you need, So that we can offer best price to you and sincerely wish we have chance to setup long time trade relations with you.
Contact person: Lily Su
