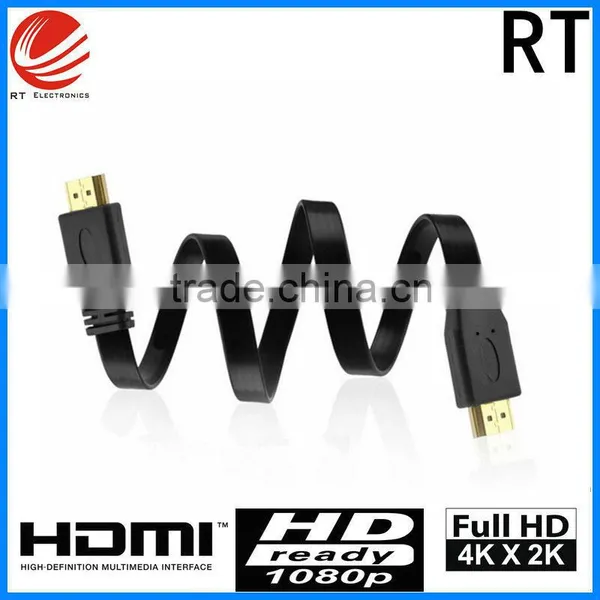

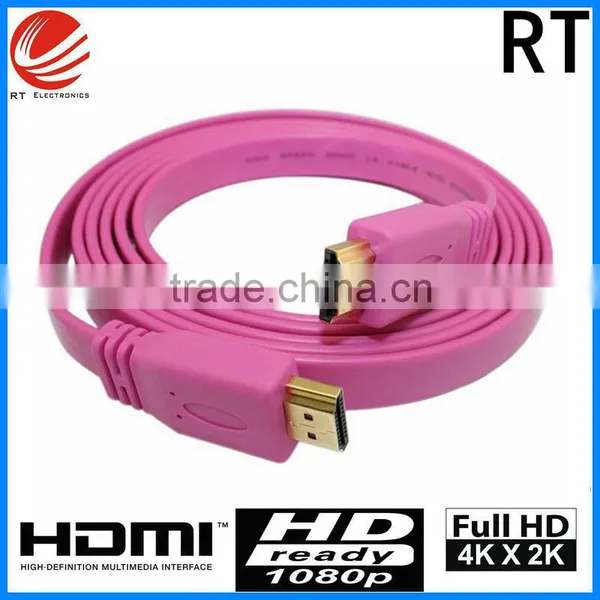

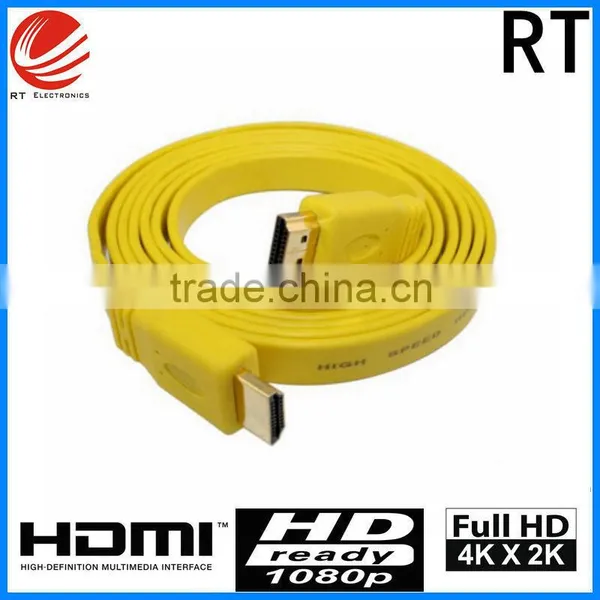

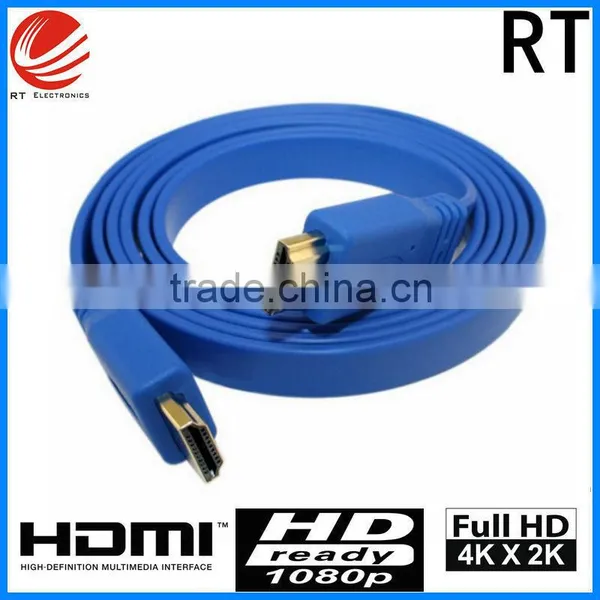

High speed Flat HDMI Cable 24k gold 3D Ethernet 1080p 2160P
SPECIFICATIONS | |
Conductors |
High purity Oxygen Free Copper |
Insulation |
Outer Jacket with protective nylon sleeve. (color optional) |
Contacts |
24K Gold Plated |
Connectors |
Metal shell type (optional) |
Available lengths |
3FT to 50FT ( 1m,1.8m,3m,5m,10m,15m ) optional |
Available terminations |
HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P |
Available gauge |
24/26/28/30AWG(optional) OD:6.0/7.3/8.0/9.0mm |
Certification |
RoHS,UL,CE |
Shielding |
AL+ ML+ Braiding+ Ferrite |
AWG |
24/26/28/30 |
HDMI Cable
1.Expanded color space
HDMI 1.4V supports three new color space (gamut), makes users to be able to see better and more correct color on HDTV. HDMI standard defines a more traditional RGB color model with a wider range of available colors visible to guarantee a larger area of the panchromatic domain is close to human eyes.
2. Audio Return Channel
The new channel allows the HDTV through the HDMI cable directly to the audio features A / V Receivers, without additional one cable.
3.Support 3D Display
The new specification will define common 3D HDMI device formats and resolutions for home 3D system input and output section standardized, up to two 1080P resolution video streams.
4.Support most of multiplayers devices

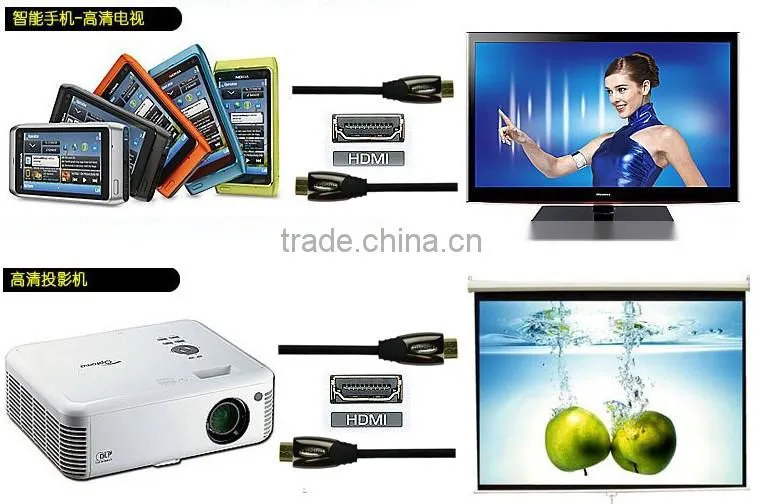

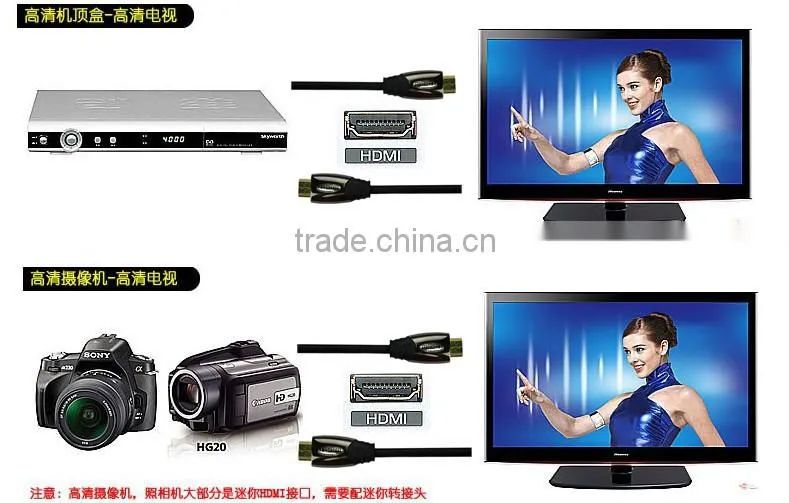

HDMI is a standardized definition era of digital audio / video interface technology that can be used to set-top boxes, DVD players, personal computers, televisions, cameras, mobile phones and other digital devices with HDMI interface. HDMI can transmit both audio and video signals, the maximum data transfer rate of up to 10.2Gbps. HDMI while with broadband digital content protection.
5.Support newest 2KX4K resolution
HDMI device supports HD resolution will reach 4KX2K, four times the current 1080P. The specific format: 380X2160 24Hz/25Hz/30Hz; 4096X2160 24Hz.
What is HDMI 2.0?
HDMI 2.0, which is backwards compatible with earlier versions of the HDMI specification, significantly increases bandwidth up to 18Gbps and adds key enhancements to support market requirements for enhancing the consumer video and audio experience.
HDMI 2.0 significantly increases bandwidth to 18Gbps and includes the following advanced features:
- Resolutions up to 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, for the ultimate video experience
- Up to 32 audio channels for a multi-dimensional immersive audio experience
- Up to 1536kHz audio sample frequency for the highest audio fidelity
- Simultaneous delivery of dual video streams to multiple users on the same screen
- Simultaneous delivery of multi-stream audio to multiple users (Up to 4)
- Support for the wide angle theatrical 21:9 video aspect ratio
- Dynamic synchronization of video and audio streams
- CEC extensions provide more expanded command and control of consumer electronics devices through a single control point

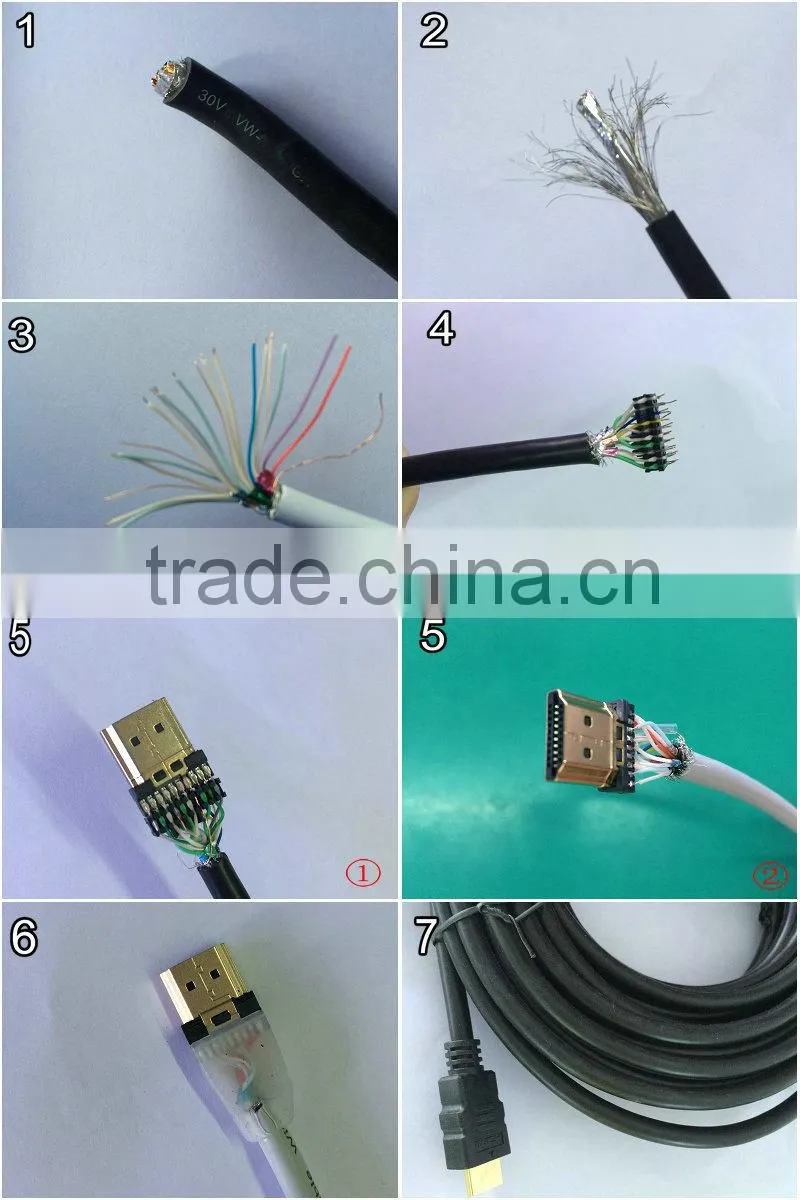

Features and structure of HDMI cable:
1, Center conductor: high quality digital signal delivered by oxygen-free copper
2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.

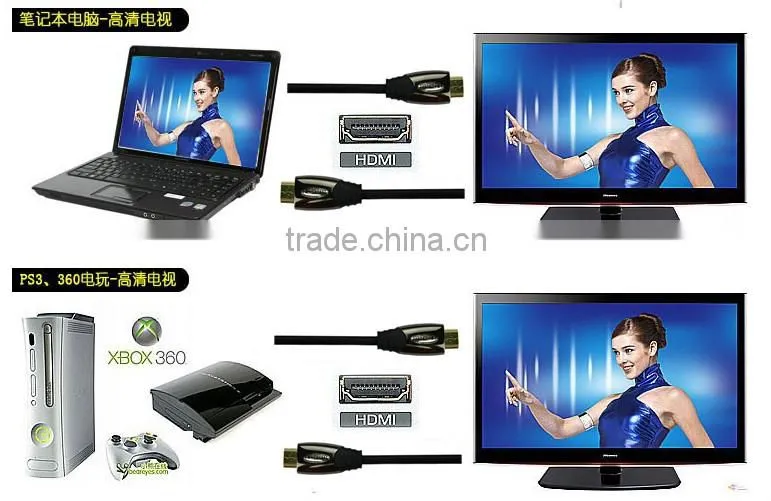

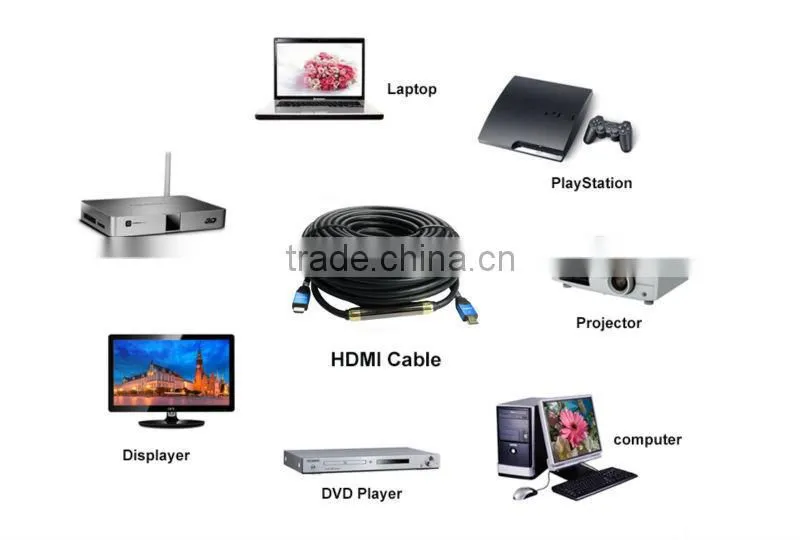

5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.
6, High density triple shielding for maximum rejection of EMI and RFI
7, Transfer speed: 18Gbps
8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance

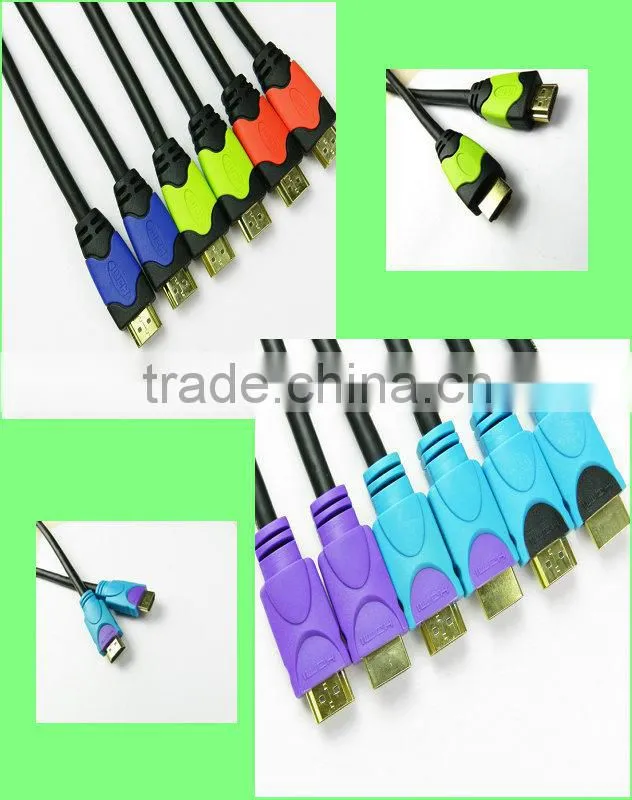

9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome
Electrical Features:
1)100% Open & Short Tests
2) Voltage / Hi-pot: DC 300v 10ms
3) Insulation Resistance: 10m ohm min
4) Contact Resistance: 3max
5.wire:30AWG*1P+D+FAM
6. Differential Impedance(Ω):100±10Ω(TDR)
7.Data transfer rate:10.2Gbps Max
8,Working Temperature: -25C-80C
choose us and trust us

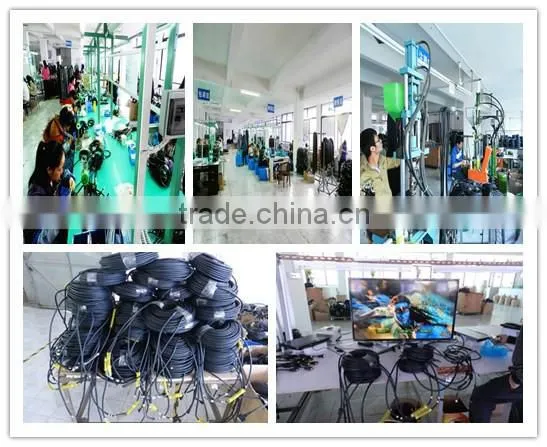

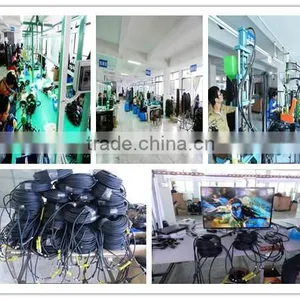

1.Supply one package service of R&Ddesign and production!
2.Professional marketing and shippong department to solve your question efficiently !
3.Best quality and auperior services for you !
Packaging:
1. Polybag,printed zip-lock bag or blister packaging are available for cable hdmi
2.According to customers
Shipping:
1.Normally we arrange shipment by air or by sea through your forwarder. If you have no forwarder, we can find cost-effective forwarder for your reference.tc.
2. If your order is not big enough.
Door To Door Service is a wise Choice, UPS, FEDEX, DHL, EMS,etc.
Packing pictures:
Question 1. How soon we can received the quotation ?
Reply: if all details and specification are provided by you , quotation can offerd within 8 hours,any urgent inquiry, pls call our hotline 0086 15918220890.
Question 2. Can you provide sample for evaluation?
Reply : Yes ,after quotation are confirmed , we can provide samll quantity sample . but express fee should paid by yourself.
Question 3. What is the minimum order quantity (MOQ) ?
Reply : Our MOQ is 100pcs per item
Question 4. What is your lead time ?
Reply : Our normal delivery time is 10-15 days,it depends on order quantity, if it is a top real urget order, we will try our best to do the priority for your order.
Question 5. What is your trade term?
Reply : FOB, CIF, EXW, DDU,DDP are all available , we are also able to help you to choose the cheapest and high efficient Transportation solutions
Question 6.What is the payment term:
Reply : For first time ,we onlyaccept T/T in deposit , after established stable and good business relationship, we accept L/C and open credit (OA) Paypal and westunion are also available .
Question 7. How long is the Product warranty ?
Reply : We guarantee our product for ONE years .
Question 8. Can you provide OEM& ODM service.
Reply : YES, no matter molding ,package or anything, our enginner team can make design according your idea, pls just let us know your idea.
