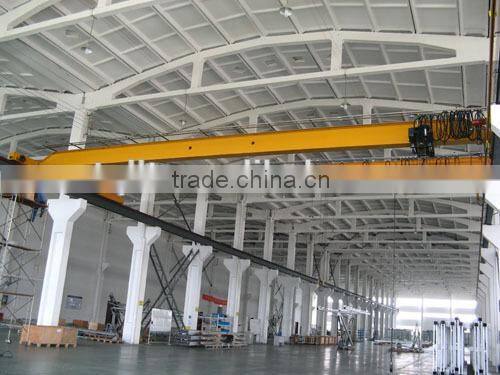

Single Beam Bridge Crane

Single Girder Overhead Crane

Single girder top running cranes utilized for medium to heavy fabrication.. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.

The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.

Lifting capacity: 3T-20T, Max. 80T

Span length: 7.5-32mtrs

Lifting height: 6-30mtrs

Temperature: -25°C~40 °C

Working duty: Class C or D

Power: AC 3Ph 380V 50Hz or according to client's requirement

Control mode: Cabin control/remote control/control panel with pendant line

Application areas:

widely used in plants, warehouses, material stocks to lift goods or materials. It is

prohibited to use the equipment in the combustible, explosive to

corrosives environment

Safety feature:

Weight overload protection device,

Crane traveling limit switch,

Voltage lower protection function,

Emergency stop system,

current overload protection system,

Top quality long time bearing polyurethane materials buffer...

Quality Control:

All cranes must be pre-assembled and tested before leaving factory and offer

the certification of test.
