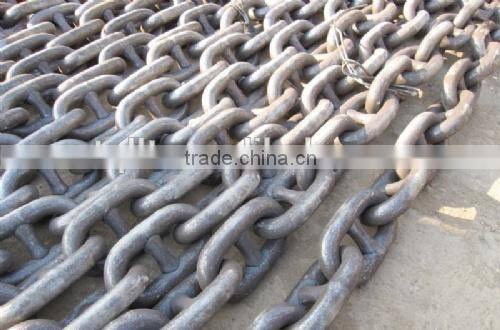

Anchor chain/steel chain/marine chain
1.Grade U2 and U3 stud and stud-less link anchor chains from size 12.5mm to 152mm.
Marine Anchor Chains
Mooring chains ORQ,R3,R3s and R4 with diameters ranging from 12.5mm to 152mm.
Following certificates can be supplied: CCS, LR, GL, ABS, DNV, BV,RS,RINA,KR.etc.
Accessories can be supplied such as kenter shackles, swivels, anchor shackle D type, etc
| Dia. (mm) |
Outside Length (mm) |
Outside Width (mm) |
U2 | U3 | Weight (KG/27.5M) |
||
| Proof Load (KN) |
Breaking Load (KN) |
Proof Load (KN) |
Breaking Load (KN) |
||||
| 16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 |
| 17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 |
| 19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 |
| 20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 |
| 22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 |
| 24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 |
| 26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 |
| 28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 |
| 30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 |
| 32 | 192 | 112 | 265.6 | 531.2 | 369.6 | 739.3 | 554.7 |
| 34 | 204 | 119 | 299.9 | 599.8 | 417.3 | 834.6 | 628.08 |
| 36 | 216 | 126 | 336.1 | 672.3 | 467.8 | 935.7 | 701.54 |
| 38 | 228 | 133 | 374.4 | 748.7 | 521.3 | 1042.5 | 781.92 |
| 40 | 240 | 140 | 414.5 | 829.1 | 577.6 | 1155.2 | 861.17 |
| 42 | 252 | 147 | 457.7 | 915.3 | 636.8 | 1273.6 | 950.94 |
| 44 | 264 | 154 | 502.7 | 999.6 | 698.9 | 1398 | 1053 |
| 46 | 276 | 161 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1142 |
| 48 | 288 | 168 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1245 |
| 50 | 300 | 175 | 648.8 | 1293.6 | 902.5 | 1805 | 1348.5 |
Plywood case,woven bag ,steel drum , ton bag /pallet
1). Good quality
We believe quality is the base of long-time business cooperation. so we have strictly quality control system to make sure our goods matching customer's standard. All the products will be strictly inspected before by SGS team.
2). Quick response
We think quick response to your question and all requirement is very very important for your business.
3). Competitive price
We have our own factory and long-term cooperating suppliers, that's why we can give the most competitive prices.
Shandong province Xintai City Qiangli Chain Co., Ltd was founded in 1998, has nearly 20 years of history. The
registered capital 5 billion RMB, is a professional company of production and sales cirque chain .
Our Company has strong technological power, complete testing equipment,and the domestic advanced level of
chain design development and process control means. Products are widely used in coal mine, cement,
Metallurgy, hoisting, ship, boiler slag, greening and other industries.
