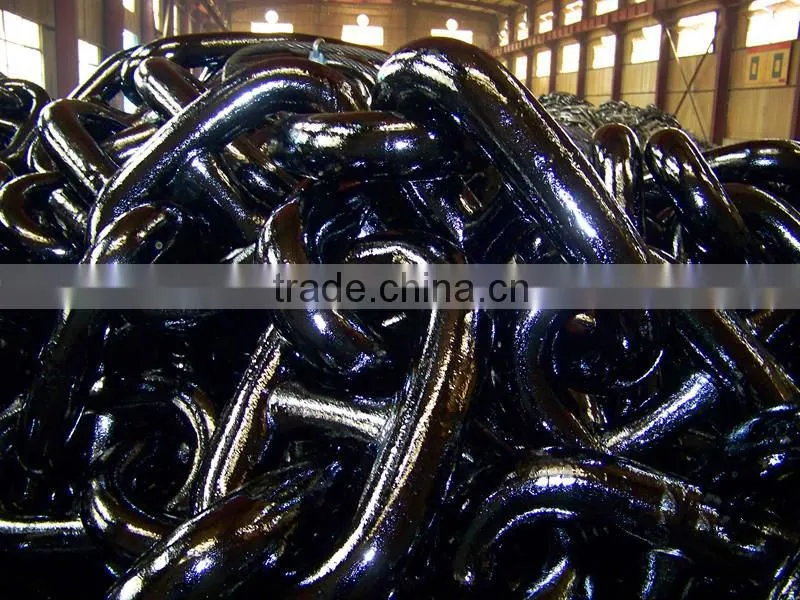

Welded studless anchor chain for ship
1.Standard length is 27.5m per piece,we also can produce according to your requirement .
2.Material: alloy steel, generally including CM390, SM490, CM690, or according to your requirement
3.Grade :U2&U3

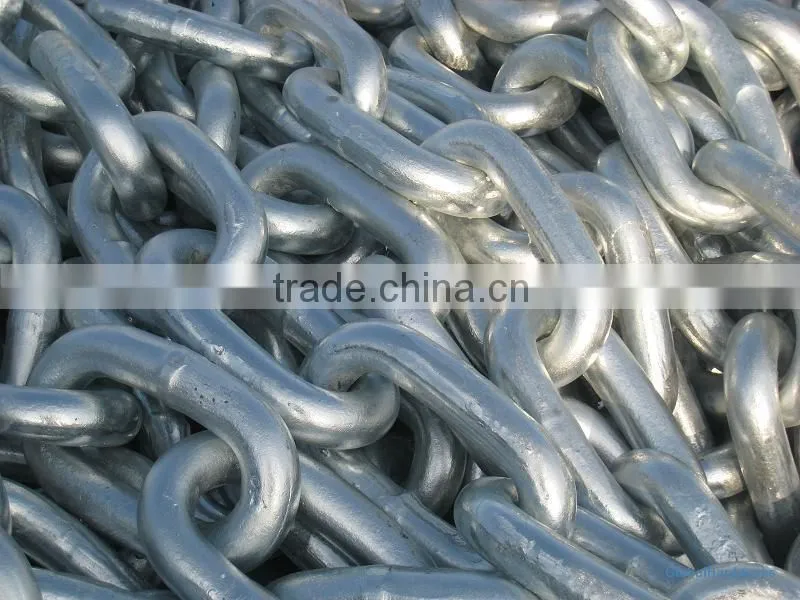

4.Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.
5.The tension beak load conforms to National Standard.
6. Studless anchor chains. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration
7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating treatment (8) Blind bolts (9) polishing (10) painting
Specification:
Welded studless link stainless steel anchor chain specification table:
| Dia. (mm) |
Outside Length (mm) |
Outside Width (mm) |
BM2 | BM3 | Weight (KG/27.5M) |
||
| Proof Load (KN) |
Breaking Load (KN) |
Proof Load (KN) |
Breaking Load (KN) |
||||
| 16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 |
| 17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 |
| 19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 |
| 20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 |
| 22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 |
| 24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 |
| 26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 |
| 28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 |
| 30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 |
| 32 | 192 | 112 | 265.6 | 531.2 | 369.6 | 739.3 | 554.7 |
| 34 | 204 | 119 | 299.9 | 599.8 | 417.3 | 834.6 | 628.08 |
| 36 | 216 | 126 | 336.1 | 672.3 | 467.8 | 935.7 | 701.54 |
| 38 | 228 | 133 | 374.4 | 748.7 | 521.3 | 1042.5 | 781.92 |
| 40 | 240 | 140 | 414.5 | 829.1 | 577.6 | 1155.2 | 861.17 |
| 42 | 252 | 147 | 457.7 | 915.3 | 636.8 | 1273.6 | 950.94 |
| 44 | 264 | 154 | 502.7 | 999.6 | 698.9 | 1398 | 1053 |
| 46 | 276 | 161 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1142 |
| 48 | 288 | 168 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1245 |
| 50 | 300 | 175 | 648.8 | 1293.6 | 902.5 | 1805 | 1348.5 |
Plywood case,woven bag ,steel drum , ton bag /pallet
1). Good quality
We believe quality is the base of long-time business cooperation. so we have strictly quality control system to make sure our goods matching customer's standard. All the products will be strictly inspected before by SGS team.
2). Quick response
We think quick response to your question and all requirement is very very important for your business.
3). Competitive price
We have our own factory and long-term cooperating suppliers, that's why we can give the most competitive prices.
Shandong province Xintai City Qiangli Chain Co., Ltd was founded in 1998, has nearly 20 years of history. The
registered capital 5 billion RMB, is a professional company of production and sales cirque chain .
Our Company has strong technological power, complete testing equipment,and the domestic advanced level of
chain design development and process control means. Products are widely used in coal mine, cement,
Metallurgy, hoisting, ship, boiler slag, greening and other industries.
