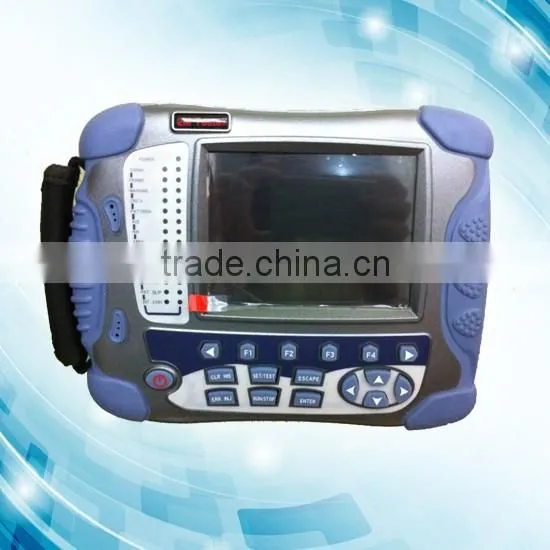

E1 tester 2M Transmission Analyzer E1 BER Tester 2M Data Tester
Always in stock!
Specifications
Item | Description | ||
2M | Internal Clock | 2048kb/s ± 10ppm | |
Frequency Deviation | ±999ppm | ||
Line Interface | 75Ω (Unbalanced), 120Ω (Balanced); High Input Impedance >2KW | ||
Line Code | HDB3, AMI | ||
Framing | Unframed, PCM30, PCM30CRC, PCM31, PCM31CRC | ||
Receive Sensitivity | > -43dB | ||
Tx Clock Source | Internal, Interface and External 2MHz clock or signal | ||
Pulse Mask Measurement | Comply with G.703 | ||
Jitter Measurement | Comply with O.172 | ||
Frequency Measurement | Accuracy: ±1Hz | ||
Offset Measurement | Accuracy: ±1ppm Range: -999ppm~+999ppm | ||
VF Injection | Frequency: 200Hz~3400Hz, Step: 10Hz | ||
Level: -60dBm~+3dBm | |||
VF Measurement | Frequency: 200Hz~3400Hz, Accuracy: ±1Hz | ||
Level range :-60.00dBm~+3.14dBm -60.00dBm~-21.00dBm, accuracy: ±2.87dBm -20.00dBm~+3.14dBm, accuracy: ±0.21dBm | |||
Delay Measurement | Accuracy: ±1μs | ||
G.703 CO | Line Rate | 64kb/s ± 100ppm | |
Line Interface | 120Ω, Balanced | ||
Line Code | AMI | ||
Datacom | Line Interfaces | V.24, V.35, V.36, X.21, RS-449, RS-485, EIA-530, EIA-530A | |
Data Rate | ASYNC | 300, 600bit/s, 1.2, 2.4, 4.8, 7.2, 9.6, 19.2, 38.4kb/s | |
SYNC | 300, 600bit/s, 1.2, 2.4, 4.8, 7.2, 9.6, 19.2, 38.4kb/s, N×64kb/s ( N=1~32),4M,8Mkb/s | ||
Test Patterns | PRBS | 223-1,220-1, 215-1, 211-1, 29-1,26-1 | |
Fixed Code | 1111, 0000, 1010 | ||
16-BIT | User Programmable Word | ||
LED Alarm Indicators | Signal Loss, AIS, Frame Loss, MFrame Loss, Pattern Loss, Remote Alarm, Error, Clock Slip. | ||
Error Injection | Type: BIT, FAS, CRC4, CODE, E-BIT | ||
Single, Fixed Rate : 10-2, 10-3, 10-4, 10-5, 10-6, 10-7 | |||
Performance Analysis | ITU-T G.821, G.826 and M.2100 | ||
Display | 320x240 pixel backlit monochromatic LCD | ||
Serial Port | RS-232C | ||
Rechargeable Batteries | 5×1.2V AA NiMH batteries, continuous working for 6 hours | ||
Recharge Time | Approx. 2 hours | ||
AC Power Adapter | Input: 100V~240VAC, 50/60Hz Output: 12VDC/1.5A | ||
TestManager Pro | WIN98/ME/NT/2000/XP | ||
Dimensions | L×W×H 200mm × 160mm × 45mm | ||
Operating Temperature | 0°C~50°C | ||
Storage Temperature | -20°C~70°C | ||
Humidity | 5%~95% non-condensing | ||

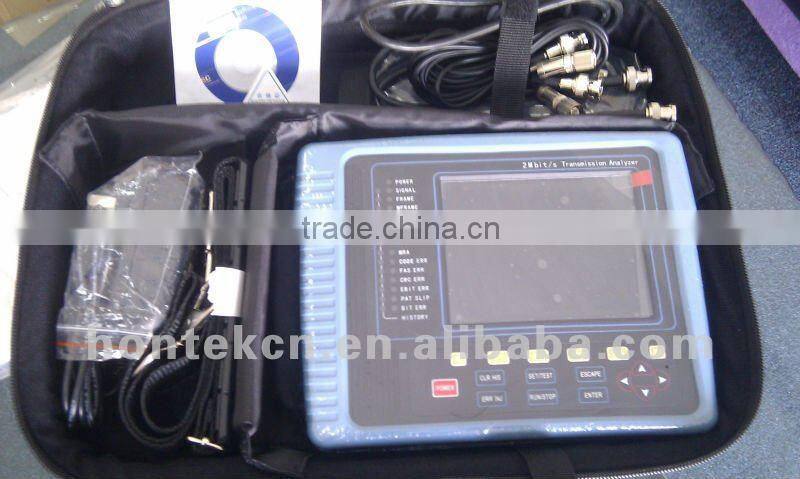

Includes:
1. Main unit 1 pc
2. BNC-BNC testing cable 1 pc
3. BNC-L9 testing cable(75Ω) 2 pcs
4. 120Ωtesting cable 1 pc
5. RS232 Serial Interface Cable 1 pc
6. USB to Serial Adapter 1 pc
7. Smart battery charger 1 pc
8. Top-grade waterproof carrying case 1 pc
9. PC management software CD 1 pc
10. Warranty card 1 pc
11. Product Qualified Certificate 1 pc
