Industrial Lighting LED High Bay Lighting, 150w LED High Bay & Low Bay Lighting
1.Specification for LED High Bay
Sinoco LED Highbay | |||||||
Mode No. | ST-21-30W | ST-21-40W | ST-21-60W | ST-21-67W | ST-21-90W | ST-21-120W | ST-21-150W |
Lamp Power | 30W | 40W | 60W | 67W | 90W | 120W | 150W |
Lumen | 3960lm | 5280lm | 7920lm | 8844lm | 13050lm | 17400lm | 21750lm |
Lumen Efficacy | 132LM/W | 132LM/W | 132LM/W | 132LM/W | 145LM/W | 145LM/W | 145LM/W |
Replace HPS/MV | ≥150W | ≥250W | ≥300W | ≥400W | ≥600W | ≥800W | ≥1000W |
LED Qty | 504 LEDs | 660 LEDs | 1008 LEDs | 1200 LEDs | 1504 LEDs | 2088 LEDs | 2400LEDs |
Size | Φ205 | Φ305 | Φ305 | Φ305 | Φ360 | Φ455 | Φ455 |
Net Weight | 1.3kg | 1.3kg | 1.9kg | 2.8kg | 3kg | 3.9kg | 4.3kg |
Light Source | Epistar DIP LEDs(180~200lm/w) | ||||||
CRI | >70 | ||||||
Driver | MeanWell driver (THD:≤15%) | ||||||
Power Factor | >0.95 | ||||||
Input Voltage | 85~265VAC, 50/60Hz | ||||||
Color Temp. | Warm White:3000-3500K Pure White: 5300-5800K Cool White: >7000K | ||||||
Beam Angle | 120°/90°/60°/45°(can be Customized) | ||||||
Lifespan | >50000 hours | ||||||
Operating Temp. | -30 to 65 degree | ||||||
Material | Die Cast, Extruded Aluminum | ||||||
Warranty | 3-5 years | ||||||
Certificates | FCC PSE CE RoHS | ||||||
2.Features for LED High Bay
1) Patented,unique design,simple and generous appearance
2) Multiple aluminum heat dissipation for good heat conduction
3) High brightness,applied luminous efficiency 145lm/w,it is twice brightness in the same industry.
4) It’s just 3% lumens depreciate after continuously working for 6000hours,lifespan > 100,000hours
5) It works normally at higher temperature 25°C than ambient temperature(working temperature is from -35°C~60°C
6) Save more than 87% power compared with traditional HPS lamp.
7) Wide application in highway,square, Park,street .etc.
8) We have successfully completed many cases in USA,Japan,Germany,Mexico,Australia etc.

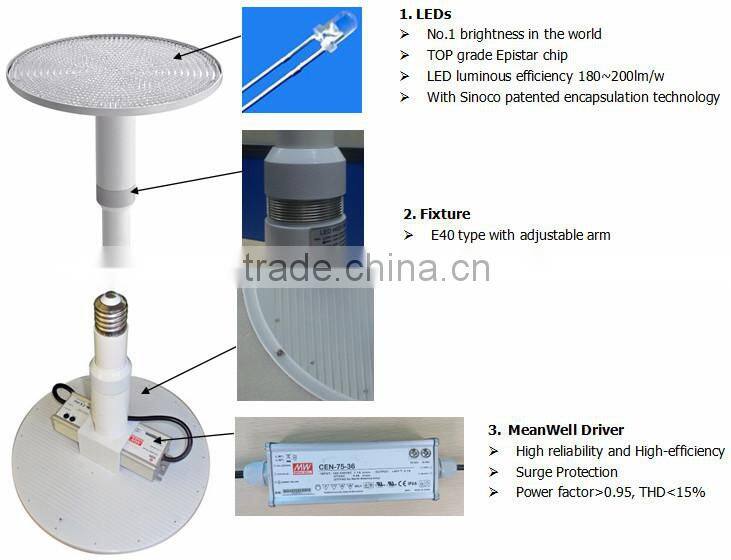

3.Product Details for LED High Bay

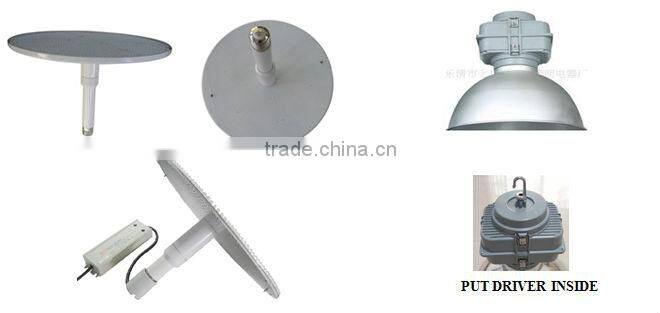

4.Different Types for LED High Bay

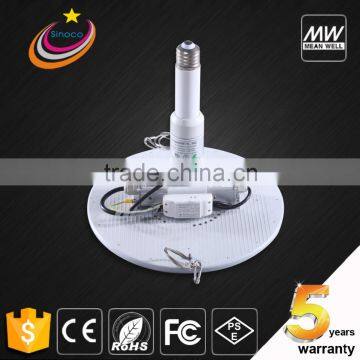

Type 1: Sinoco LED Highbay Light with External driver(E40 Socket)
Type 2: Sinoco LED Highbay Light with Internal driver(E40 Socket)

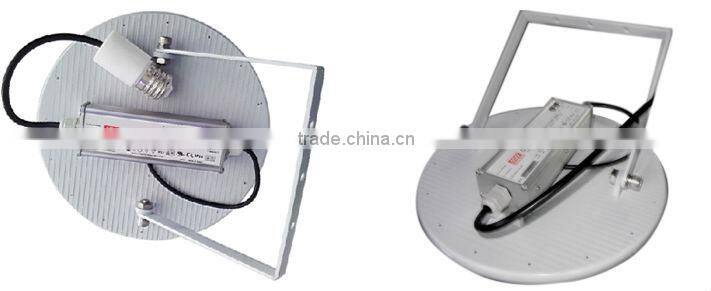

Type 3: Sinoco U Bracket LED Highbay Light

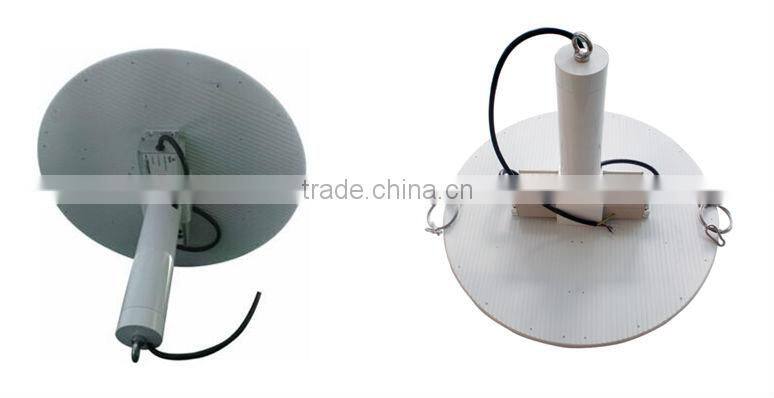

Type 4: Sinoco Cast Mounting Hook LED Highbay
5.Packing Information for LED High Bay
Model | packaging unit | Dimensions | Gross weight |
ST-21-30W /UB | 2pcs/ carton | L370mm*W270mm*H260mm | 4.1kg/carton |
ST-21-40W /UB | 2pcs/ carton | L470mm*W380mm*H360mm | 5.2kg/carton |
ST-21-60W /UB | 2pcs/ carton | L480mm*W380mm*H380mm | 7.2kg/carton |
ST-21-90W /UB | 2pcs/ carton | L540mm*W460mm*H380mm | 9.4kg/carton |
ST-21-120W/UB | 2pcs/ carton | L640mm*W570mm*H460mm | 10.3kg/carton |
ST-21-150W/UB | 2pcs/carton | L640mm*W570mm*H460mm | 11kg/carton |
Delievery:7~20 working days after your business order was confirmed.
6.Shippment for LED High Bay
1.We provide express ways( DHL, UPS, FEDEX, TNT,EMS, etc) or by sea, or by air, all ways are avaliable.
2. For the freight, u can choose ship from our factory directly or use your own forwarder, both are OK.
3. We will choose cheap and good service shipping company for you.
4.Pls tell us your exact shipping address and contact telephone before we arrange products shippment.
7.Waranty:
1. Limited Warranty. Sinoco warrants that all products will i) be free from defects in material and workmanship under normal use and service and ii) comply with the specifications for a period of 5 years.
2. Repairs during the Warranty Period. During the warranty period, Sinoco will at its option and at its expense (i) replace such defective products, (ii) fix and repair such defective products. When such defective product is identified, buyer should inform Sinoco about it and ship it back to Sinoco. Sinoco will ship replacement product or repaired product to buyer as soon as possible.
3. Repair after Warranty. After the warranty period has expired, if needed, Sinoco will continue to provide repair services for the product, but buyer should pay for parts and labor for repair services
4. Limitation on Warranty. Sinoco’s warranty does not cover the cost of any services required for the replacement of defective product with good product at site of installation. Sinoco has no obligation under the warranty in the following circumstances: The defect is a result of misuse, neglect, accident, improper installation, acts of God, or use not in accordance with a) the specifications, b) the instructions contained in the technical documentation.
8.RFQ
1. Payment:T/T or Western Union in advance or 30% deposit, 70% balance before shippment(for big order).; or L/C at sight.
2. Delivery time :100-500pieces:15days; 500-1000pieces:20days.
3. Samples can be delivered in 7working days.
4. Freight are quoted under your requests.
5.Shipping Port: shenzhen, China(Mainland).
6. Discounts are offered depend on quantities.
Company Information
Shenzhen Sinoco Lighting Technologies Co.,Ltd is located in Shenzhen ,China.Our main products are LED street light,LED high bay light,LED flood/tunnel light,LED garden light,LED tube,LED bulb etc, with CUL,PSE,CE,RoHs certificate,for both indoor and outdoor us
