HSV-600 OTDR price equal to EXFO Max 715B
1310/1550nm
Nancy Liu
Skype: nancy.hsv
WhatsApp: +8615118174252

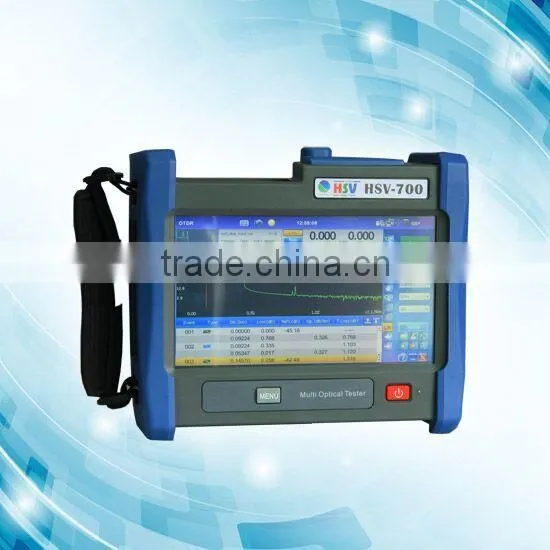

* HSV-600 series are high performance and accessiblity OTDRs created by Hong Kong Honserv
Limitied with U.S. technology.
* 7-inch, outdoor enhanced touch screen for you to get visual GUI.
Handy, lightweight, powerful, 12-hour atonomy----unprecedented testing experience is very
suitable for fiber optic test environment.
* HSV-600 series have outstanding optical performance, exquisite appearance, accurate and
stable internal parameters.
* It is the first choice of every fiber optic project company.
HSV-600 Specifications | |||||
Model |
HSV-610 |
HSV-620 |
HSV-630 |
HSV-630A |
HSV-640 |
|
Wavelength(nm)
|
1310/1550nm |
1310/1550nm |
1310/1550nm |
1310/1550/1625nm |
1310/1550nm |
Wavelength Accuracy (nm) |
± 20 nm |
||||
Dynamic (dB) |
30/28dB |
34/32dB |
37/35dB |
37/35/35dB |
40/38dB |
Event Dead Zone (m) |
1.5 |
1 |
0.8 |
0.8 |
0.8 |
Atten. Dead Zone (m) |
6 |
5 |
4 |
4 |
4 |
Pulse width(ns) |
5ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1µs, 2µs, 5µs, 10µs, 20µs |
||||
Distance range (km) |
100m, 400m ,1.5km, 3km, 6km, 12km, 25km, 50km, 100km ,200km, 400km |
||||
Distance Accuracy (m) |
0.1(HSV810/HSV820),0.5(HSV830/HSV840/HSV850) |
||||
Sampling Points |
128000 |
256000 |
|||
Distance Accuracy (m) |
±(0.75m+0.005% x distance + sampling resolution) |
±(0.75m+0.001% x distance + sampling resolution) |
|||
Power meter |
Calibrated Wavelength:1310nm/1550nm working wavelength:850nm/980nm/1300nm/1310nm/1490nm/1610nm Dynamic:-70dB~+10dB,±0,17dB accuracy |
||||
Display |
7 in (178 mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
||||
Interfaces |
Two USB 2.0 ports RJ-45x1, LAN ,10/100 Mbit/s,Macro SDx1 |
||||
Storage |
8 GB internal memory (80 000 OTDR traces), 8 GB SD card (80 000 OTDR traces) |
||||
Battery Life |
7.4 v,5300mAh lithium battery pack,39.22Wh supports 8 hrs, continuous (at max charge) |
||||
Power supply |
Power supply AC/DC adapter, AC input 100-240 V, 50-60 Hz, DC out 12V,1.5A |
||||
Applicable environment |
Operating temperature range:-10℃—+50℃ Relative humidity:-40℃—+70℃ |
||||
Dimensions (WxHxD) |
196*172*72mm |
||||
Weight(including battery) |
<1.5kg |
||||
Language |
Chinese, English, Spanish,Russian,Italian,Portuguese,(option for French, Russian, German, Korean & Arabic) |
||||
1. FUSION SPLICER: COMWAY C10/C8; Sumitomo (T-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A; INNO IFS 10 2.OTDR: EXFO (FTB-1/FTB-2pro/ FTB-200/FTB-500); JDSU (Smart/ MTS-2000/4000/6000/8000); YOKOGAWA (AQ7280)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
