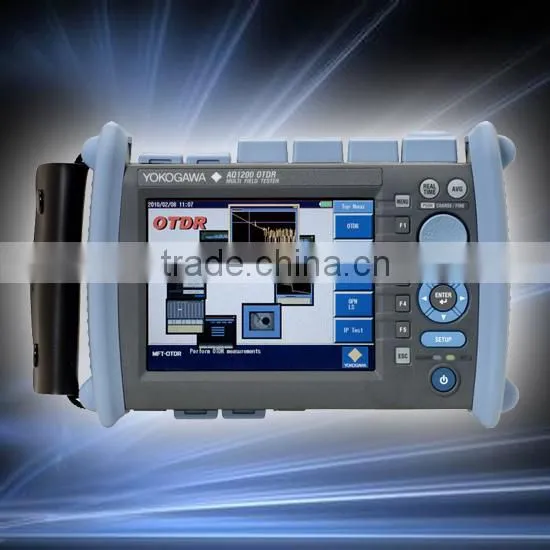

YOKOGAWA OTDR AQ1200A /aq7275/ Aq7280 OTDR PRICEUS$ 3,200 - 3,400MOQ: 1 Set
-
OTDR EXFO OTDR FTB-1 WITH FTB-720-23B SM OTDR PRICEUS$ 1 - 4,400MOQ: 1 Set

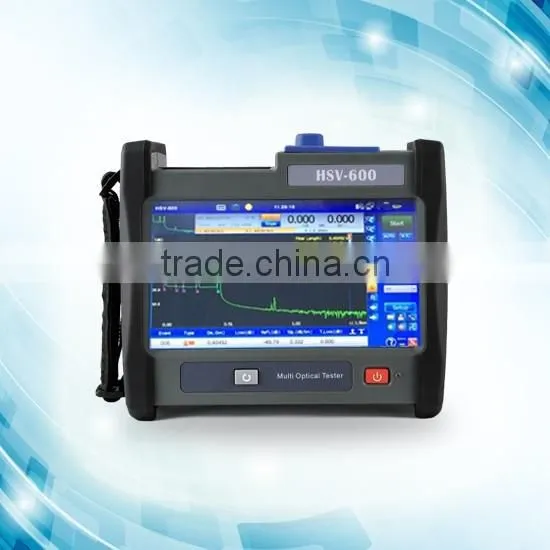

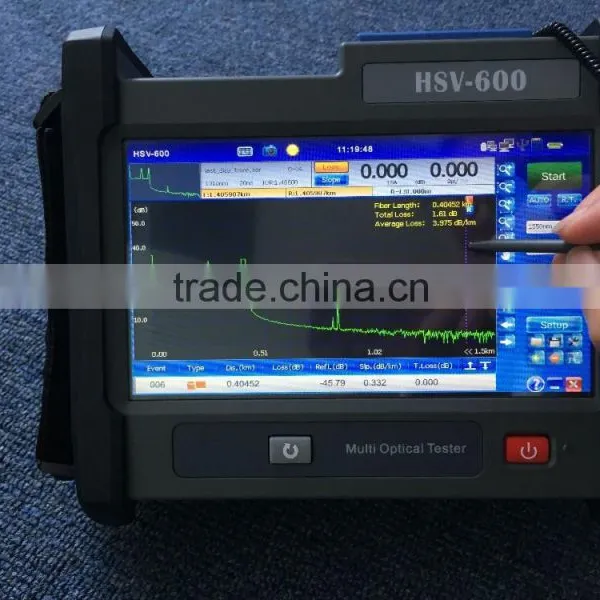

OTDR, Touch Screen,HSV-600 OTDR Equal to EXFO MAX-710B,MAX-715B,JDSU MTS-2000 Fiber Optic OTDR
HSV-700 series is a new generation handheld OTDR, which launched by Hong Kong Honserv Ltd according to the tablet inspired design.
HSV-700 series is idea for short and middle range fiber testing. It has excellent optical performance that can make sure the test precision; it also has optional functions like VFL, power meter, fiber interface detection.
Product introduction
Key Feature
* 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience)
* Handy, lightweight, fully functional, tablet-inspired design
* Excellent optical performance: Event dead zone: minimum 1m;
Attenuation dead zone: minimum 5m
* Dynamic range: 28dB-34dB
* Resolution with the shortest distance:5 cm
* 12-hour operating time
* Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe
APPLICATIONS:
* FTTH network construction, deployment, maintenance, certification
* LAN fiber network construction, deployment, maintenance, certification
* Metro optical network construction, deployment, maintenance, certification
Model |
HSV-610 |
HSV-620 |
wavelength(nm) |
1310nm±20nm;1550nm±20nm;1625nm±20nm |
|
Dynamic range(dB) |
30/28 |
34/32/31 |
Event dead zone(m) |
2 |
1 |
Attenuation dead zone(m) |
10 |
5 |
Pulse width |
5ns 10 ns 30 ns 50 ns 100 ns 200 ns 500 ns 1µs 2µs 5µs 10µs 20µs |
|
Distance range |
100m 400m 1.5km 3km 6km 12km 25km 50km 100km 200km 400km |
|
Sampling resolution (m) |
0.1~12.8 |
0.05~12.8 |
Sampling points |
Maximum 64000 |
|
Group refractive index setting |
1.30000~1.70000 |
|
Distance uncertainty(m) |
±(0.75m+0.005%×distance + sampling resolution) |
|
Linearity(dB) |
0.05 |
|
Loss threshold(dB) |
0.01dB |
|
Loss resolution (dB) |
0.001 dB |
|
Reflector precision |
±2 dB |
|
Measurement time |
5s~5min, real time |
|
real-time refresh rate |
4 times/s |
|
LCD Display |
7in (178mm),800×480 TFT outdoor-enhanced LCD,touch screen |
|
Interfaces |
USB2.0 x 1, USB power supply DC5V ±0.05V@500mA RJ45 x 1, LAN, 10M/100M Macro SD x 1, support maximum 64 GB |
|
storage |
1 1GB internal memory(support10000pcs OTDR curve) 8GB SD card(support 80000pcs OTDR curve) |
|
battery |
7.4V 5300mAh Li-ion battery pack, 39.22Wh support maximum 12 hours of operation |
|
power dissipation |
<3W |
|
Power supply |
AC/DC adapter: input 100-240V 50~60Hz, output 12V 1.5A total power: 18 W |
|
|
Connector Interface
|
Interface: UPC (standard), APC (option) Connector Interface: PC (standard), SC/ST/LC (options) Connector Interface and adapters must be specified upon ordering |
|
