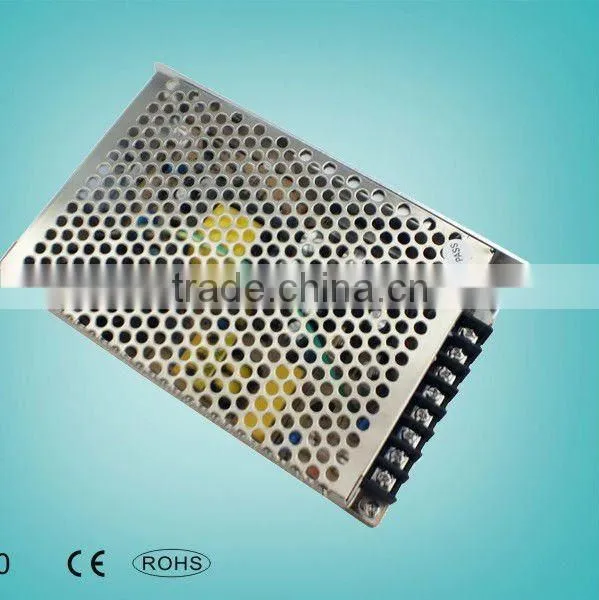

120W Quad Output Voltage Switching Power Supply

120W Quad Output Voltage Switching Power Supply thumbnail-1
120W Quad Output Voltage Switching Power Supply photo-1
US$ 35 - 36 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMSP-023
Contact Supplier Request Quote Chat Now
Shenzhen Inloom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ILM
Model Number ILMSP-023
Output Power 51 - 100W
Output Type Quad
Input Voltage Other, 110V-240VAC
Output Voltage 5/12/-5/-12VDC 5/12/-5/-12VDC
Output Frequency 50/60HZ
Output Current 11A 4A 1A 1A/ 10A 3.5A 1A 1A

Specifications

120W quad output voltage switching power supply
1.Certification:UL SAA PSE FCC CE C-tick GS TUV
2.120W quad output

1. 3 years warranty
2. 85~264VAC full range of input or input select by switch
3. Low cost, High operating reliability at high temperature
4. Forced air cooling by built in DC fan
5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections
Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
6. LED indicator for power on
7. 100% burn-in tests (at full load)
8. Built-in cooling Fan ON-OFF control
9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.
10.Life span: greater than 50000hrs
11.MTBF:greater than 250Khrs
12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
13.Working temperature: -10~60°C











Model ILM-120F-1 ILM-120F-2 ILM-120F-3
Rated DC Output 5V 12V -5V -12V 5V 15V -5V -15V 5V 12V 24V -12V
Rated Current 11A 4A 1A 1A 10A 3.5A 1A 1A 8A 2A 2A 1A
Rated Power 120W 122W 124W
Input Voltage Full range (90-265) or selected by switch
(90-132VAC, 170-264VAC)
Over-load protection 150% (Fold back current limiting, recover
automatically after problems removal)
Over-VoltageProtection 130% (Hiccup mode, recovers automatically after
faulty problems removal
Efficiency 77% 76% 80%
Life Span 50000hrs
MTBF 250Khrs
Withstand Voltage I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG:500VAC
Working-Temperature -10~60°C
Vibration 10-500Hz, 2G 10min./1cycle, period for 60min,
each along x, y, z axes.
Size (L*W*H) 199*110*50mm
Packing 0.86Kg/pcs, 22pcs/CTN
