Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Single Output Switching Power Supply 350W

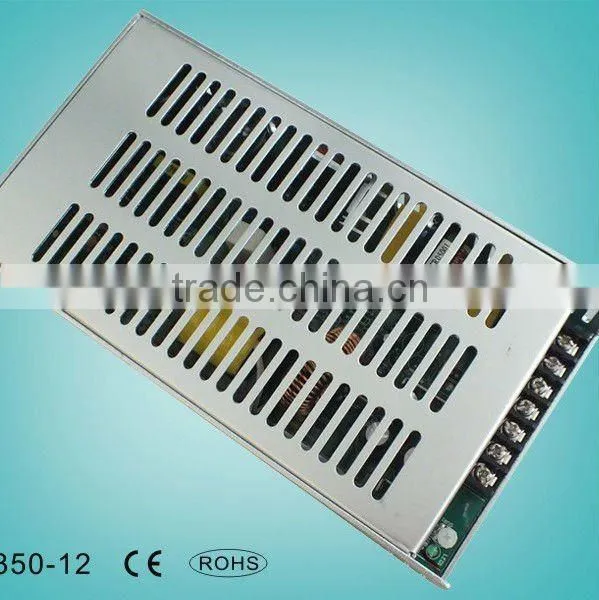

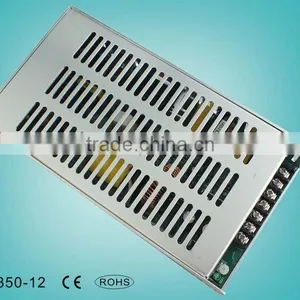

Single Output Switching Power Supply 350W

US$ 29 - 30 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ILM

Model Number:

ILMSP-014

Contact Supplier Request Quote Chat Now

Shenzhen Inloom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ILM

Model Number ILMSP-014

Output Power 301 - 400W

Output Type Single

Input Voltage Other, 110V-240VAC

Output Voltage 5/7.5/13.5/15/24/48VDC

Output Frequency 50/60HZ

Output Current 29/25.8/23.2/14.6/7.45A

Specifications

350W switching power supply
1.Certification:UL SAA PSE FCC CE C-tick GS TUV
2.350W output
3.size:215*115*50mm

1. 3 years warranty

2. 85~264VAC full range of input or input select by switch

3. Low cost, High operating reliability at high temperature

4. Forced air cooling by built in DC fan

5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections

Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)

Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)

6. LED indicator for power on

7. 100% burn-in tests (at full load)

8. Built-in cooling Fan ON-OFF control

9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.

10.Life span: greater than 50000hrs

11.MTBF:greater than 250Khrs

12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC

13.Working temperature: -10~60°C

Model	ILM-12	ILM-13.5	ILM-15	ILM-24	ILM-48
Rated output	12VDC/29A	13.5VDC/25.8A	15VDC/23.2A	24VDC/14.6A	48VDC/7.45A
Rated power	348W	348W	348W	358W	358W
Efficiency	76%	79%	81%	81%	83%
