Good quality 60w gas station led canopy explosion proof lights
Technical Specification: |
Sinoco Gas Station LED Canopy Light | ||||
Mode No. | ST-GS-40W | ST-GS-60W | ST-GS-90W | ST-GS-120W |
Lamp Power | 40W | 60W | 90W | 120W |
Lumen | 5200lm | 7800lm | 11700lm | 15600lm |
Lumen Efficacy | 130LM/W | |||
Replace HPS | ≥250W | ≥400W | ≥600W | ≥1000W |
Light Source(Epistar) | 660 DIP LEDs | 1080 DIP LEDs | 1512 DIP LEDs | 1764 DIP LEDs |
Net Weight | 4.3kg | 4.3kg | 5.0kg | 6.3kg |
CRI | >70 | |||
Driver | MeanWell driver (THD:≤15%) | |||
Power Factor | >0.95 | |||
Input Voltage | 100~240VAC, 90~300VAC, 50/60Hz | |||
Color Temp. | Warm White:3000-3500K Pure White: 6500+/-300K Cool White: >7000K | |||
Beam Angle | 120°/90°/60°/45°/30° | |||
Lifespan | >50000 hours | |||
Operating Temp. | -30 to 65 degree | |||
Housing & Lens | Die Cast, Extruded Aluminum and clear acrylic | |||
Warranty | 5 years | |||
Certificates | CE RoHS PSE FCC | |||
Features and Advantages: |
v Sinoco Patent Designed Product
v High Efficiency and Energy Saving
Using Top Grade Epistar LEDs with Luminous Efficiency >180lm/W

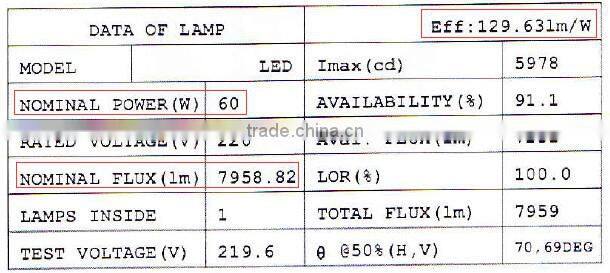

Lamp’s Luminous Efficiency is 125-135lm/W, as shown in the IES file below:
That means Sinoco Gas Station LED canopy light is 87% Energy-saving compared with traditional HPS lamps. Double Energy-saving compared with other suppliers. It is very cost-effective in your electric bill.
v Low Lumen Decay

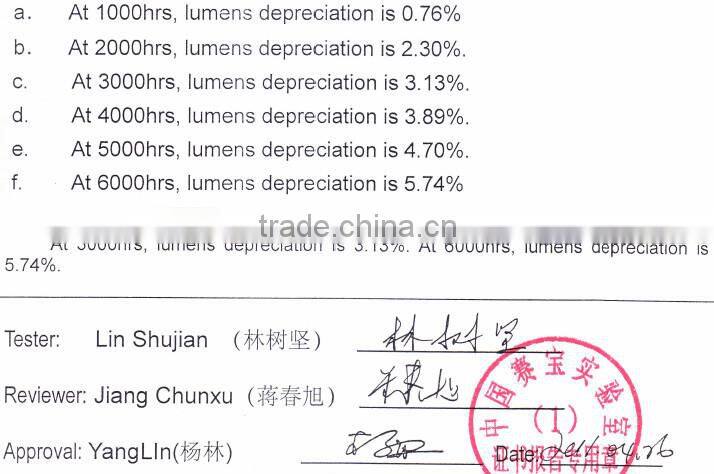

The lumen depreciation of our light is 5.74% after 6000hrs continuous test.
That means if the light is turned on 10hrs a day, 6000hrs means 1.6 years, so the lifespan is over 10 years.
The following is our LM79 testing report:
v High Light Uniformity
Uniform source of light, with low URG and no Glare.
v Optimal heat dissipation and Long lifespan
Sinoco led highbay light is designed with optimal heat dissipation for the following reasons:
a) The temperature of light body is very low.
b) We use the best Epistar DIP LEDs, the pins of the LEDs dissipate heat well.
c) Extruded Aluminum housing is used for better heat dissipation.
The optimal heat dissipation ensures long lifespan(>50,000hrs) and low lumen depreciation.
v Design Flexibility
Choice of symmetrical, symmetrical shine, asymmetrical and asymmetrical shine distributions to accommodate gas station forecourts of different sizes.
Detailed Product Show: |

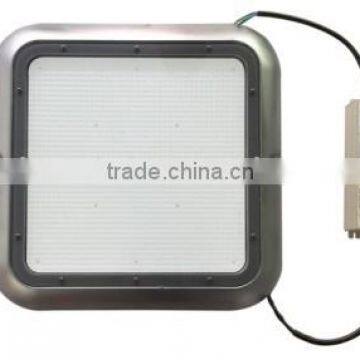

1. Pictures of Sinoco Gas Station LED Canopy Light:

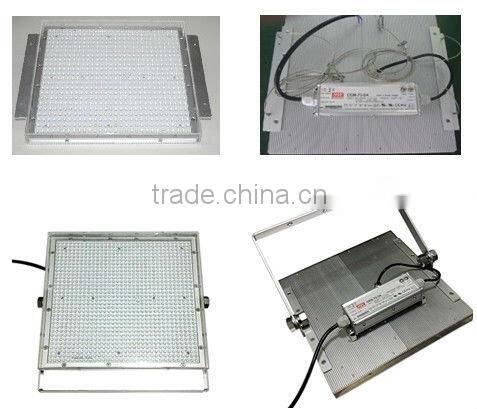

1) Sinoco Gas Station LED Canopy Light Series V1:

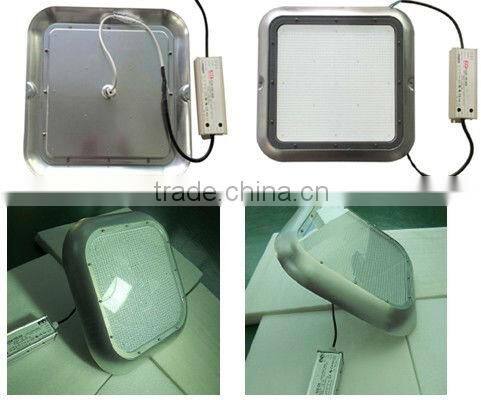

2) Sinoco Gas Station LED Canopy Light Series V2:

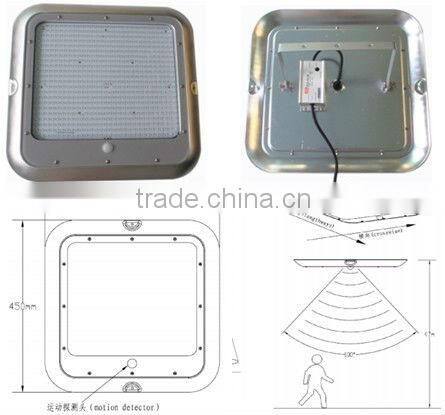

3) Sinoco Gas Station LED Canopy Light Series V3 ( Motion Detection & Dimmable)
2. Technical Data of Sinoco Gas Station LED Canopy Light :

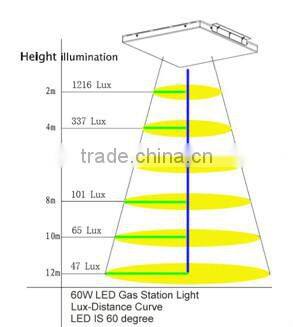

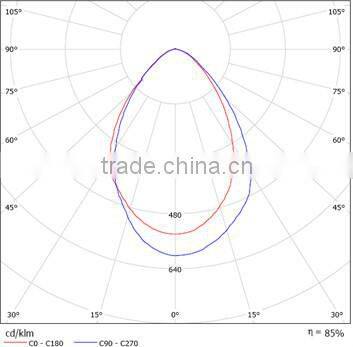

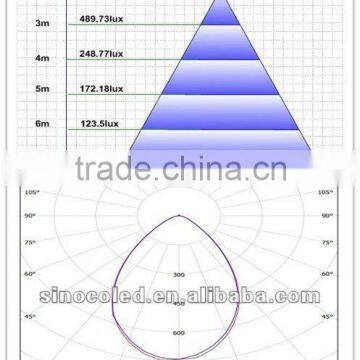

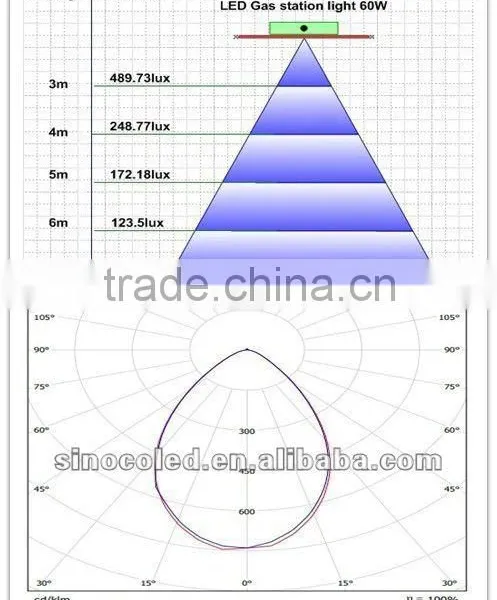

1) Photometric data: 2) Lux-Distance Curve:

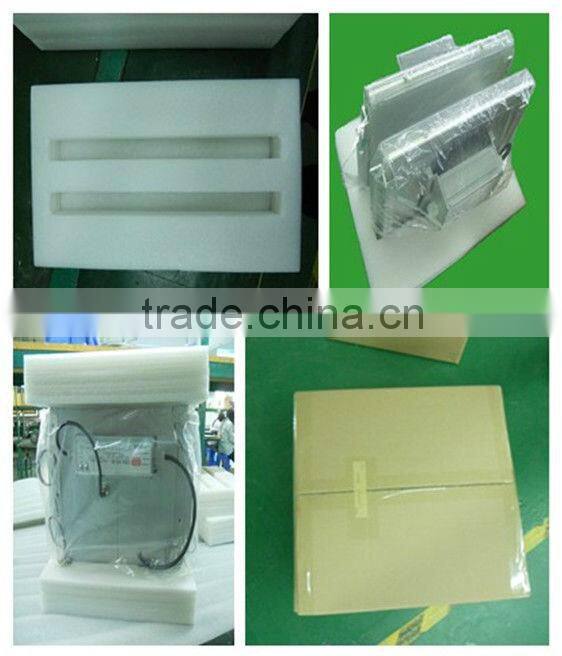

3. Packaging of Sinoco LED Canopy Light :
Packing details: Lamp+inside bubble pad+export carton + PVC tie up
4. Aging Test of Sinoco LED Canopy Light:
Application: |
Sinoco Gas Station LED Canopy Light has been widely used in gas station all around the world, our bussiness partners include BP, COOP, PEMEX, Shell ect.

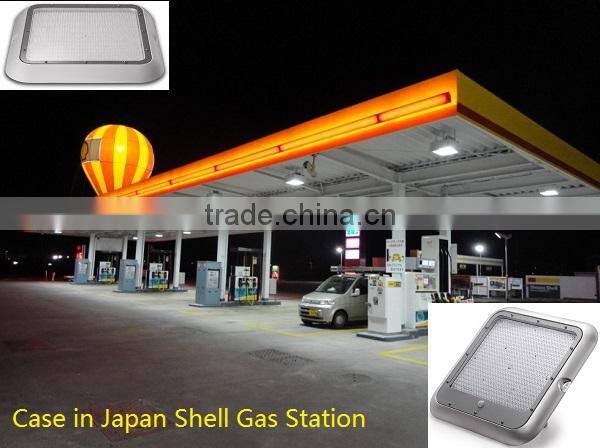

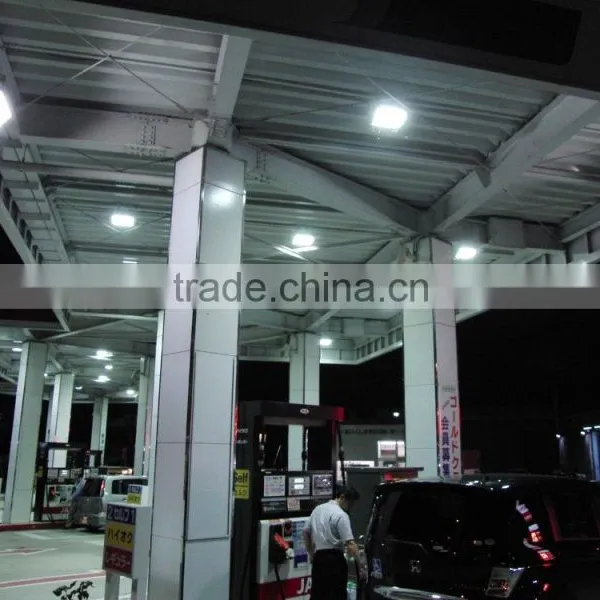

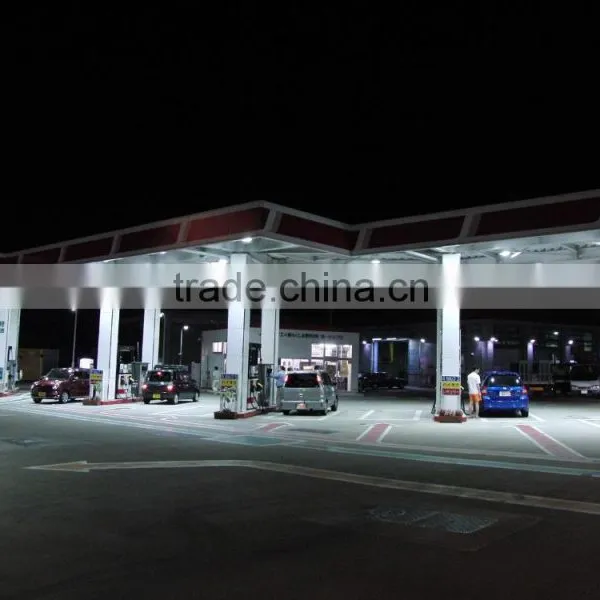

1) Sinoco Gas Station LED Canopy Light used in Japan Shell gas station
2) Sinoco Gas Station LED Canopy Light used in Mexico PEMEX gas station

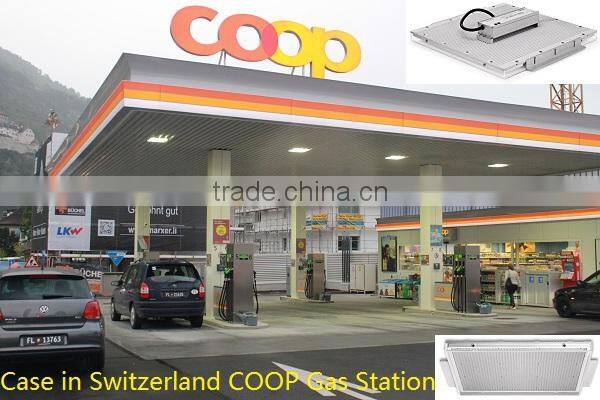

3) Sinoco Gas Station LED Canopy Light used in Switzerland COOP gas station
4) Sinoco Gas Station LED Canopy Light used in Switzerland BP gas station
Lighting typically represents 30% of a commercial building’s electricity bill, even more in gas stations. If an excellent retrofit lighting plan is designed for your complete gas station, your gas station could be operated with lower energy costs and better lighting.
Choose Sinoco, Let’s make it possible. Twenty-Four Hour Gas Station / Convenience Store.
Warranty and Maintenance |
1.Warranty: 5 years, since the date of purchase.
2.Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,
we will provide free new products based on the proof-documents.
3.If failure or damage due to incorrect operation, wire connection, or anything other do not follow
our instuction.We will provide paid maintance within warranty period.
Shipping Instruction |
1. UPS/DHL/EMS/FEDEX/TNT and so on express(door to door);
2. By air; Pls choose your shipping method according your detail requirement;
3. The shipping discount is different in different season and depend different weight; we will choose the cheapest and safest way according your detail quantities;
4. Normally, it will take around 3-7days from China to densination country. Pls noted that some remote place will need more around 1-3days.
Our Service |
1.Your inquiry related to our products or prices will be replied in 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized lighings we can help you to design and put into product.
4.Distributers are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
About us |
Shenzhen Sinoco Lighting Technologies Co.,Ltd is located in Shenzhen, China. Our main products are LED street light, LED high bay light, LED flood/tunnel light, LED garden light, LED tube, LED bulb etc, with CUL PSE CE RoHS certificates, for both indoor and outdoor use. Our business partners include Puma energy, BP, Shell, Coop, PEMEX, Volvo, Chint ect.
If any further questions, please feel free to contact us.
