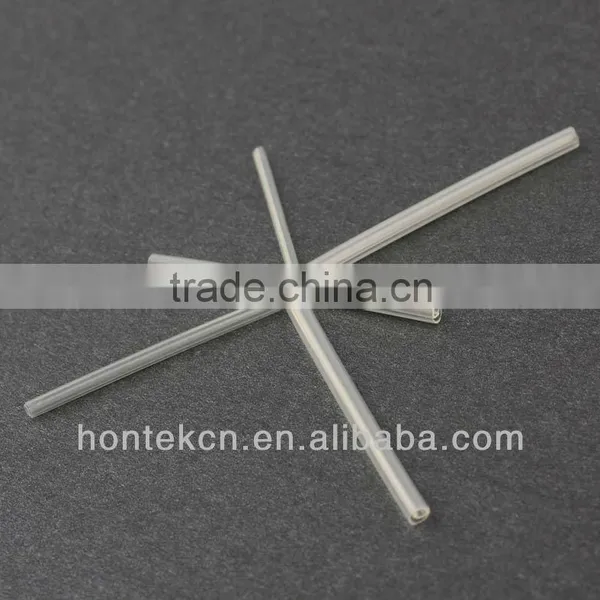

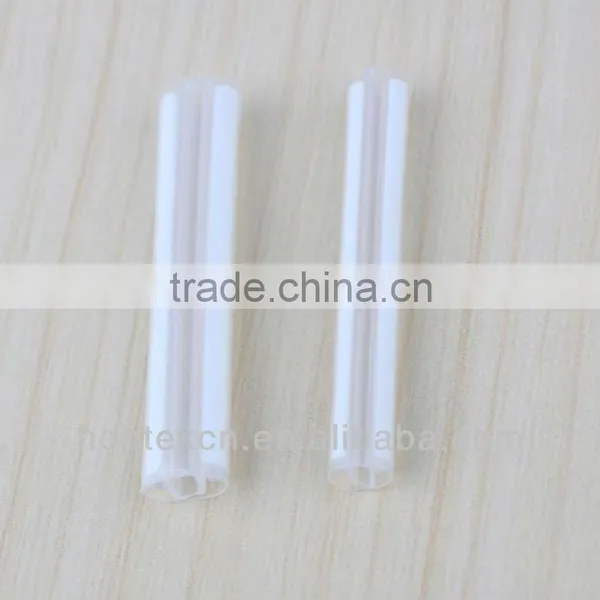

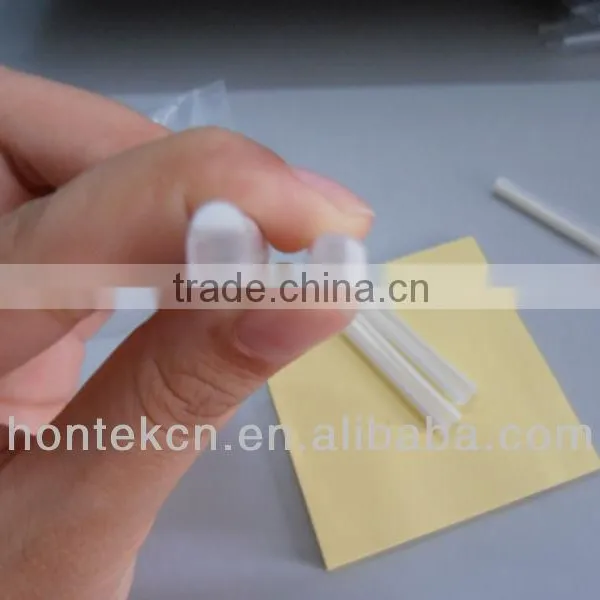

high quality Heat Shrinkable Fiber Optic Splice Protector
Fax: 0086-755-33503470
Skype:kitty.hsv
Features
Consist of cross-linked polyolefin, hot fusion tubing and stainless reinforced steel rod
Keep optical transmission performance of optical fiber
Provide safe protection to optical fiber splicing
Easily use and avoid any damage to the optical fiber during installation
Clear sleeve makes it easy to detect splice before shrinkage
Sealing structure provides good performance to the splicing in the environment with temperature and humidity
Operating Temperature :
-45 – 100 °C
Shrinking Temperature Range:
90 - 110 °C
Packing :
100 Pcs/Bag
Technical Data :
Properties |
Test Method |
Typical Data |
Tensile Strength(MPa) |
ASTM D 2671 |
18 |
Ultimate Elongation(%) |
ASTM D 2671 |
700 |
Density(g/cm2) |
ISO R1183D |
0.94 |
Dielectric Strength (KV/mm) |
IEC 243 |
20 |
Dielectric Constant |
IEC 243 |
2.5 |
Longitudinal Change(%) |
ASTM D 2671 |
+5 |
Dimension :
PN |
Steel Rod |
Fusion Tube |
Heat Shrink Tube |
Device |
||
O.D. |
Length |
I.D. |
Length |
Length |
O.D. (after shrink) |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
|
APD-450501
|
0.5*45mm |
45±1 |
0.5±0.1 |
45±1 |
45±1 |
1.6±0.1 |
APD-450801 |
0.8*45mm |
45±1 |
1.1±0.1 |
45±1 |
45±1 |
2.0±0.1 |
APD-451001 |
1.0*45mm |
45±1 |
1.1±0.1 |
45±1 |
45±1 |
2.3±0.1 |
APD-451201 |
1.2*45mm |
45±1 |
1.3±0.1 |
45±1 |
45±1 |
2.5±0.1 |
