Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 300W(12V/24V/36V/48VDC) Waterproof Constant Voltage LED Driver, LED Switching Power Supply

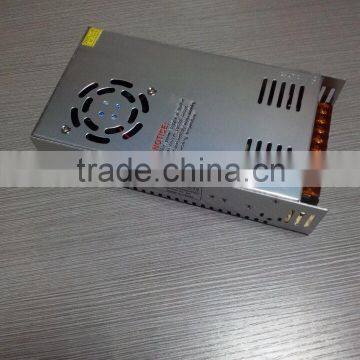

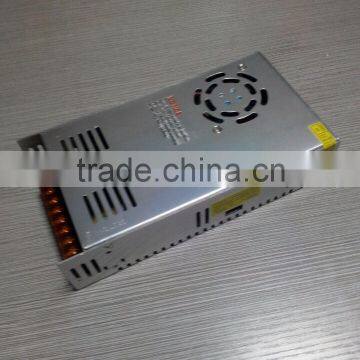

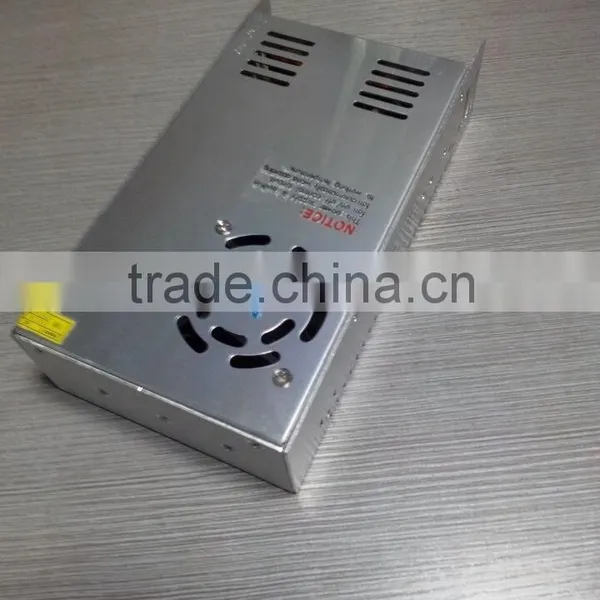

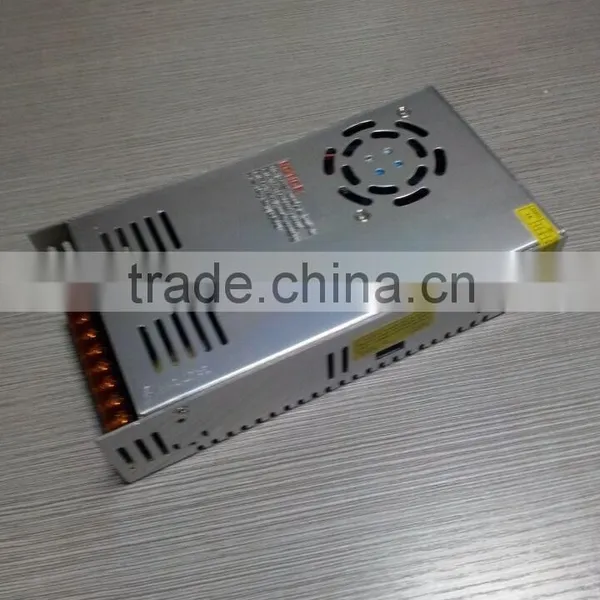

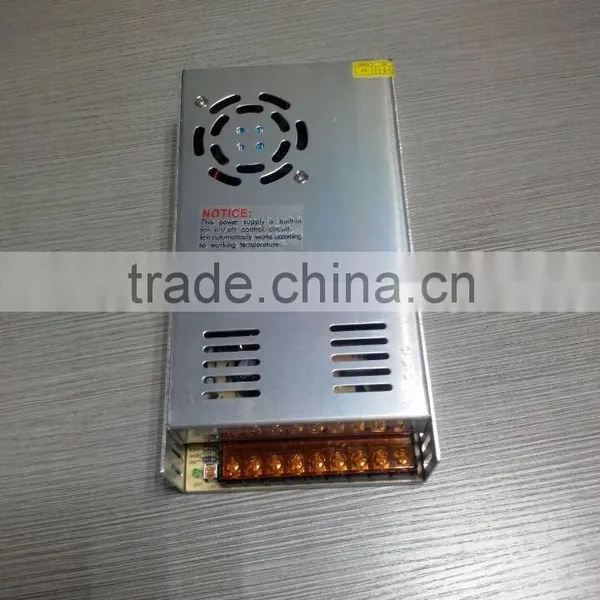

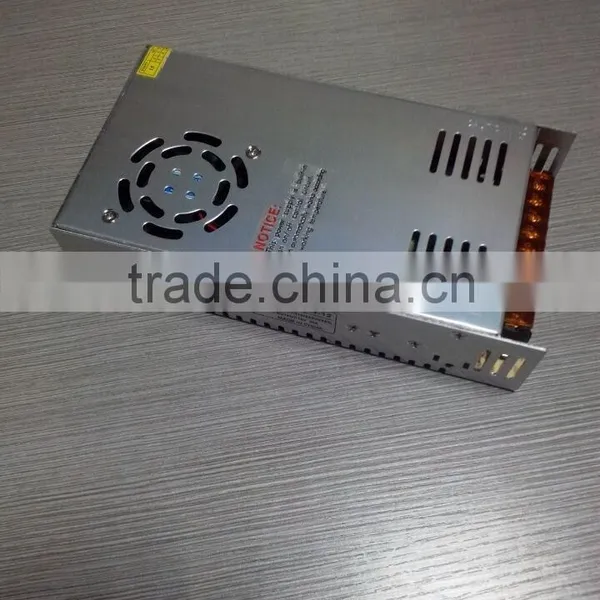

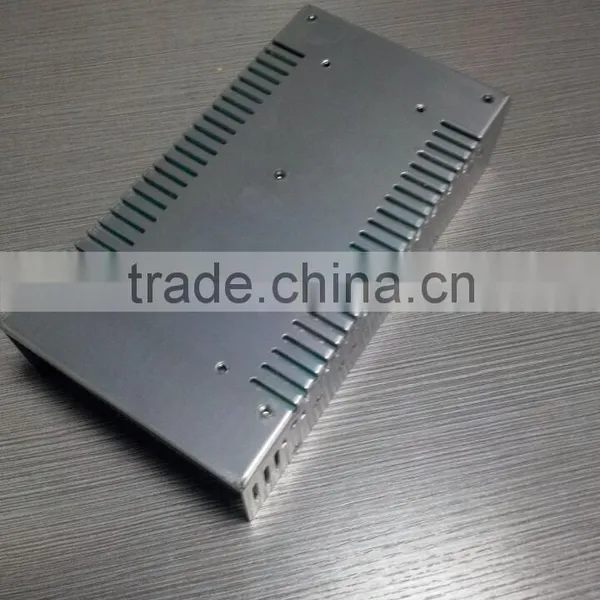

300W(12V/24V/36V/48VDC) Waterproof Constant Voltage LED Driver, LED Switching Power Supply
US$ 15 - 20
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMCVP-030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Constant Voltage LED Driver, LED Switching Power Supply 60W(5/10/15/20/25VDC)US$ 4.5 - 16MOQ: 10 Pieces -
PFC>0.98 IP67 30W(12/24VDC) Constant Voltage Waterproof LED Driver, LED Switching Power SupplyUS$ 2 - 3MOQ: 1000 Pieces
-
Hot Selling Waterproof Constant Current LED Driver 600mA 30WUS$ 5 - 7MOQ: 1 Piece
-
Factory Price 35w Constant Current Waterproof LEDdriver Most Popular Made in ChinaUS$ 3.5 - 10MOQ: 1 Piece
-
DC 9V-18V Input To12V500mA Output Constant Voltage Power SupplyUS$ 2 - 6MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
ILM
Model Number
ILMCVP-030
Output Power
201 - 300W
Output Type
Multiple
Input Voltage
Other, 90-250VAC
Output Voltage
12-54VDC
Output Frequency
50/60HZ
Output Current
30A
1. 5 years warranty
2. High efficiency 91% 3. Active PFC≥(0.95)
4. EMC standards
5. Full range 100~250VAC
6. Protections: SCP, OPP, OVP, OTP
7. IP67 design for indoor and outdoor applications
8. 100% burn-in tests , full-round tests
9. Rated output can be customized
Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED flood lights, LED high bay light,…etc
Parameter CE, RoHS, IP67
Model |
ILM-360-12 |
ILM-360-24 |
ILM-360-36 |
ILM-360-48 |
ILM-360-54 |
DC Voltage |
12VDC |
24VDC |
36VDC |
48VDC |
54VDC |
DC Current |
30A |
15A |
10A |
7.5A |
6.67A |
Rated Power |
300W |
300W |
300W |
300W |
300W |
Input Voltage |
90~130VAC / 170~250VAC / 100~250VAC |
||||
Over Voltage Protection |
130% |
||||
Over Power Protection |
130% |
||||
Active PFC |
0.95 |
||||
EMC |
EN55015: 2007 / EN61547: 1995+A1: 2000 / EN61000-3-2, EN61000-3-3: 2008 |
||||
Efficiency |
88% |
89% |
90% |
91.5% |
92% |
Life Span |
50000hrs |
||||
MTBF |
250Khrs |
||||
Withstand Voltage |
I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC |
||||
Working Temperature |
-35~+70°C |
||||
Size |
220*95*53mm |
||||
Packing |
1.15Kg/pcs, 15pcs/CTN |
||||
