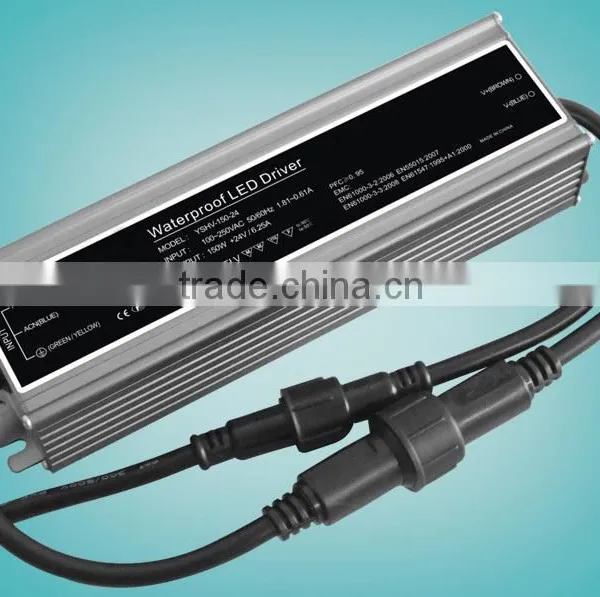

250W Waterproof Constant Current LED Driver, LED Switching Power Supply
US$ 12 - 15
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILM-LCC034
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250W(12V/24V/36V/48VDC) Waterproof Constant Voltage LED Driver, LED Switching Power SupplyUS$ 15 - 18MOQ: 1000 Pieces -
Waterproof LED Driver (constant Current) 10W(300/600/700mA)US$ 2 - 4MOQ: 1000 Pieces
-
10W(12/24VDC) Constant Voltage Waterproof LED Driver, LED Switching Power SupplyUS$ 2 - 3MOQ: 1000 Pieces
-
50W Dimmable LED DriverUS$ 5 - 7MOQ: 1000 Pieces
-
200W Waterproof Constant Voltage LED Driver, LED Switching Power Supply(12V/24V/36V/48VDC)US$ 11 - 15.5MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
ILM
Model Number
ILM-LCC034
Output Power
201 - 300W
Output Type
Single
Input Voltage
Other, 90-250VAC
Output Voltage
12~85VDC
Output Frequency
50/60HZ
Output Current
5A-25A
Specifications
1.5 years warranty2.High efficiency(over 91%)
3.Active PFC (over 0.95)
4.EMC standards
5.Full input AC range:100~250VAC
1. Universal AV input with full range: 100VAC~250VAC
2.Built-in active PFC fuction, PFC≥0.95
3.Comply with IP67, EMC standard
4.Fully encapsulated aluminum housing, suitable for wet, dry, damp locations
5.Protection: Over voltage, Over load, Over temperature, Short circuit
6.High efficiency (87%~88%)
7.Compliant to worldwide safety regulations for lighting
8.Long life span: 50000hrs
9.100% burn-in tests (at full load), full-round tests.
10. 3 years warranty
11. Rated output can be customized
Model |
ILMLCC-250 |
DC Current |
5A-25A |
DC Voltage |
12~85VDC |
Rated Power |
250W |
Input Voltage |
90~130VAC / 170~250VAC / 100~250VAC |
Over Voltage Protection |
130% |
Over Power Protection |
130% |
Active PFC |
0.95 |
EMC |
EN55015: 2007 / EN61547: 1995+A1: 2000 / EN61000-3-2, EN61000-3-3: 2008 |
Efficiency |
89% |
Life Span |
68000hrs |
MTBF |
250Khrs |
Withstand Voltage |
I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC |
Working Temperature |
-35~+70°C |
Size |
236*95*53mm |
Packing |
2.6Kg/pcs, 15pcs/CTN |
.Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED panel lights, LED ceiling lights, moving sign application, etc
