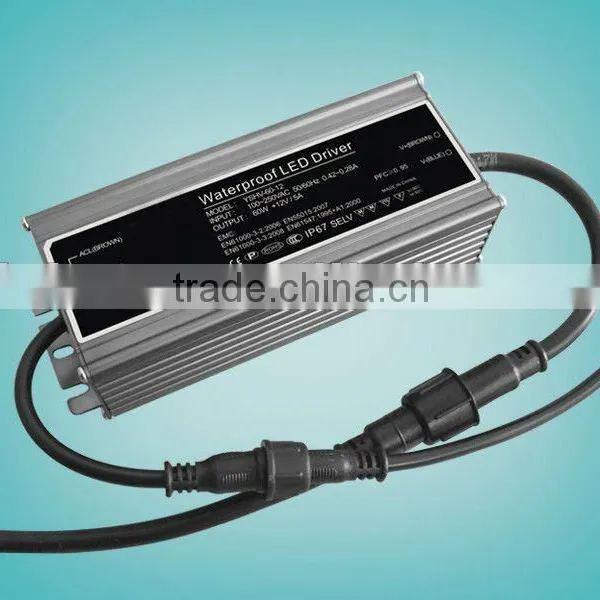

Waterproof LED Driver (constant Voltage) 60W(12/24/36/48VDC)

Waterproof LED Driver (constant Voltage) 60W(12/24/36/48VDC) thumbnail-1
Waterproof LED Driver (constant Voltage) 60W(12/24/36/48VDC) photo-1
US$ 27 - 28 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMCVP-010
Contact Supplier Request Quote Chat Now
Shenzhen Inloom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ILM
Model Number ILMCVP-010
Output Power 51 - 100W
Output Type Single
Input Voltage Other, 90-250VAC
Output Voltage 12-48VDC
Output Frequency 50/60HZ
Output Current 5/2.5/1.67/1.25A

Specifications

1. 3 years warranty
2. High efficiency 91%
3. Active PFC (over 0.95)
4. EMC standards
5. Full range 100~250VAC

1. 3 years warranty
2. High efficiency 91%
3. Active PFC≥(0.95)
4. EMC standards
5. Full range 100~250VAC
6. Protections: SCP, OPP, OVP, OTP
7. IP67 design for indoor and outdoor applications
8. 100% burn-in tests , full-round tests
9. Rated output can be customized
Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED flood lights, LED high bay light,…etc
Parameter CE, RoHS, IP67
Model
ILMCVP-60-12
ILMCVP-60-24
ILMCVP-60-36
ILMCVP-60-48
DC Voltage
12VDC
24VDC
36VDC
48VDC
DC Current
5A
2.5A
1.67A
1.25A
Rated Power
60W,
60W
60W
60W
Input Voltage
90~130VAC / 170~250VAC / 100~250VAC
Over Voltage Protection
130%
Over Power Protection
130%
Active PFC
0.95
EMC
EN55015: 2007 / EN61547: 1995+A1: 2000 / EN61000-3-2, EN61000-3-3: 2008
Efficiency
87%
89%
90%
91%
Life Span
50000hrs
MTBF
250Khrs
Withstand Voltage
I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
Working Temperature
-35~+70°C
Size
174*64*45mm
Packing
0.85Kg/pcs, 18pcs/CTN
Model
ILM-60-12
ILM-600-24
ILM-200-36
ILM-200-48
ILM-200-54
DC Voltage
12VDC
24VDC
36VDC
48VDC
54VDC
DC Current
16.7A
8.3A
5.6A
4.2A
3.7A
Rated Power
200W
200W
200W
200W
200W
Input Voltage
90~130VAC / 170~250VAC / 100~250VAC
Over Voltage Protection
130%
Over Power Protection
130%
Active PFC
0.95
EMC
EN55015: 2007 / EN61547: 1995+A1: 2000 / EN61000-3-2, EN61000-3-3: 2008
Efficiency
88%
89%
90%
91.5%
92%
Life Span
50000hrs
MTBF
250Khrs
Withstand Voltage
I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
Working Temperature
-35~+70°C
Size
236*64*45mm
Packing
1.15Kg/pcs, 15pcs/CTN
