Fujikura ADC-18 AC Adapter Use for Fujikura BTR-09 Battery Pack for Fujikura FSM-80S FSM-70R Quality Choice

Fujikura ADC-18 AC Adapter Use for Fujikura BTR-09 Battery Pack for Fujikura FSM-80S FSM-70R Quality Choice thumbnail-1
Fujikura ADC-18 AC Adapter Use for Fujikura BTR-09 Battery Pack for Fujikura FSM-80S FSM-70R Quality Choice photo-1
US$ 300 - 350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Fujikura
Model Number:
ADC-18
Contact Supplier Request Quote Chat Now
Shenzhen Hontek Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Japan
Brand Name Fujikura
Model Number ADC-18

Fujikura ADC-18 AC Adapter use for Fujikura BTR-09 battery pack for Fujikura FSM-80S FSM-70R



Contact information
Mobile: 0086-13823128817

Tel:+86-755-36934393

Fax: 0086-755-33503470

Website:  www..hk

Skype: kitty.hsv







Fujikura ADC-18 AC Adapter use for Fujikura BTR-09 battery pack for Fujikura FSM-80S FSM-70R







Specifications

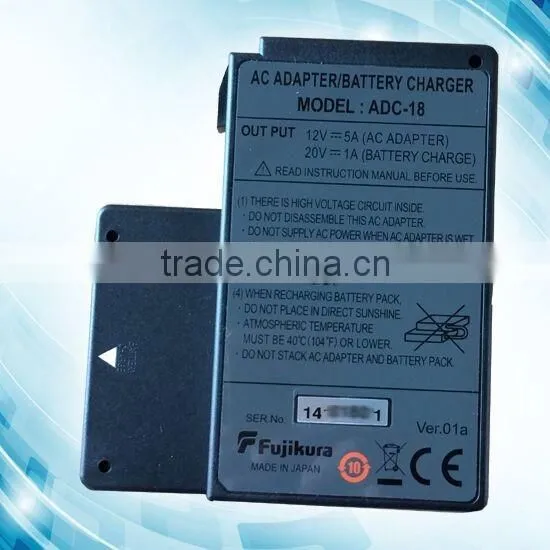

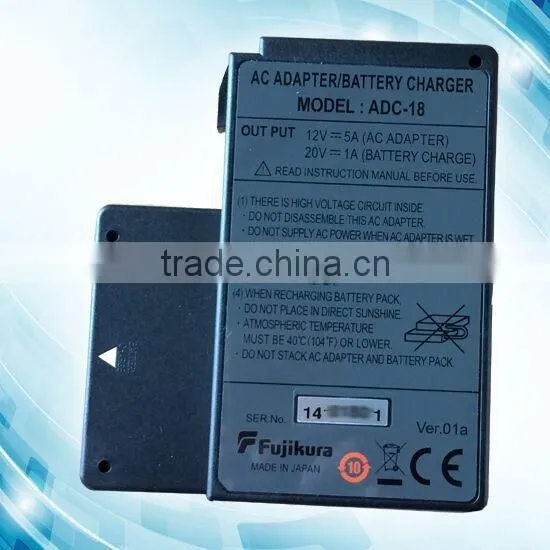

Product Description of Fujikura ADC-18 adaptor:

Model : ADC-18

Type : Fujikura 70s/80s/70r adaptor / battery charger

Output  : 12V 5A adaptor

Output  : 20V 1A battery charger

Application : FSM-80S , FSM-70S  FSM-70R   adaptor / battery charger

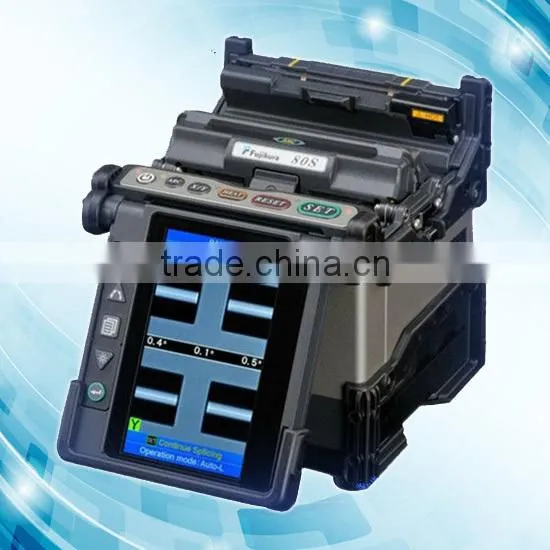

Fujikura FSM-80S

Fujikura ADC-18 AC Adapter use for Fujikura BTR-09 battery pack for Fujikura FSM-80S FSM-70R



Features

• Automated and programmable wind protector

• 14-second automated tube heater

• Fully ruggedized for shock, dust and moisture

• Li-Ion battery with 200 splices/shrinks per charge

• 5 mm cleave length for splice on connector or small package  needs

• Sheath clamp or fiber holder operation

• On-board training and support videos

• Internet software upgrades

• Multi-function transit case with integrated workstation






 Specifications



PARAMETER

VALUE

Applicable Fibers

Singlemode (G.652 & G.657), Multimode (G.651), DS (G.653), NZDS

(G.655)

Cladding Diameter

80 μm to 150 μm

Coating Diameter

100 μm to 1,000 μm

Fiber Cleave Length

5 to 16 mm

Typical Average Splice Loss

0.02 dB with SM, 0.01 dB with MM, 0.04 dB with DS, 0.04 dB with

NZDS, measured by cut-back method relevant to ITU-T and IEC

standards

Splicing Time

SM FAST mode — 7 seconds; SM AUTO mode — 12 seconds;

AUTO mode — 15 seconds

Arc Calibration Method

Automatic, real-time and by using results of previous splice when in

AUTO mode, manual arc calibration function available

Splicing Modes

100 preset and user programmable modes

Splice Loss Estimate

Based upon dual camera core alignment data

Storage of Splice Result

Last 2,000 results to be stored in the internal memory

Fiber Display

X or Y, or both X and Y simultaneously. Front or rear monitor display

options with automated image orientation

Magnification

300X for single X or Y view, or 160X for X and Y view

Viewing Method

Dual cameras with 4.73 inch TFT color LCD monitor

Operating Condition

0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C respe









Fujikura FSM-70R





 Fujikura ADC-18 AC Adapter use for Fujikura BTR-09 battery pack for Fujikura FSM-80S FSM-70R
