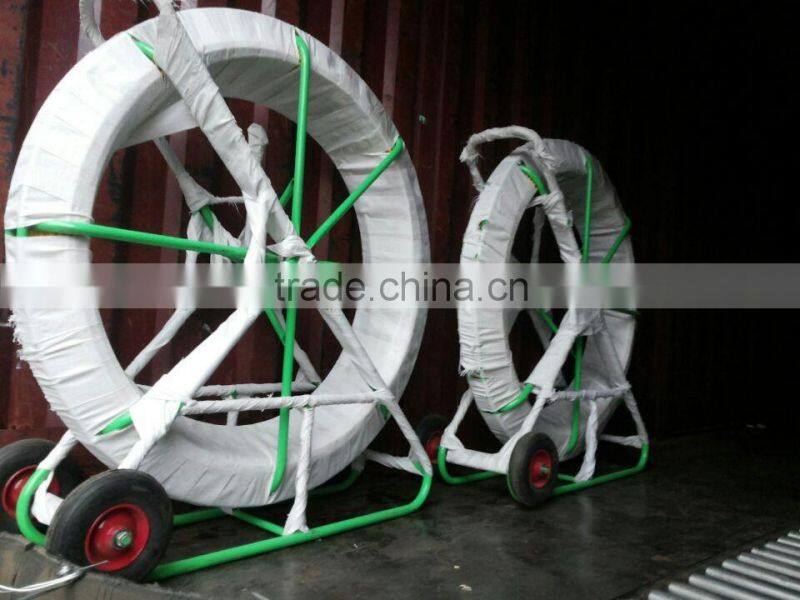

Supply Series Of Fiberglass Conduit Snake Supplier,Professional Fiberglass Cable Duct Rod
Nancy Liu
whatsapp / Viber / Tel : +86 15118174252
skype: nancy.hsv

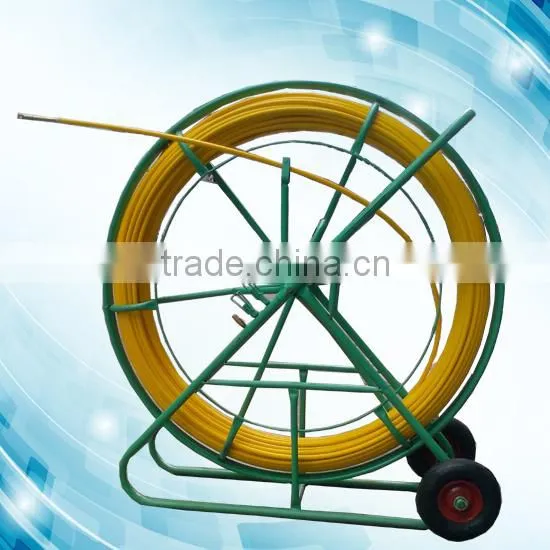

Glass fibre cable rod technical specifications:
Glass fiber rod diameter |
Φ4.5-16mm |
Length |
1-500m |
Working temperature |
-40+80 |
Min Bend Radius |
295mm |
Breaking tension |
4.5T |
Glassfiber density |
150g/m |
nstructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
2.Excellent flexibility force.
3.Tensile strength about 500 Kgf.
4.designed for heavy duty applications ensuring greater rigidity and strength, while supporting additional forces without resentment to the multiple curvatures.
5.Wheel assembly for easy transportation.
6.Guide rollers and the right parts for rotary coupling.
7.Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
8. There is copper wire inside for tracing easily.
Technical data of fibre glass cable rod:
1. Glass reinforced composite core:
general properties
| Property | value |
| keinforcement | E-glass fiber |
| glass content of inner part | 75-80% |
| material of pulling rod | epoxy fiber glass(inner) high density polyethylene(outer) |
| density | >1.9gr/cm3 |
| diameter tolerance | +/-0.10mm |
| work situation temperature | -40°C to +80°C |
Mechanical preperties
| property | value |
| minimum pullling strength | 4000 N+/-5% |
| tensile modulus | >30000Mpa |
| consistency of rod | 150gr/m +/-5% |
| flexural modulus | >30000M pa |
| elongation at break | 2.5-3% |
2. Polyethylene cover
Material:
Medium density polyethylene resin for the insulating and jacketing of telecommunications cables.
| property | value |
| tensile strength | >15N/mm2 |
| environmental stress & crack resistance | >1000 hr. |
| heat stability | OK. |
| carbon black | OK. |
1. FUSION SPLICER: Comway C10; Sumitomo (T-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A; INNO IFS 10 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
