Help CenterBlue Packaging Steel Strapping
Related Products
Specifications
black paint steel strapping1.Min750Mpa
2.elongation:Min3%
3.oscillated
re:406mm...
Specifications
Blue steel strapping ,steel strapping ribbon wound
1) Size: 0.36 - 1.2mm * 9.5 - 50mm
2) Tensile stregnth : 650MPa -850Mpa
Blue Tempered Steel strapping is made from ordinary carbon structured or high quality carbon structured steel via cold-rolls, electric heat and blue.
Specification
1) Thickness: 0.36 - 1.2mm
2) Width: 9.5 - 50mm
3) Tensile stregnth : 650MPa -950MPa
4) Finish: Blue/painted/zinc
5) Surface waxed/oiled, and edges deburred
6) Standard: AISI,ASTM,BS,DIN,GB,JIB
7) Steel grades: Q195,Q235,345B,20MnSi
specifications:(thickness X width)
BWG28X3/8", 1/2", 5/8" (0.36MMX9.5MM, 12.7MM, 16MM)
BWG27X3/8", 1/2", 5/8" (0.40MMX9.5MM, 12.7MM, 16MM)
BWG26X1/2", 5/8", 3/4" (0.45MMX12.7MM, 16MM, 19MM)
BWG25X1/2", 5/8", 3/4" (0.50MMX12.7MM, 16MM, 19MM)
BWG24X1/2", 5/8", 3/4" (0.55MMX12.7MM, 16MM, 19MM)
BWG23X1/2", 5/8", 3/4" (0.60MMX12.7MM, 16MM, 19MM)
BWG22X3/4", 1", 11/4" (0.70MMX19MM, 25.4MM, 32MM)
BWG21X3/4", 1", 11/4" (0.8MMX19MM, 25.4MM, 32MM)
BWG20X3/4", 1", 11/4" (0.9MMX19MM. 25.4MM, 32MM)
BWG19X3/4", 1", 11/4" (1.0MMX19MM, 25.4MM, 32MM)
Mechanical properties
1)ordinary&Standard steel :the product is made from ordinary carbon structured and high quality carbon structured steel via cold rolled.it applys to pack wood,paper.glass.stone.textile.pallet.box and so on.
2) High Tensile steel :the product is make from ordinary carbon structured and high quality carbon structured steel via cold-rolled.it applys to pack profiled bar.tube steel .tal and so on.
Technical Parameters: |
Ordinary steel strapping |
σb≥65-75kg/mm2(650-750Mpa), elongation:δ5≥3%-5% |
standard steel strapping |
σb≥75-85kg/mm2(750-850Mpa), elongation:δ5≥4%-6% |
|
High Tensile steel strapping |
σb≥85-95kg/mm2(850-950Mpa), elongation:δ5≥5-8% |
Wound type.
1. ribbon wound.,
ID:200MM.300MM.406MM.
2. oscillate wound
ID:406MM

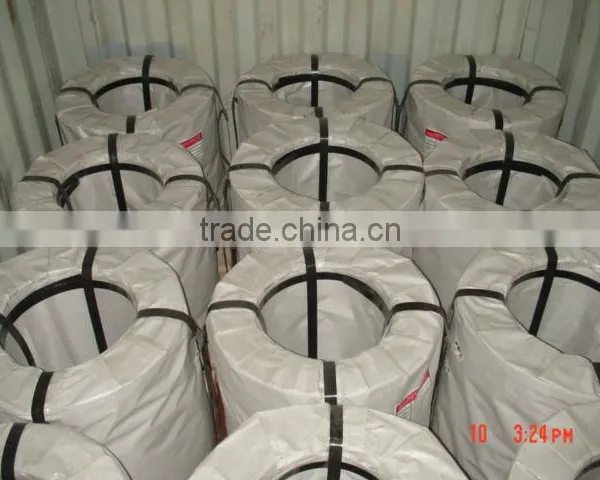

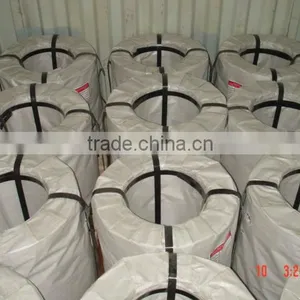

Packaging Detail
Inner is protect humidity-protect humidity-proof wax paper. Medium is plastic film. Outer is sackcloth or compound paper packing.
Applicable
Applicable for the bundling and packing of wood, paper, cotton spinning, glass, and steel weld tube and all kinds of heavy goods.
