Help CenterCold Rolled Steel Strapping
Related Products
Specifications
cold rolled steel strapping1.Min850Mpa
2.elongation:Min6%
3.oscillated
re:406mm..
Manufactured to meet rigid quality specifications and close tolerances, Samuel Standard Duty strapping is ideal for all general applications and is available in a number of different finishes.
High Tensile strapping is manufactured for optimum results in every application. Cold rolled steel of a high carbon and manganese analysis is heat treated to ensure uniform tensile and elongation characteristics.
Extra High Tensile.
Offers the same advantages of uniform high quality, but in larger cross sections, providing maximum strength and elongation. Use in heavy to extreme duty applications of unitizing and load securement where maximum protection from stress and shocks is required, e.g., lifting loads aboard ships. .
All finishes are treated with a hard wax coating - a special Samuel "hot dip" process. This lubrication allows the strapping to flow smoothly in automatic machines, tools and around corners of all products, skids, crates or cartons.
A hard baked-on gloss applied to both sides and edges helps the flow characteristics of the strappin
Zinc
Commonly used for prolonged outside storage, this finish offers greater rust resistance than regular painted material.
Jumbo Coils
For high volume applications, certain strap sizes are available in jumbo coils, ranging in weight from 250-2000 lbs (110-900 kg). Coil face ranges from 6" (152.4mm), 7-1/2" (190.5mm), 8" (203.2mm) and 12" (304.8mm).
Packaging

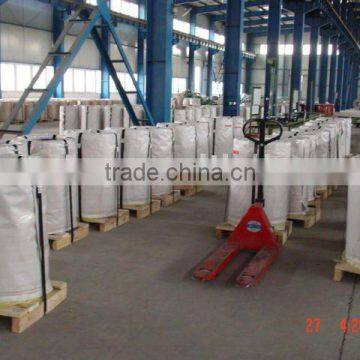

Oscillated wound steel strapping coils are shrouded. Skids are normally shroud wrapped with cardboard for protection in transit.
Manufactured to meet rigid quality of specifications and close tolerances, Samuel Standard Duty strapping is ideal for all general applications and is available in a number of different finishes.
| Width | Thickness | Length/Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | inches | mm | inches | mm | Average Strength (lbs) | ft/lbs | m/kg | Oscilatted | Ribbon Wound | Wax | Painted | Zinc |
| 14037515 | 3/8 | 10 | .015 | .38 | 675 | 52.4 | 35.2 | * | - | * | * | - |
| 14037520 | 3/8 | 10 | .020 | .51 | 900 | 39.3 | 26.4 | * | - | * | * | - |
| 14050015 | 1/2 | 13 | .015 | .38 | 900 | 39.3 | 26.4 | * | - | * | * | - |
| 14050020 | 1/2 | 13 | .020 | .51 | 1200 | 29.4 | 19.8 | * | - | * | * | - |
| 14050023 | 1/2 | 13 | .023 | .58 | 1380 | 25.6 | 17.2 | * | - | * | * | - |
| 14062515 | 5/8 | 16 | .015 | .38 | 1125 | 31.4 | 21.1 | * | - | * | * | - |
| 14062520 | 5/8 | 16 | .020 | .51 | 1500 | 23.6 | 15.9 | * | - | * | * | - |
| 14062523 | 5/8 | 16 | .023 | .58 | 1725 | 20.5 | 13.8 | * | - | * | * | - |
| 14075015 | 3/4 | 19 | .015 | .38 | 1350 | 26.2 | 17.6 | * | - | * | * | - |
| 14075020 | 3/4 | 19 | .020 | .51 | 1800 | 19.6 | 13.2 | * | - | * | * | - |
| 14075023 | 3/4 | 19 | .023 | .58 | 2070 | 17.1 | 11.5 | * | - | * | * | - |
