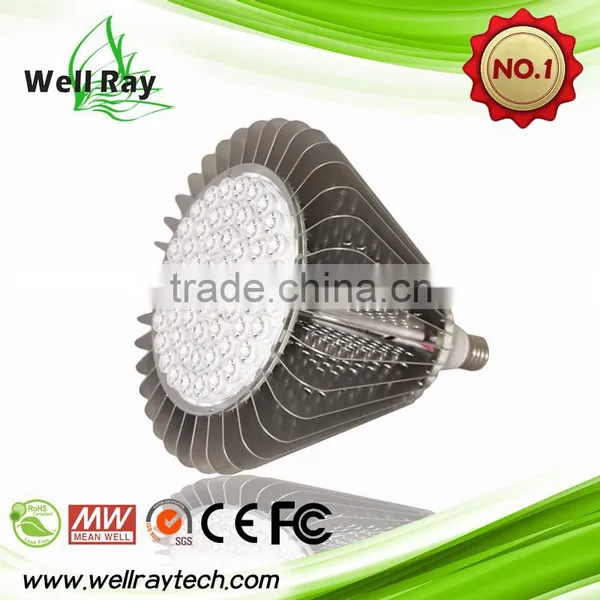

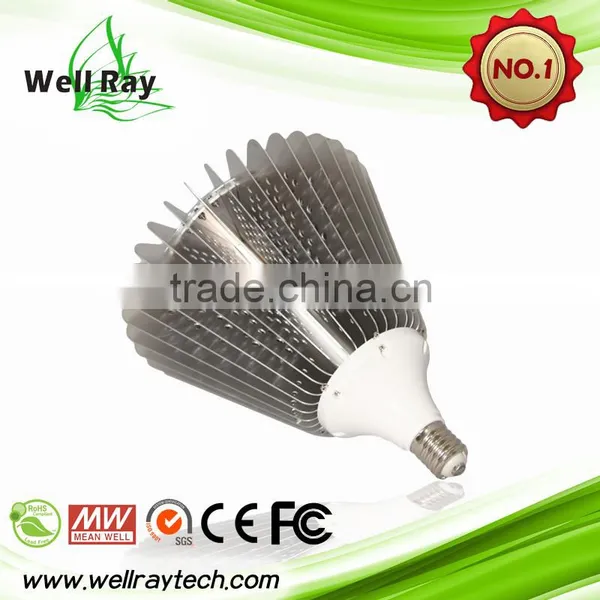

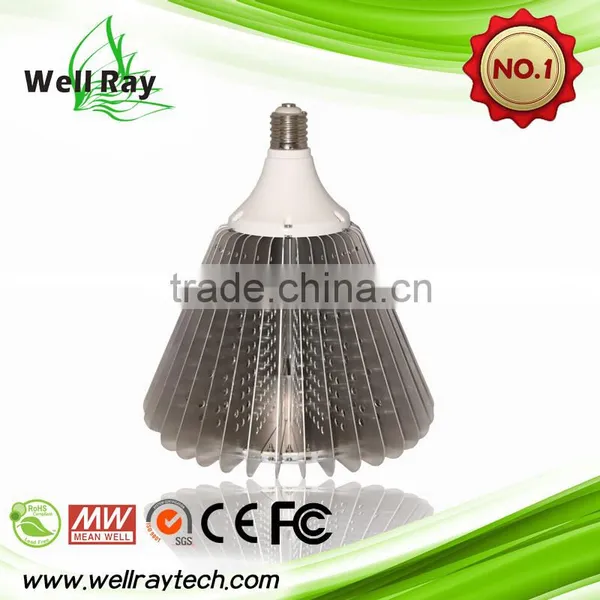

2015 High Power Industrial Fixture E40 300W LED High Bay Light
- 1000 Set / Sets per Month
- Kaohsiung Taiwan
- T/T Credit Card
- Hishine 80W X1 LED Linear Strip Light Led High Bay Lights
- Replacement E26 E27 Bulb High Bay LED Lights (75W)
- Replacement E26 E27 Bulb High Bay LED Lights (60W)
- Replacement E26 E27 Bulb High Bay LED Lights (45W)
- Replacement E26 E27 Bulb High Bay LED Lights (30W)
- Replacement E39 E40 CREE High Bay LED Lights (30-400W)
Product Details
LED Light Source: | CREE chip | Warranty(Years): | 2 | Input Voltage(V): | 90~264 VAC |
Lamp Power(W): | 300 | Lamp Luminous Flux(lm): | 31000 | Lamp Luminous Efficiency(lm/w): | 103.3 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP55 | Certification: | CE |
Place of Origin: | Taiwan | Brand Name: | Well Ray Tech | Model Number: | LUB-E300 |
Product Description
2015 High Power Industrial Fixture E40 300W LED High Bay Light:
Well Ray's Website
Dimension Diagram
Product Feature
- Universal input voltage from AC90~264.
- Pass 8000V Hi-pot and 4000V surge testing
- Constant DC working voltage during operation
- Power supply UL/TUV/PSE/CE/RoHS approval
- Applications: Indoor/Outdoor lighting use,factory, warehouse, stadium, parking lots, and shopping mall.
| 300W LED High Bay |
Voltage | 48~54 Vdc |
Current | <6.5A±10% |
Power Consumption | 270w ±10% |
Operating Life | >50,000 hours |
Color Temp | 2700~3300 / 5300~6500 K |
Lumen Flux | 31000 lm±10% |
CRI | >75 |
Viewing Angle | 30°,60°,90°,120° |
Weight | 3.5 kg |
Socket Type | E39/E40 |
Operation Temperature | -20~50 ℃ |
Storage Temperature | -40~60 ℃ |
Operation Humidity | 10~90 % |
| 300W LED Power Supply |
Voltage | 90~264 Vac |
MAX Voltage | 305Vac |
Current | <1.5A±10% |
Frequency | 50 ~ 60 Hz |
Power Consumption | 300w ±10% |
Power Factor | > 0.9 |
Protection Temperature | > 95℃ |
Operating Life | >20,000 hours |
Color Temp | 2700~3300 / 5300~6500 K |
Weight | 1.9 kg |
Operation Temperature | -20~50 ℃ |
Storage Temperature | -40~60 ℃ |
Operation Humidity | 10~90 % |
| 300W LED High Bay 60° | |||
Height (m) | 5 M | 10 M | 15 M | 20 M |
Illuminance (Lux) | 780 Lux | 195 Lux | 86 Lux | 48 Lux |
Φ Diameter (m) | 5.8 M | 11.6 M | 17.4 M | 23.2 M |
Item | Carton Size | Net Weight | Gross Weight |
300W E40/E39 LED High Bay | 360 × 360 × 450 mm | 5.4 kg | 6.4 kg |
300W Ring Type LED High Bay | 360 × 360 × 450 mm | 5.4 kg | 6.4 kg |
300W Stand Type LED High Bay | 360 × 360 × 450 mm | 6.6 kg | 7.6 kg |
1. Inquiry
Send us an inquiry including item number, style, watt, and quantity via email, tradeManager or QQ: 2937169671, Skype: wellraytech. We will respond to your inquiry as soon as possible.
2. Provide samples
If you need samples of items before making a purchase, we can provide you samples. However, you should pay for the sample plus freight fee. If you buy large quantity, we can deduct this sample fee from the order amount.
3. Place an order
You may place an order by sending us your order via email for fax: 886-8-7513940.
4. Confirm PI and make the payment
After we receive the order, PI will be sent for you to confirm. Then you arrange the payment to us.
Payment can be made via T/T, Western Union, Paypal or Alipay.
5. Production
We will start the production after receipt 100% payment.
6. Delivery
We ship the goods via Air Express (door to door) not including import tax or SEA shipment.
Air Express: DHL, GDA, EMS, OCS and FedEx.
8. After-sale service
Feel free to let us know if there are any questions with the product. We will make sure our customers are satisfied with their order.
Well Ray Technology Ltd is started by a R&D team from optical, institutions, electronic fields. We focus on quality, innovation and efficiency. The most principle is to pursue high quality to meet customers’ request. Well Ray’s product lines has two groups-LED Lighting and Car parts/accessories. We hope that Well Ray’s products can let your life be better.
1. How many is the MOQ for LED high bay lights?
There is no MOQ request. However, if you request SEA shipment, 1 pallet can load 36 sets.
2. Can I get samples?
Yes, please provide the item you need and your air express account.
If you don't have air express account, then leave your full shipping address. We can evaluate the shipping
cost for you. After you confirm the sample PI and finish payment, then we will send out the sample to you.
3. Can I have customized products?
Please send us the drawing and request quantity you will order and then we will offer you the roughly cost for your reference.
6. How long is the lead time?
It will take around 21-30 workfing days. If you're urgent to get the goods, please discuss us in advance.
