--- AZ22-10 Backhoe Loader Show
|
AZ22-10 Backhoe Loader |
Overall Dimension |
6800*1840*2750mm |
Operate Weight |
4440kg |
Tread width |
1640mm |
Wheelbase |
2310mm |
|
Max. Dumping Height |
3000mm |
Max. Dumping Reach |
1050mm |
|
Max. Digging Height |
2500mm |
Max. Digging Depth |
3850mm |
|
Min. Ground Clearance |
230mm |
Min. Turning Radius |
7500mm |
|
Front Bucket |
Capacity |
0.65m³ |
||
Rated Load |
1200kg |
|||
Digging Bucket |
Capacity |
0.1m³ |
||
Rated Load |
100kg |
|||
Time |
Lifting Time |
4.5s |
||
Falling Time |
2.5s |
|||
Dumping Time |
1s |
|||
Engine |
Standard Configuration |
Yunnei 495 |
Rated Power |
60kw, 81.6hp |
Four-cylinder |
Type |
Turbocharge |
||
Advance Configuration |
Yunnei 4100 |
Rated Power |
65kw, 88.4hp |
|
Four-cylinder |
Type |
Turbocharge |
||
|
Transmission System |
Gearbox Model |
265 Automatic |
Axle |
small Hub Reduction Axle |
Drive Model |
4WD |
Brake Model |
Gas Cap Oil Brake |
|
Tyre Size |
Size |
20.5-16 |
Model |
Road Tyre |

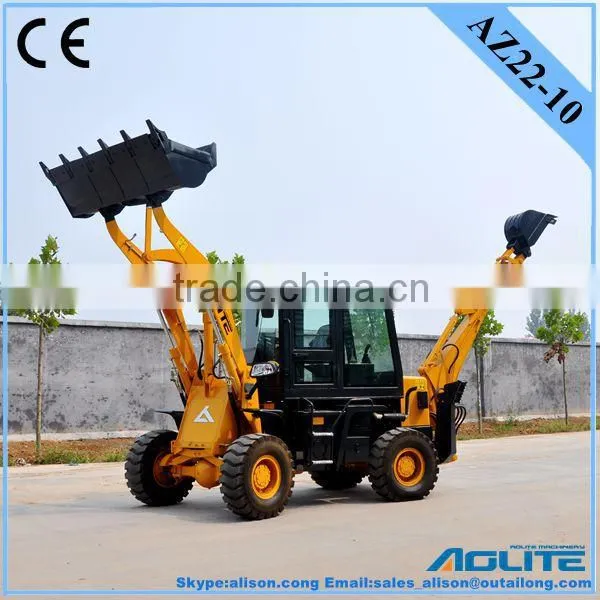

1. AZ22-10 Backhoe Loader Real Photo
2. Humen Design Comfortable Cabin
3. Small Hub Reduction Axle and 20.5-16 Tyre
4. 100KG rated Load Digging Bucket and 3850mm Digging Height
5. My customers are interested about it.
6. Optional Attachments

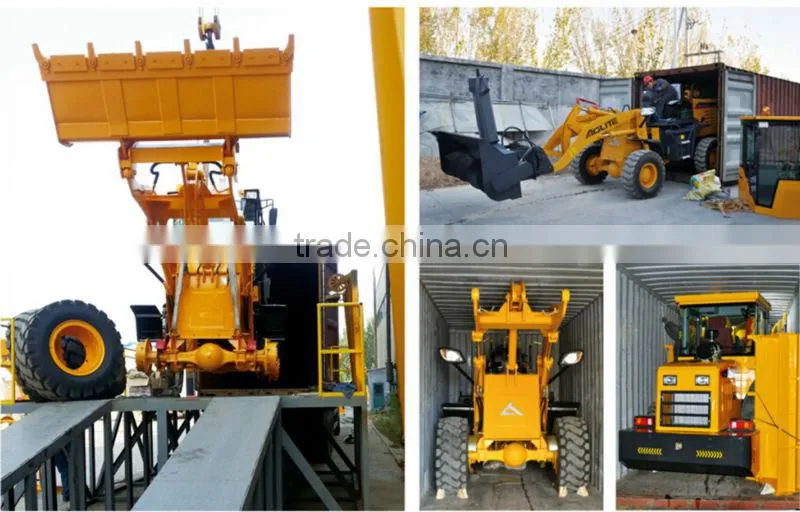

Package: 2 sets in 1*40HQ Container
Q: What can u do about after-service?
A: For all AOLITE loaders, we will provide after-service lifelong. No matter how long time u have bought our productions, u can contact us for after-service.
In the warranty period, the broken spare parts will be sent to u free.
Beyond the warranty period, u only need to pay for spare parts.
If necessary, the enginers available to service machinery overseas.
Q: Can u supply some easy-broken spare parts free?
A: Yes, of course! All AOLITE loaders will have some free spare parts when be sent to customer.
Q: Why choose ur company??? How can i know more about ur company?
A: Warmly welcome to visit us.
Or Contact the sales Alison Cong for documents about productions' all advantages and company profile.
Q: Are u manufacturer or trading company?
A: My company is the only one professional MANUFACTURER and EXPORTER about AOLITE loaders with 10 years experiences, so we have the advantage of high quality and best price.
What's more, all productions can be designed according to the needs of customers.
Q: What production we can supply?
A: Wheel Loader: rated load from 600kg to 5000kg
Backhoe Loader: rated load 1200kg and 2500kg
All productions are approved by CE, ROPS/FOPS... as u need.
Q: How and when can i contact u?
A: Anytime u can contact Alison by Phone, Email, Trade Manager, Skype, Whatsapp, Wechat, QQ, Facebook as showed in the below picture.
U will get the fastest and the most detailed reply
