Hot selling 36*36 any resolution hybrid audio video byhrid matrix switcher
**Hybrid video switch and processing, HDMI/DVI/VGA/CVBS/YPbPr/SDI/HDBaseT, support any video resolution and interface input, any video resolution and interface output
**Hot-swap
**Plug and Play
**Seamless switch
**Support both Video and Audio
**High Flexibility and Stability
The main characters of matrix switcher:
>>Seamless switch, channel switch without signal cut off in the middle.
>>Configurable resolution for output card.
>>Each input card provide 3.5MM audio input interface and each output card provide 3.5MM audio output interface, audio and video switch simultaneously.
>>Support video splitting output.
>>Arbitrarily configurable OSD indicator for each input source, make it easy to identify signal source of the termination.
>>Led indicator for valid signal detecting.
>>Be capable of TCP/IP network control, RS232 serial control and the front keyboard panel control with LCD screen.
>>Redundant Power Supply: Power Supply system can automatically switch to spare power supply when one supply does not work normally or properly.
>>Pure hardware card inserting structure. Input cards and output cards can be configured flexibly and support hotplug, supporting >>HDMI/DVI/VGA/CVBS/YPbPr/SDI/HDBaseT inputs and outputs.

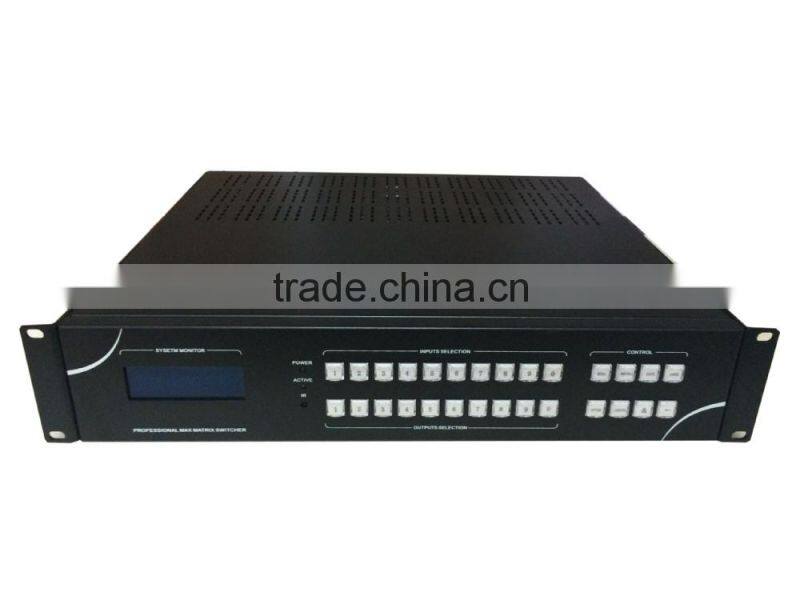

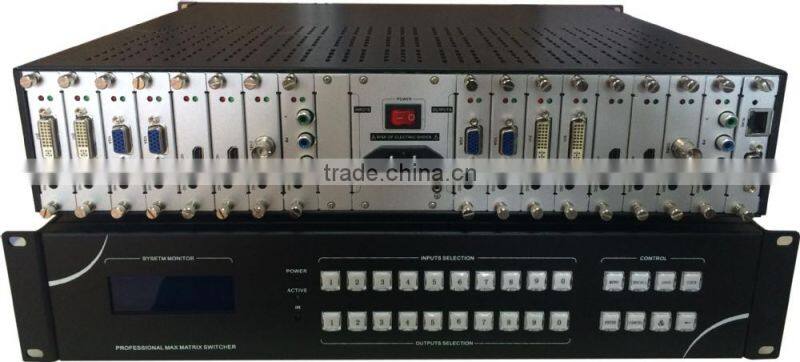

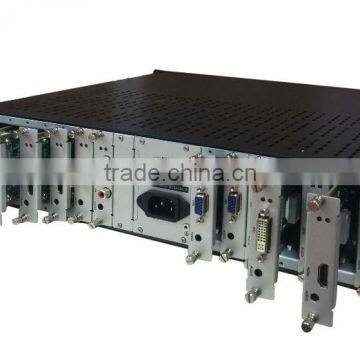

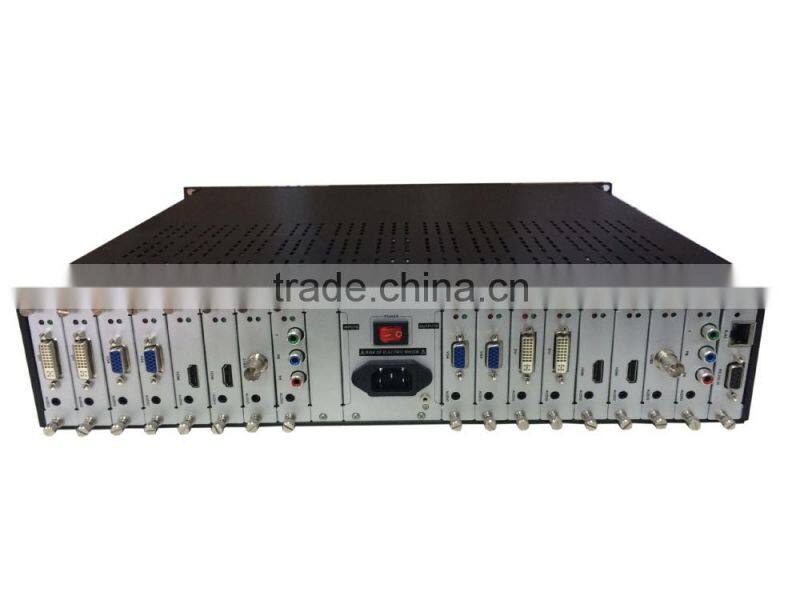

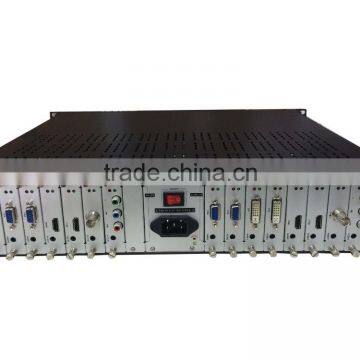

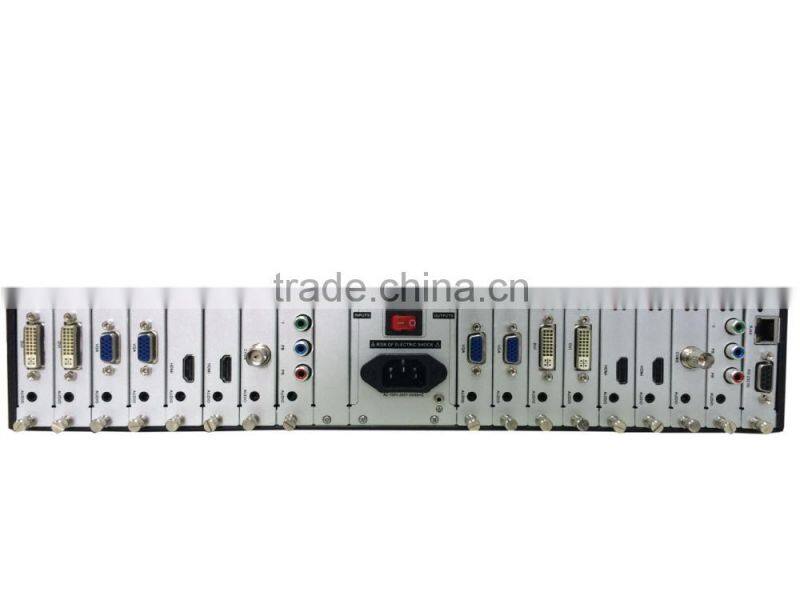

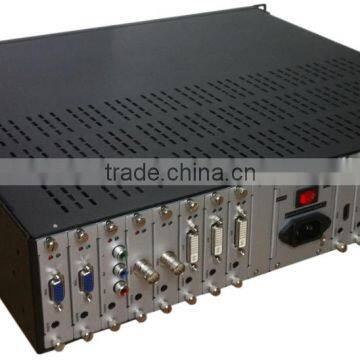

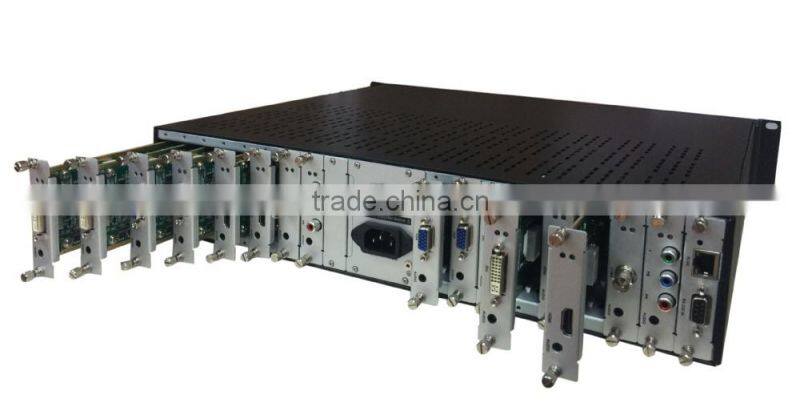

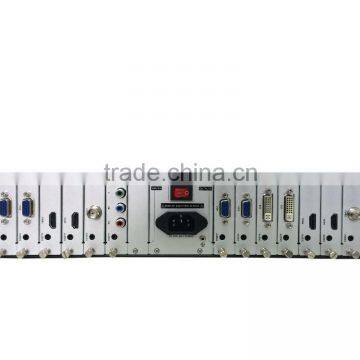

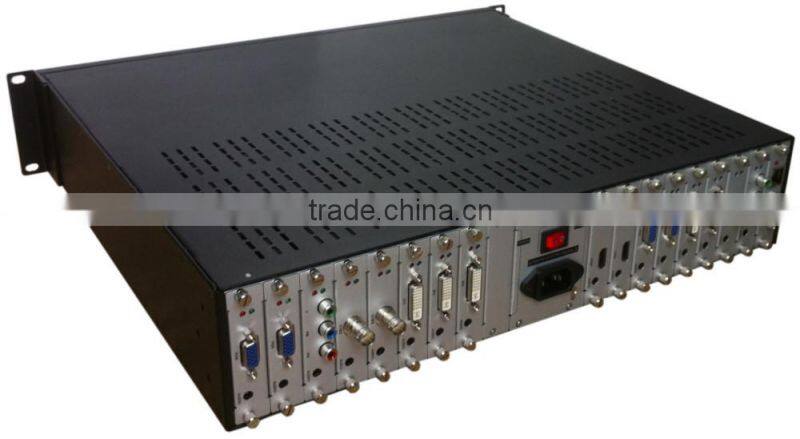

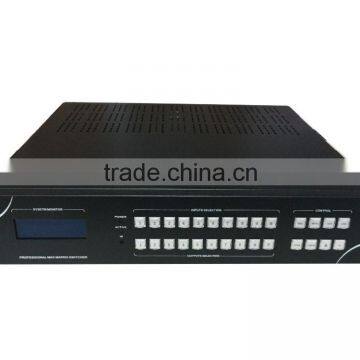

View of the matrix switcher
What's the specifications of matrix switcher?
Model |
PLV-MAX0808 |
PLV-MAX1717 |
PLV-MAX3636 |
Brief description |
8 input card slots 8 output card slots |
17 input card slots 17 output card slots |
36 input card slots 36 output card slots |
Input card |
DVI/VGA/CVBS/HDMI/3G-SDI/YPbPr/HDBT/Fiber |
||
Output Card |
DVI/VGA/CVBS/HDMI/3G-SDI/YPbPr/HDBT/Fiber |
||
Resolution support |
640x480~1920x1200@60Hz(VESA), 480i~1080p@60hz(HDTV) |
||
Protocol |
DVI1.0, HDMI1.3a, HDCP and E-EDID Standard |
||
Color space |
RGB4:4:4/YUV4:4:4/YUV4:2:2/YUV4:2:0 |
||
Bandwidth |
10.2Gbps |
||
Transmission distance |
25m(HDMI/DVI),30m(analog),100m(CAT5e/6),500m(multi-mode fiber optic cable),1.5~20Km(single mode fiber optic cable) |
||
Control |
Front key panel, IR, RS232 and LAN |
||
Work environment |
Temperature: -20℃ ~ +70℃, humidity: 10%~90% |
||
Storage environment |
Temperature: -20℃ ~ +50℃, humidity: 10%~80% |
||
Dimensions |
440mmX400mmX89mm (2U) |
440mmX400mmX225mm (5U) |
440mmX400mmX445mm (10U) |
Weight |
7Kg |
15Kg |
31Kg |
Power Consumption(Max) |
100W |
200W |
450W |
Power supply |
100~260V 50/60Hz |
||
Running hours |
Redundant Power Supply: Power Supply system can automatically switch to spare power supply when one supply does not work normally or properly; Work without interruption for 7X24 hours. |
||
MTBF |
10,000 hours |
||
Warranty |
One year warranty and lifetime maintenance |
||
What kind of card does the matrix switcher support?
| Product Name | Model Name | Price( US$) |
| HDMI Input Card | PLV-HDMI-IC01 | 133-157 |
| DVI Input Card | PLV-DVI-IC01 | 133-157 |
| VGA Input Card | PLV-VGA-IC01 | 133-157 |
| CVBS Input Card | PLV-CVBS-IC01 | 133-157 |
| YPbPr Input Card | PLV-YPbPr-IC01 | 133-157 |
| SDI Input Card | PLV-SDI-IC01 | 251-295 |
| HDMI Output Card | PLV-HDMI-OC01 | 167-197 |
| DVI Output Card | PLV-DVI-OC01 | 167-197 |
| VGA Output Card | PLV-VGA-OC01 | 167-197 |
| CVBS Output Card | PLV-CVBS-OC01 | 167-197 |
| YPbPr Output Card | PLV-YPbPr-OC01 | 167-197 |
Note: Total price = Main part + Card

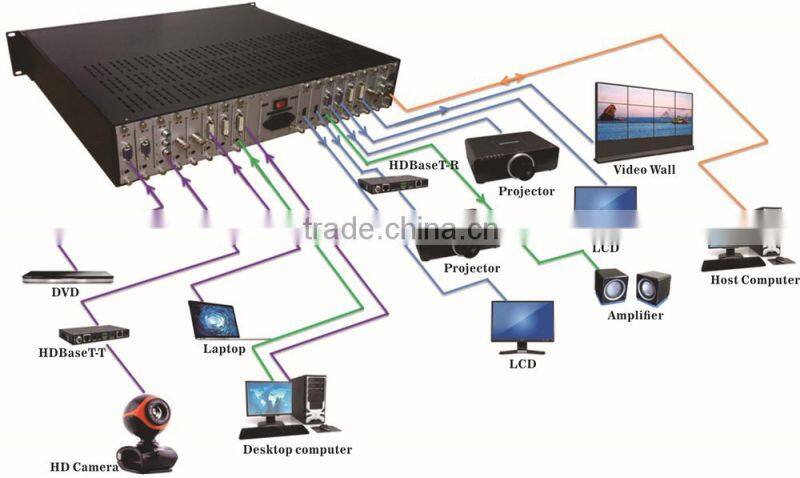

What's the applications of matrix switcher?
How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
We are rich in ODM and OEM experience. We offer:
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
The Factory:
The Certificates:
How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ for products
1. For the first order, we have no limit for the quantity.
2. From the second order, the MOQ is 60pcs.
Payment Terms
T/T, Western Union, PayPal
1. Under T/T, there will be USD35.00 bank charge for each individual remittance.
2. Under PayPal, there will be 4% PayPal fee for each individual remittance.
3. We can put customers' orders down to production once we get the bank slip copy.
4. If order value less than 20,000USD, we should get 100% payment before production;
If order value more than 20,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Lead Time
1. Sample order can be delivered from our factory in 7 working days.
2. General order can be delivered from our factory in 15 - 25 working days.
3. Big order can be delivered from our factory in 30-35 working days at most.
OEM / ODM Service
1. If the total order quantities are above 60pcs, we can silk-screen print customer’s logo on the products, and put customer’s model numbers in the labels, boxes, and in the manuals free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide two-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.
