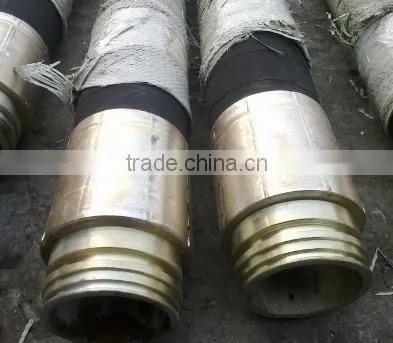

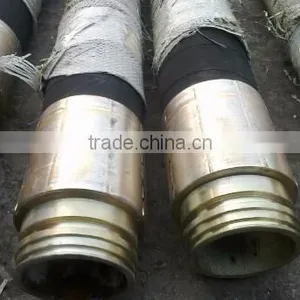

steel wire spiraled drilling rubber hose
Construction:

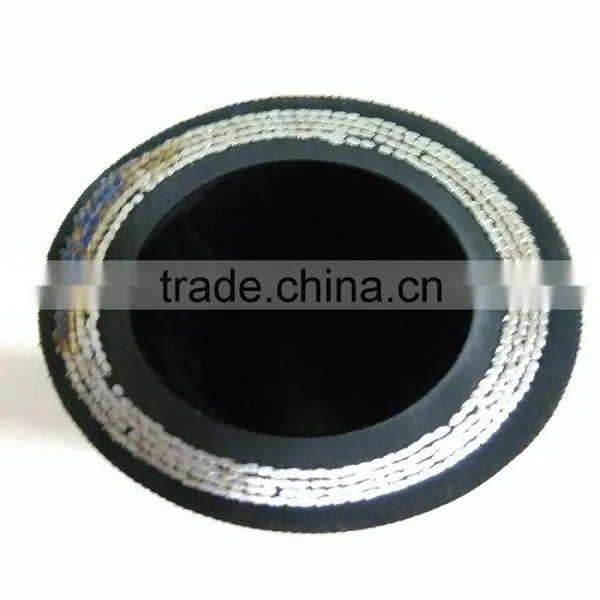

It is composed of an inner rubber protection layer, middle rubber layer, steel wire spiral layer and external rubber cover.
Application:
Steel wire spiral drilling rubber hoses are used in oil fields,well cementing,well repairing,geological explorations,small drilling machine,and water conveyance at coal excavation.Used to carry slurry,water at environmental temperature,and other fluids.
Hose Size |
4SP-64-35 |
|
Inside Diameter(mm) |
64±1.2 |
|
Reinforcement Diameter(mm) |
77±1.0 |
|
Outside Diameter(mm) |
84±1.5 |
|
Working Pressure |
MPa |
35 |
Psi |
5000 |
|
Proof Pressure |
MPa |
70 |
Psi |
10000 |
|
Burst Pressure |
MPa |
87.5 |
Psi |
12500 |
|
Min.Bend Radius(mm) |
|
1100 |
Weight(kg/m) |
6.7 |
|
Packing details: woven bag packing or according to customer's requirment
Delivery detail: within 15 days after receive the deposit
Hebei Lianxing Rubber and Plastic Co., Ltd. is located in Hengde Industrial Park, at the junction of Shandong and Hebei. We currently employ 89 people, including 3 managers, 30 engineering technicians (including 3 senior engineers and 16 engineers). Our company covers an area of 51000m2, including 17000 m2 for work shops. Now we have a total assets of 60000000 yuan, including 40000000 yuan in fixed assets. We are an innovative company integrating research and development, production, technology innovation and sales.
We have more than 100 sets of safety production equipment including knitting machine, winding machine, flat vulcanizing machine, rubber and plastic pressure kneading machine, vulcameter without rotator, tensile testing machine, testing equipment, etc.
The main products of our company are: high pressure wire braided hose, super high pressure wire spirally-wound hose, hydraulic hose, coal mine hydraulic support hose assembly, expansion hose (water injection hole sealing device), drilling hose, hose connectors, wear-resistant sand blast hose, cloth inserted hose, heat-resistant steam hose, rubber water hose, large diameter hose, metal hose and various kinds of hose assembly.
