shenzhen top factory 8ch nvr poe 1080p surveillance system plug and play

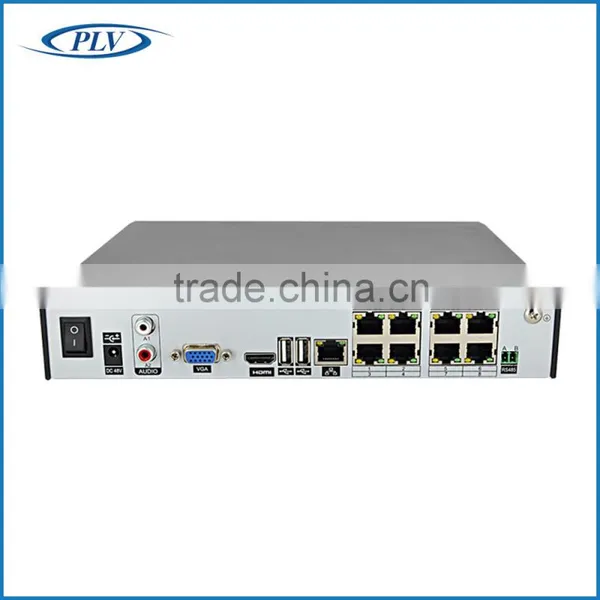

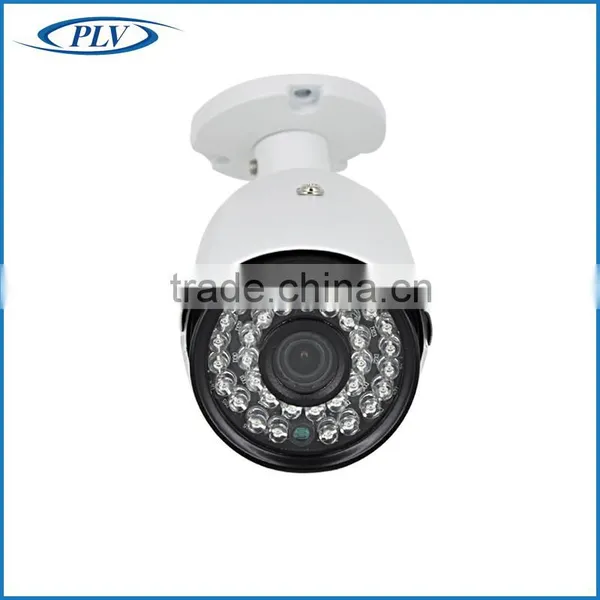

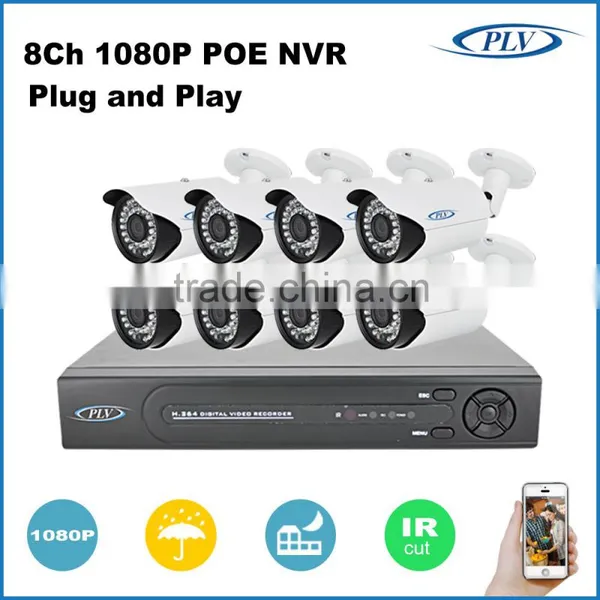

View of 8ch nvr poe 1080p surveillance system:
Why we need 8ch nvr poe 1080p surveillance system?
- We don't just want to see it. We must watch it clearly.
- So we need to upgrade the system from Standard Definition to High Definition
- Best choice make things easy
- PLV, Bring You a Clear World, Guard Your Happy Life
Main Parameters for 8ch nvr poe 1080p surveillance system:
Camera | |||
Image Device |
1/2.8" Progressive Sony CMOS Sensor |
Shutter Time |
1/25s~1/100,000s |
Lens |
3.6/6mm 3 Megapixel Fixed-Focal Lens |
Lens Mount |
M12 |
Day&Night |
ICR |
WDR |
Digital WDR |
Minimum Illumination |
Color:0.01Lux F1.2,B&W:0Lux(With IR) |
DNR |
3D DNR |
Auto Iris |
- |
POE |
Optional |
Video | |||
Video Compression |
H.264 |
H.264 Profile |
High Profile |
Bit Rate |
Main Stream:0.1Mbps ~8Mbps Sub-stream:32Kbps ~512Kbps |
Resolution |
Main:1920*1080 Sub:704*576 |
Frame Rate |
50Hz:25fps (1920 × 1080),60Hz:30fps (1920 × 1080) |
||
Audio | |||
Audio Compression |
- |
Talk Back |
- |
Network | |||
Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
||
Alarm Trigger |
Motion detection, Video Analysis, Shelter |
Onvif Protocol |
support |
Remote Access |
CMS, IE, Mobile Phone |
3G Module |
- |
WIFI |
- |
WIFI Encryption |
- |
Interface | |||
Network Interface |
1 RJ45 10M/100M Ethernet Port |
Video Out |
- |
Audio In |
- |
Audio Out |
- |
Alarm In |
- |
Alarm Out |
- |
Storage Interface |
- |
Serial Port |
- |
General | |||
Operation Temperature |
-10℃~ +60℃ |
Working Humidity |
0% - 90% |
Water-proof Casing |
IP66 |
Adapter Requirement |
DC12V±10% |
Power Consumption |
6.5W MAX(8.5W When IR turn on) |
EXIR range |
Up to 30M |
Product Model |
PLV-NV308E |
|
OS Type |
LINUX |
|
Video | ||
Video In |
8ch 3MP/1080P IPC |
|
Video Compression |
H.264 High Profile |
|
Resolution |
3MP/1080P/960P/720P |
|
Video Out |
VGA:1920*1080/1280*1024/1280*720/1024*768 HDMI:1920*1080/1280*1024/1280*720/1024*768 |
|
Network Bandwidth |
48Mbps |
|
Division |
1/4/9 |
|
Snapshot |
Support |
|
Motion Detection |
Support |
|
Audio | ||
Audio Compression |
G.711a |
|
Audio In |
8 channel IPC |
|
Audio Out |
1 channel |
|
Talk Back |
Support |
|
Recording And Playback | ||
Recording Mode |
Manual>Schedule>Motion Detection>Sensor |
|
Sync Playback |
4ch 3MP/8ch 1080P Sync Playback |
|
Search Method |
Time, Event, Channels and Calendar |
|
Storage and Backup | ||
Build in Interface |
1 SATA Interface |
|
Capacity |
Up to 6TB Capacity |
|
Storage Method |
Local HDD,Network |
|
Backup Method |
Network,USB Drive |
|
Network Communication & Interface | ||
Network Service |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE,UPNP,NTP |
|
Network Interface |
1 RJ45 10M/100Mbit/s and 4 POE RJ45 port for Camera |
|
RS-485 |
1, Support PTZ control |
|
USB Interface |
2*USB2.0 |
|
General | ||
Unit Dimension(mm) |
255*236*44 |
|
Power Supply |
DC 48V/2.5A |
|
Operation Temperature |
0°~55° |
|
Working Humidity |
10%-90% |
|

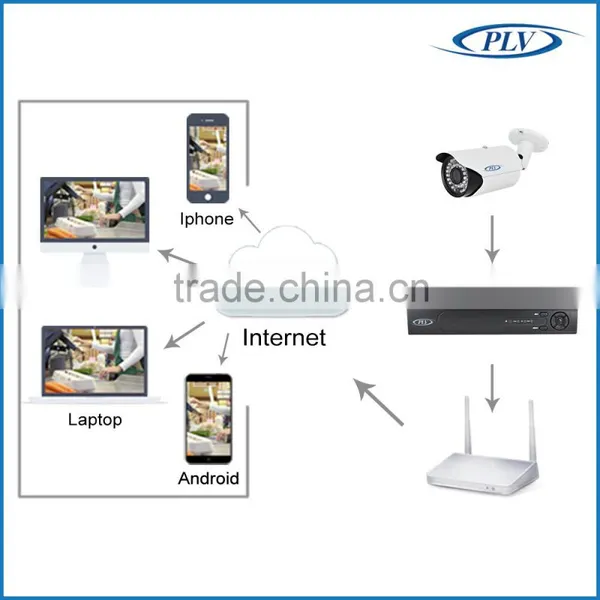

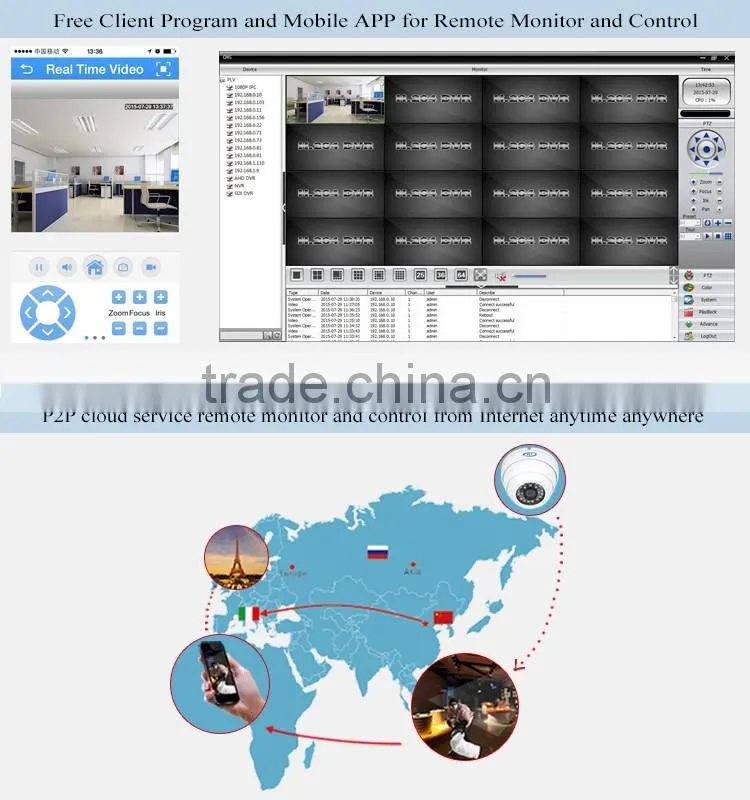

How does 8ch nvr poe 1080p surveillance system work?
How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
1.Free repair within one year after the shipment of products from us.
2.Replacement within 30 days after the shipment of products from us due to products' problems.
3.We can print your logo and stick your model No.on the cameras.
4.We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5.Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
We can provide customized service to meet different requirement, such as different camera casing, different dimension, etc.
Payment Terms
T/T *** Western Union *** PayPal
Lead Time
Sample order : 3~7 working days
Bulk order : 7 - 15 working days.
OEM / ODM Service
Above 60pcs, free customization service to silk-screen print customer’s logo,labels, boxes, etc.
For ODM projects, welcome your enquiries!

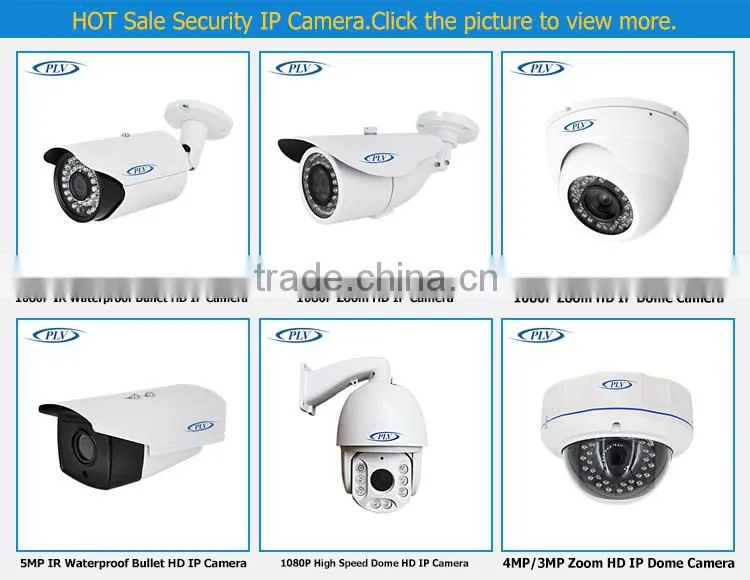

Other IP Cameras:
