New products 3mp ip poe cameras vari-focal domes h264 h265 poe ip external dome camera

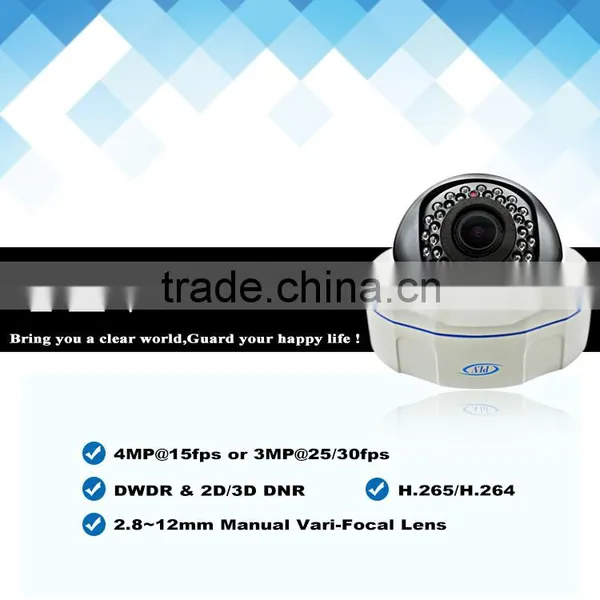

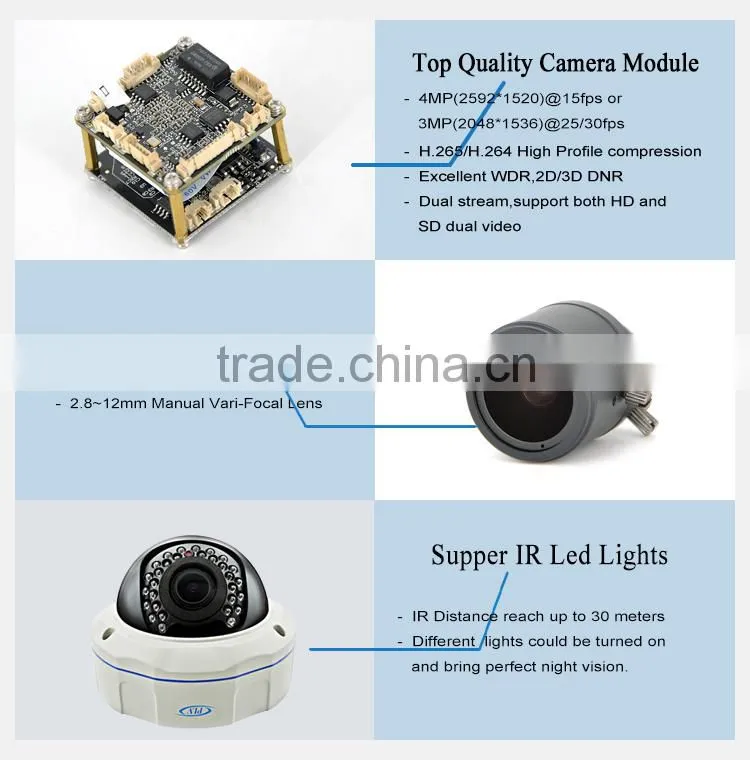

Key Features:
- 4MP(2592*1520)@15fps or 3MP(2048*1536)@25/30fps
- H.265/H.264 High Profile compression algorithm
- 2.8~12mm Manual Vari-Focal Lens
- 1/3” CMOS Image Sensor
- Day/Night Mode Auto-Switch
- ONVIF
- 30meters IR distance
- IP66 Waterproof Metal Casing
- DC 12V Power Supply or POE

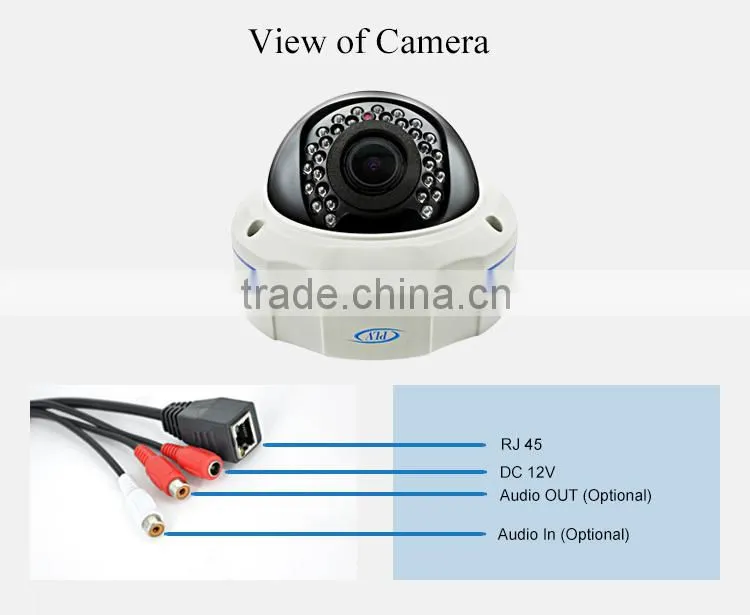

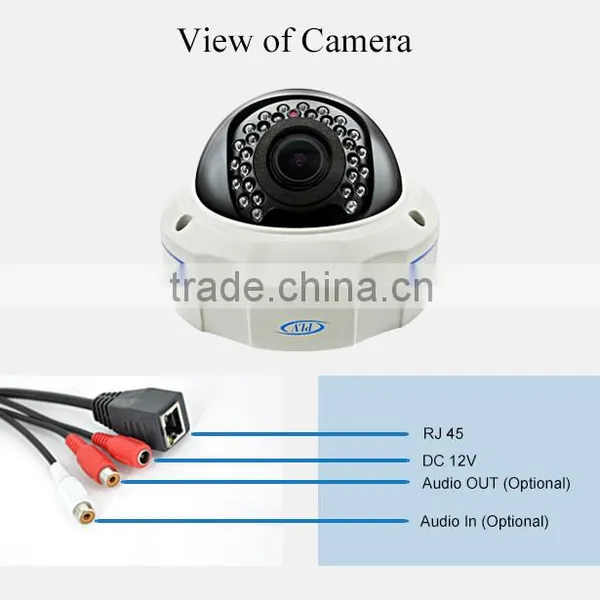

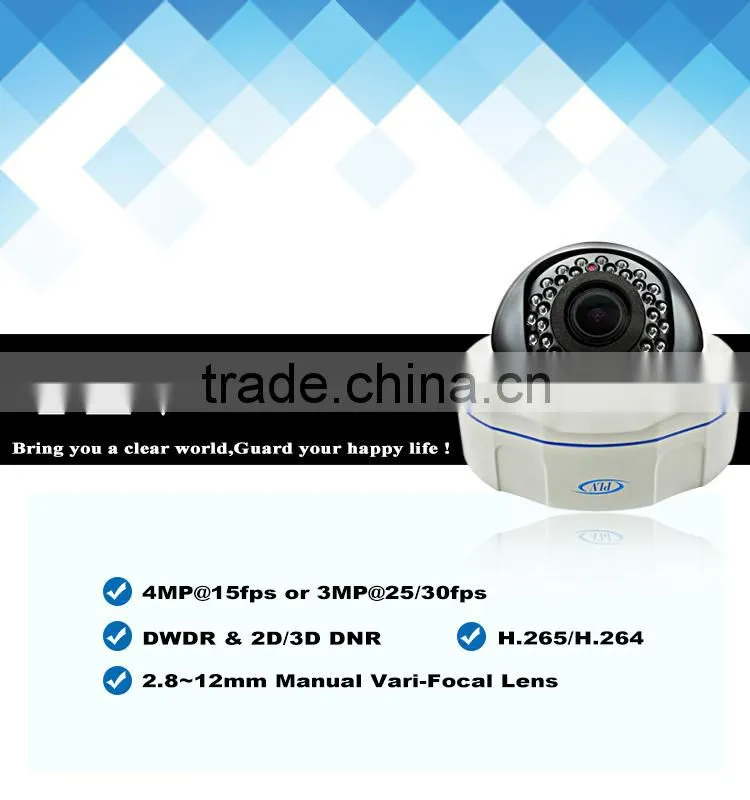

Product Pictures:
Product Details:
Why we need 3 mp 2.8-12mm wdr metal dome ip?
- We don't just want to see it. We must watch it clearly.
- So we need to upgrade the system from Standard Definition to High Definition
- So we need to upgrad to H.264/H.265 High Profile compression algorithm
- Best choice make things easy
- PLV, Bring You a Clear World, Guard Your Happy Life
Main Parameters:
Camera | |||
Image Device |
1/3" Progressive CMOS |
Shutter Time |
1/25s~1/100,000s |
Lens |
2.8~12mm Manual Vari-Focal Lens |
Lens Mount |
CS |
Day&Night |
ICR |
WDR |
Digital WDR |
Minimum Illumination |
Color:0.01Lux F1.2,B&W:0.001Lux |
DNR |
2D/3D DNR |
Auto Iris |
- |
POE |
Optional |
Video | |||
Video Compression |
H.265/H.264 |
H.264 Profile |
High Profile |
Bit Rate |
Main Stream:0.1Mbps ~10Mbps Sub-stream:0.1Mbps ~4Mbps |
Resolution |
Main:2592*1520/2048*1536 Sub:1280*720/704*576 |
Frame Rate |
50Hz:15fps(2592×1520)/25fps(2048×1536),60Hz:15fps(2592×1520)/30fps(2048×1536) |
||
Audio(Optional) | |||
Audio Compression |
G.711 |
Talk Back |
Support |
Network | |||
Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
||
Alarm Trigger |
Motion detection, Video Analysis, Shelter |
Onvif Protocol |
Support |

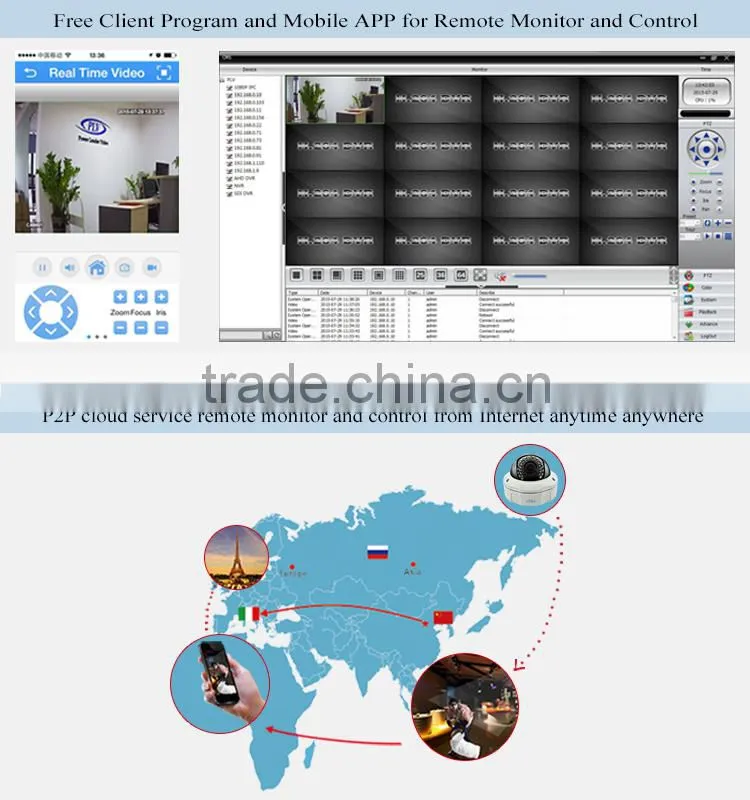

Remote Access |
CMS, IE, Mobile Phone |
3G Module |
Extended by USB interface |
WIFI |
Extended by USB interface |
WIFI Encryption |
- |
Interface | |||
Network Interface |
1 RJ45 10M/100M Ethernet Port |
USB Interface |
Support(Optional) |
Audio In |
1channel(Optional) |
Audio Out |
1channel(Optional) |
Alarm In |
2channel(Optional) |
Alarm Out |
- |
Storage Interface |
- |
Serial Port |
RS-485(Optional) |
General | |||
Operation Temperature |
-10℃~ +60℃ |
Working Humidity |
0% - 90% |
Water-proof Casing |
IP66 |
Adapter Requirement |
DC12V±10% |
Power Consumption |
5.5W MAX(7.5W When IR turn on) |
EXIR range |
Up to 30M |
Dimensions(mm) |
|
Weight |
|
How does ip camera POE system work?
Typical applications:
Widely applied in Banking, Super Market, Telecommunication, Government, School, Airport, Factory, Hotel, Restaurant, Bus/train Station, Public Square, Building, Store, Office, House and other fields that need HD video surveillance.

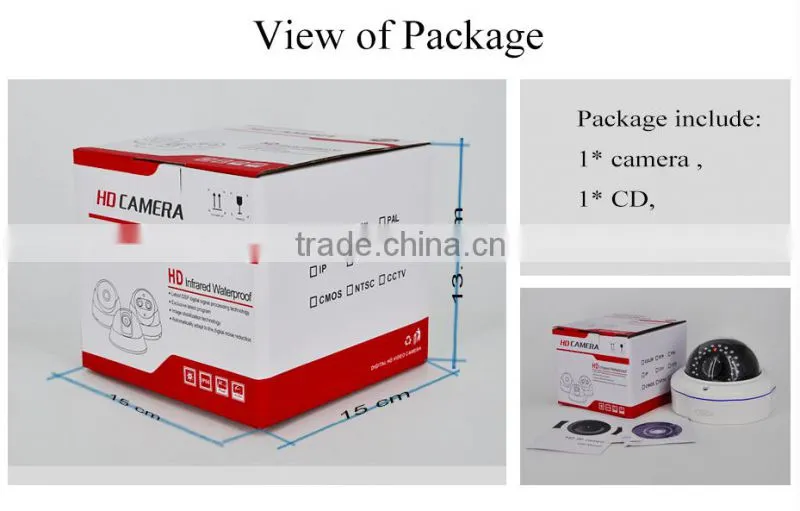

How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
What service does PLV provide?
We are rich in ODM and OEM experience.
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
The Factory:
The Exhibitons:
MOQ for Products:
1. For the first order, we have no limit for the quantity.
2. From the second order, the MOQ is 60pcs.
Payment Terms
T/T *** Western Union *** PayPal
Lead Time
Sample order : 3~7 working days
Bulk order : 7 - 15 working days.
OEM / ODM Service
Above 60pcs, free customization service to silk-screen print customer’s logo,labels, boxes, etc.
For ODM projects, welcome your enquiries!
Different IP Camera models optional.
