Cheap OTR tyre bias OTR tyre 14/90-16
Our OTR tyre advantages:
1. Our Radial and Bias OTR tyre suitable to Caterpillar, Komatsu, JCB, Hitachi Motor wheel loaders, dozers, excavators, scrapers, graders, dump trucks etc.
2.Our OTR tire with special tread compound provides excellent performance on quarry, construction sites and mining area with good cut resistance & heat resistance.
3. Our OTR tire capability: 3000pcs per day.
4. Our OTR tiredelivery time: for stock tyres 7 days, for new tyres 25 days.
5. Our OTR tire cooperation: for long terms and good aftersale services.
6. Our warranty: with test report and definite woking hours to confirm quality.

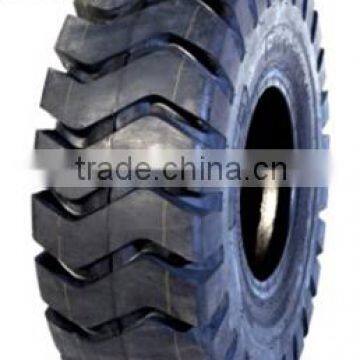

Tyre Pattern E3L3 Features and Technidal Data
Suit for construction machinery transport in mine and other building sites.
With excellent traction, cut-resistence and avulsion resistance features.
Belong to economical tyre.
| Size | PR | TD(mm) | S.R. | Size(mm) | loading (kg) | ||
| S.W | O.D | ||||||
| 16/70-24 | 12 | 24.5 | 13/1.0 | 410 | 1190 | 3760 | |
| 16/70-20 | 12 | 24 | 13 | 410 | 1075 | 3355 | |
| 14/90-16 | 10 | 16 | 7.0N | 270 | 882 | 1530 | |
| 16/70-16 | 10 | 19 | 10.00G | 335 | 910 | 1600 | |
| 20.5/70-16 | 10 | 19 | 10.00G | 335 | 910 | 1600 | |
| 12.00-16 | 12 | 17 | 6.50H | 255 | 890 | 1600 | |
| 8.25-16 | 8 | 16 | 6.5 | 235 | 865 | 1530 | |
| 7.50-16 | 8 | 16 | 5.5 | 215 | 815 | 750 | |
| Size | Ind code | PR | Standard Rim | Section Width(Mm) | Overall Diameter(Mm) | Max Load(Kg) | Tread Depth (Mm) |
| 13.00-25 | E3 | 28 | 10.0 | 350 | 1300 | 9000/4750 | 30 |
| 14.00-24 | E3 | 16 | 10.0 | 375 | 1370 | 7300/4000 | 30 |
| 14.00-24 | E3 | 24 | 10.0 | 375 | 1370 | 9500/5150 | 30 |
| 16.00-25 | E3 | 28 | 11.25/2.0 | 430 | 1490 | 11500/6700 | 30 |
| 18.00-25 | E3 | 28 | 13.00/2.5 | 495 | 1615 | 13600/8000 | 30 |
| 18.00-25 | E3 | 32 | 13.00/2.5 | 495 | 1615 | 15000/8750 | 30 |
| 18.00-25 | E3 | 40 | 13.00/2.5 | 495 | 1615 | 17000/9750 | 30 |
| 17.5-25 | E3/L3 | 12 | 14.00/1.5 | 445 | 1350 | 6150/3650 | 26 |
| 17.5-25 | E3/L3 | 12 | 14.00/1.5 | 445 | 1350 | 6150/3650 | 30/25.5 |
| 17.5-25 | E3/L3 | 16 | 14.00/1.5 | 445 | 1350 | 7300/4250 | 26 |
| 17.5-25 | E3/L3 | 16 | 14.00/1.5 | 445 | 1350 | 7300/4250 | 30/25.5 |
| 20.5-25 | E3/L3 | 16 | 17.00/2.0 | 520 | 1490 | 8250/5450 | 29 |
| 20.5-25 | E3/L3 | 16 | 17.00/2.0 | 520 | 1490 | 8250/5450 | 32/28.5 |
| 20.5-25 | E3/L3 | 20 | 17.00/2.0 | 520 | 1490 | 9500/6000 | 29 |
| 20.5-25 | E3/L3 | 20 | 17.00/2.0 | 520 | 1490 | 9500/6000 | 32/28.5 |
| 23.5-25 | E3/L3 | 16 | 19.50/2.5 | 595 | 1615 | 9500/6150 | 32 |
| 23.5-25 | E3/L3 | 16 | 19.50/2.5 | 595 | 1615 | 9500/6150 | 36/31.5 |
| 23.5-25 | E3/L3 | 18 | 19.50/2.5 | 595 | 1615 | 10050/6700 | 32 |
| 23.5-25 | E3/L3 | 18 | 19.50/2.5 | 595 | 1615 | 10050/6700 | 36 |
| 23.5-25 | E3/L3 | 20 | 19.50/2.5 | 595 | 1615 | 10900/7300 | 32 |
| 23.5-25 | E3/L3 | 20 | 19.50/2.5 | 595 | 1615 | 10900/7300 | 36/31.5 |
| 23.5-25 | E3/L3 | 24 | 19.50/2.5 | 595 | 1615 | 12500/8000 | 36/31.5 |
| 26.5-25 | E3/L3 | 20 | 22.00/3.0 | 675 | 1750 | 13200/8250 | 35 |
| 26.5-25 | E4/L4 | 20 | 22.00/3.0 | 675 | 1800 | 13200/8250 | 54 |
| 26.5-25 | E3/L3 | 28 | 22.00/3.0 | 675 | 1750 | 15500/10000 | 54 |
| 26.5-25 | E4/L4 | 28 | 22.00/3.0 | 675 | 1750 | 15500/10000 | 54 |
| 29.5-25 | E3/L3 | 22 | 25.00/3.5 | 750 | 1875 | 15000/10000 | 43 |
| 29.5-25 | E3/L3 | 28 | 25.00/3.5 | 750 | 1875 | 17500/11500 | 43 |
| 29.5-29 | E3/L3 | 28 | 25.00/3.5 | 750 | 1975 | 19000/12100 | 43 |
Our OTR Tyres More Sizes:
13.00-20, 14.00-20, 13.00-24,13.00-25, 14.00-24, 14.00R20, 14.00R24, 14.00R25,
15.5-25, 16.00-25, 16.00R25, 17.5-25, 17.5R25, 18.00-25, 18.00-33, 18.00R25, 18.00R33, 20.5-25, 20.5R25, 23.1-26, 23.5-25, 23.5R25, 24.00-35, 24.00R35, 26.5-25, 26.5R25, 27.00-49, 28X9-15, 29.5-25, 29.5-29, 29.5R25, 29.5R29, 33.00R51, 33.25R29, 35/65-33, 45/ 65-45, 66*44-25, 750/ 65R25, 875/ 65R29

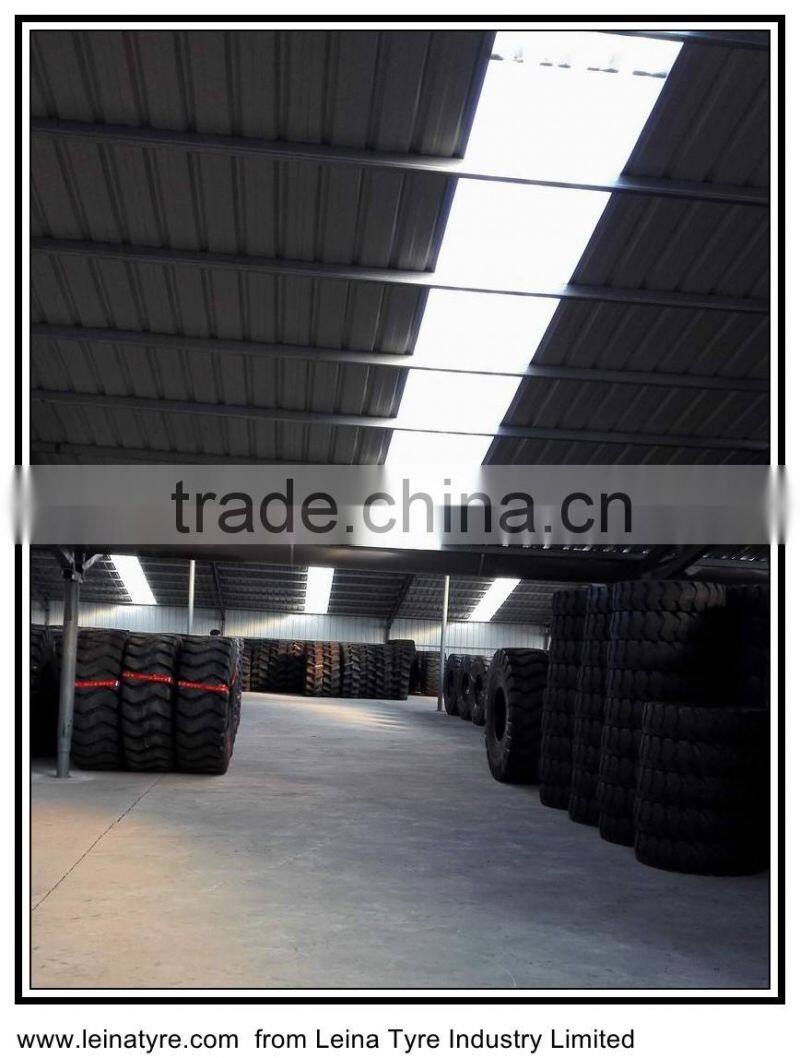

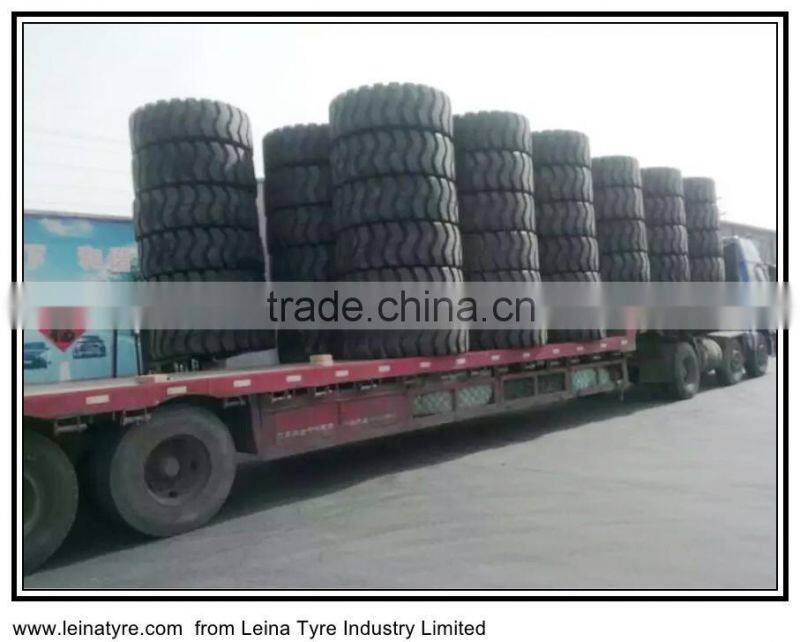

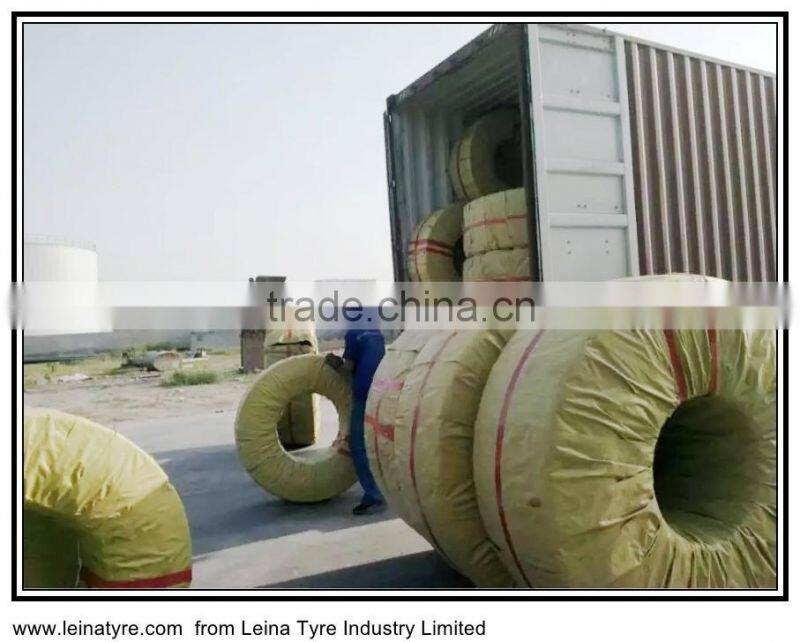

Our Factory & Warehouse & Loading
Our Certificates
Our Leina Tyre is among the major tyre manufacturers and exporters in China with a history of international cooperation and shared technologies. Leina Tyre has an annual capacity of more than 3 million radial truck tyres(TBR), 3 million passenger car (PCR)& light truck(LTR) & SUV tyres (4X4), 80,000 Radial and bias off the road tyres (OTR), together with 600,000 Agricultural & Industrial tyres .
With more than 10 years export experience, Leina products already exported to about 50 countries covering American, European, Australian, Middle East & African markets by meeting all the internationally required manufacturing standards including the national CCC certification, ISO 9001,ISO16949, DOT(USA) and ECE (EUROPE), SONCAP(NIGERIA),GCC(GULF) and COC certificates etc . Additionally, we produce products that meet the exact requirements of the world’s leading manufacturers and distributors. Our experienced technical and management teams ensure that all tyres are continuously tested and developed to ensure a constant product performance.
Leina Tyre Industry Limited
Qingdao Leina Tyre Co., Ltd.
Skype: leinatyre2
We will be your best and reliable partner!
