Flotation Tyre 500/60-22.5

Flotation Tyre 500/60-22.5 thumbnail-1
Flotation Tyre 500/60-22.5 thumbnail-2
Flotation Tyre 500/60-22.5 thumbnail-3
Flotation Tyre 500/60-22.5 thumbnail-4
Flotation Tyre 500/60-22.5 thumbnail-5
Flotation Tyre 500/60-22.5 thumbnail-6
Flotation Tyre 500/60-22.5 photo-1
Flotation Tyre 500/60-22.5 photo-2
Flotation Tyre 500/60-22.5 photo-3
Flotation Tyre 500/60-22.5 photo-4
Flotation Tyre 500/60-22.5 photo-5
Flotation Tyre 500/60-22.5 photo-6
Negotiable MOQ: 1 Forty-Foot Container (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LEINA
Model Number:
Flotation tyre
Contact Supplier Request Quote Chat Now
Qingdao Leina Tyre Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LEINA
Model Number Flotation tyre

Flotation tyre 500/60-22.5





We can provide flotation and implement tires with wide range and  big sizes:




17 inch:  15.0/55-17, 19.5/45-17, 500/50-17;



22.5 inch: 400/60-22.5, 550/45-22.5 , 500/60-22.5, 550/60-22.5, 600/50-22.5, 650/50-22.5 ,600/55-22.5, 700/55-22.5, 700/40-22.5



26.5 inch: 600/55-26.5, 700/50-26.5, 800/45-26.5



30.5 inch: 650/60-30.5, 750/60-30.5, 850/50-30.5



32 inch 30.5L-32, 800/65-32, 900/60-32




Product Description



Tyre Pattern and Technidal Data





 Flotation tyre 500/60-22.5







 Size

TL/TT

PLY

Rim

OD X SW

Max Load

Pressure

Speed

400/60-22.5

TL

16

11.75x22.5

1070x400mm

4.000kg

3.5bar

40km/h

500/60-22.5

TL

16

16.00x22.5

1190x500mm

4.875kg

3.2bar

40km/h

550/60-22.5

TL

16

16.00x22.5

1235x550mm

5.450kg

2.8bar

40km/h

550/45-22.5

TL

16

16.00x22.5

1080X542mm

4.375kg

2.8bar

40km/h

600/50-22.5

TL

16

20.00x22.5

1170x600mm

4.375kg

2.0bar

40km/h

700/40-22.5

TL

16

24.00x22.5

1170x700mm

4.500kg

1.7bar

40km/h

600/55-26.5

TL

16

20.00x26.5

1333x600mm

5.800kg

2.6bar

40km/h

700/50-26.5

TL

16

24.00x26.5

1333x700mm

5.800kg

1.8bar

40km/h

800/45-26.5

TL

16

28.00x26.5

1343x800mm

6.000kg

1.7bar

40km/h

650/65-30.5

TL

16

20.00x30.5

1650x650mm

7750kg

2.2bar

40km/h

750/60-30.5

TL

16

24.00x30.5

1650x750mm

8500kg

2.2bar

40km/h

850/50-30.5

TL

16

28.00x30.5

1650x850mm

9.500kg

2.2bar

40km/h







And we can supply wheel rims covering wide range from 12 inch to 48 inch, these rims all reach to EU standard. Our products export to more than 70 countries and 60% is for OE market.Such as in European,Canada,New Zealand, South Africa etc.

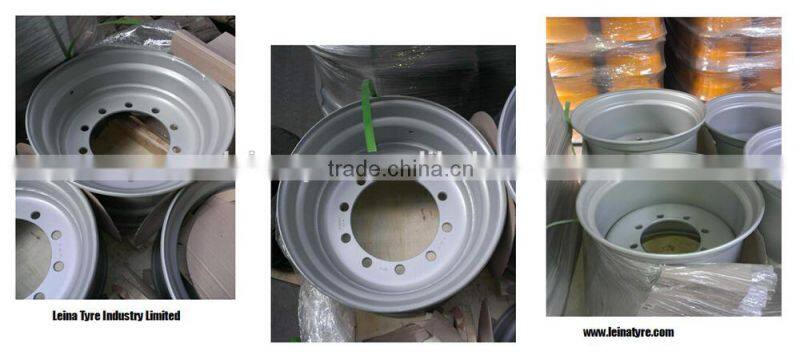

Rim size: 16.00X22.5, 20.00x22.5, 24.00x22.5, 28.00x30.5 are available. with parameters 10/335/281  08/275/221 rim/disc: 7/16mm


Design: Refer to ETRTO/TRA/JATMA.



Paint electro coat and rust protection cost color silver or customer's request.



Flotation tyre 500/60-22.5





 Flotation tyre 500/60-22.5



Flotation tyre 500/60-22.5Flotation tyre 500/60-22.5

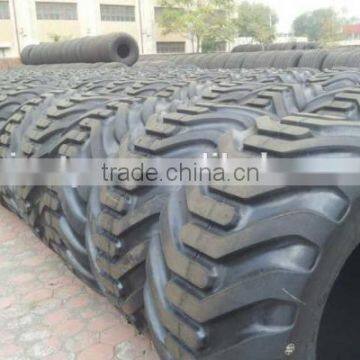

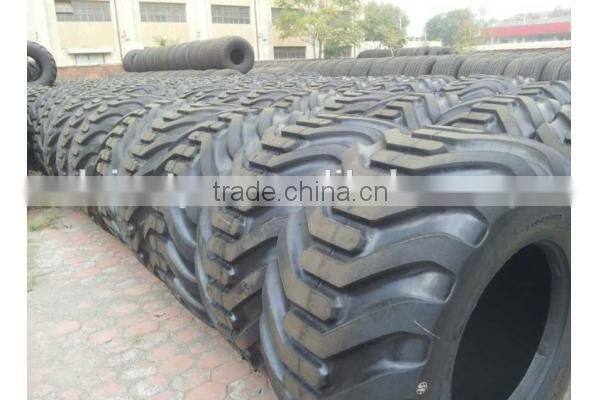

 Our Factory & Warehouse & Loading

Flotation tyre 500/60-22.5Flotation tyre 500/60-22.5









 Our Certificates



Flotation tyre 500/60-22.5



Company Information





Our Leina Tyre is among the major tyre manufacturers and exporters in China with a history of international cooperation and shared technologies. Leina Tyre has an annual capacity of more than 3 million radial truck tyres(TBR), 3 million passenger car (PCR)& light truck(LTR) & SUV tyres (4X4), 80,000 Radial and bias off the road tyres (OTR), together with 600,000 Agricultural & Industrial tyres .



With more than 10 years export experience, Leina products already exported to about 50 countries covering American, European, Australian, Middle East & African markets by meeting all the internationally required manufacturing standards including the national CCC certification, ISO 9001,ISO16949, DOT(USA) and ECE (EUROPE), SONCAP(NIGERIA),GCC(GULF) and COC certificates etc . Additionally, we produce products that meet the exact requirements of the world’s leading manufacturers and distributors. Our experienced technical and management teams ensure that all tyres are continuously tested and developed to ensure a constant product performance.







Contact Details

Leina Tyre Industry Limited

Qingdao Leina Tyre Co., Ltd.

Add: No.39 Shiling Road, Qingdao city, Shandong, China
Tel: 0086-532-80997096
Mobile:0086-186-6970-8226
E-mail: manager at leinatyre dot com
Web:
Skype: leinatyre

  Flotation tyre 500/60-22.5
