Shenzhen Cctv Manufacturer 5mp H.265 16ch Nvr 32ch 24ch
shenzhen cctv manufacturer 5mp h.265 16ch nvr 32ch 24ch

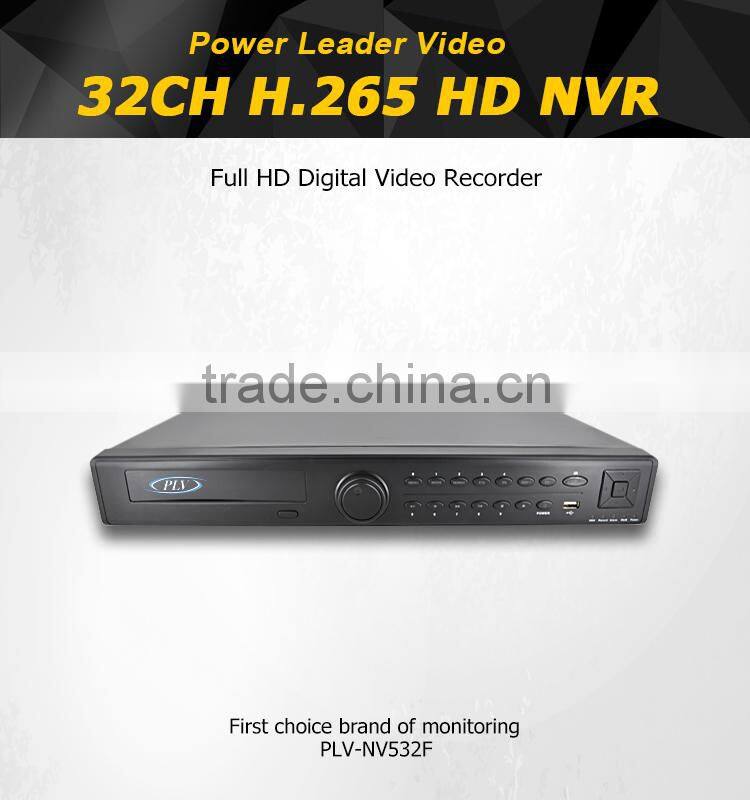

What's the main character of h.265 16ch nvr?
- 24Ch 5MP or 32Ch 3MP/1080P IP Camera Input
- H.265/H.264 High Profile Uncompression algorithm
- Up to 4K HDMI Output
- ONVIF

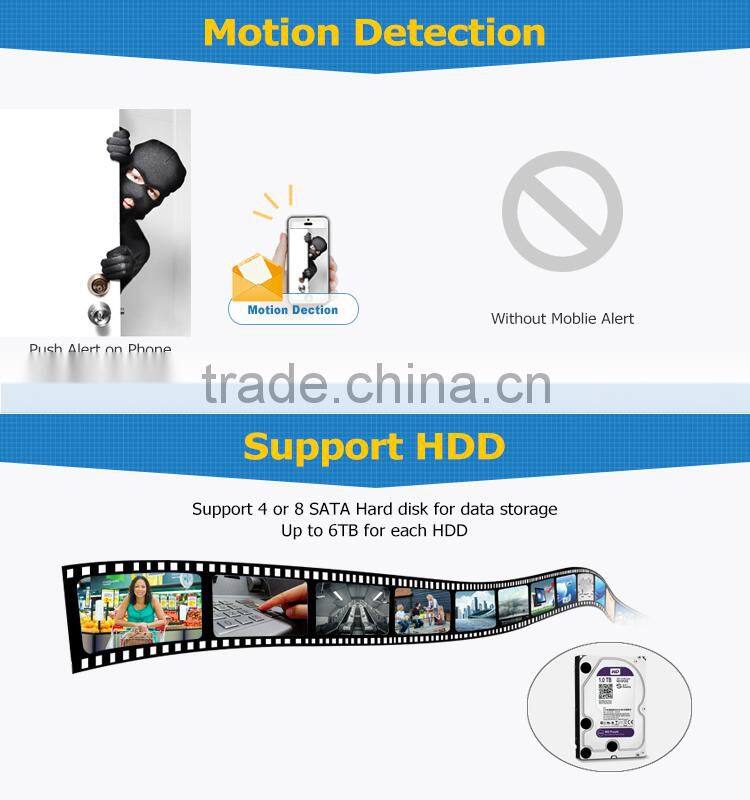

- Support 4 SATA HDD, Up to 6TB each HDD
- Support Audio/Alarm Signal IO

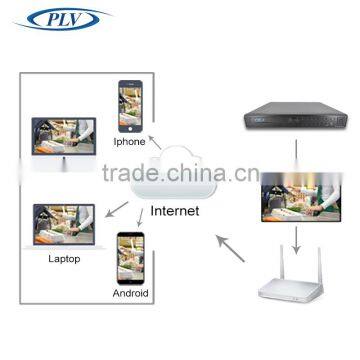

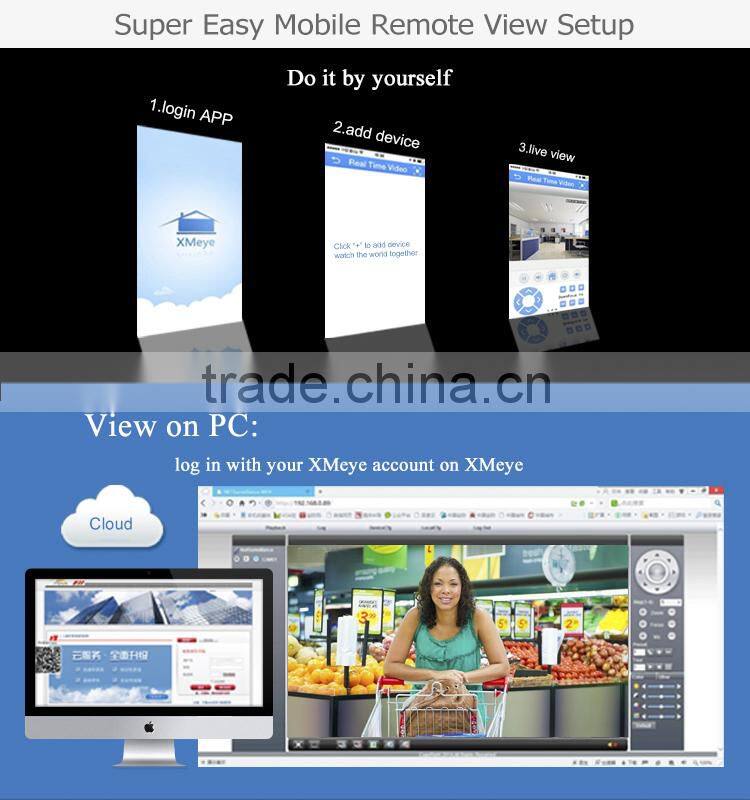

- Support Remote Monitoring
- Dimension: 440mm* 401mm* 60mm
- Weight: 6Kg

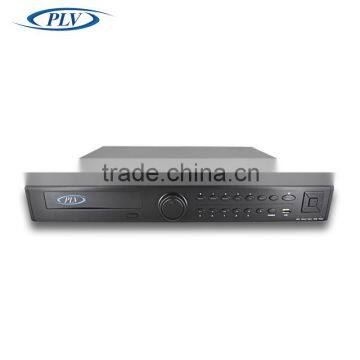

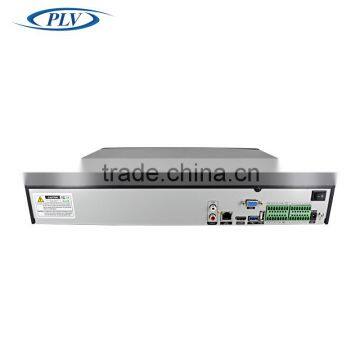

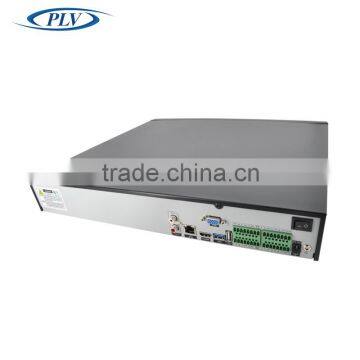

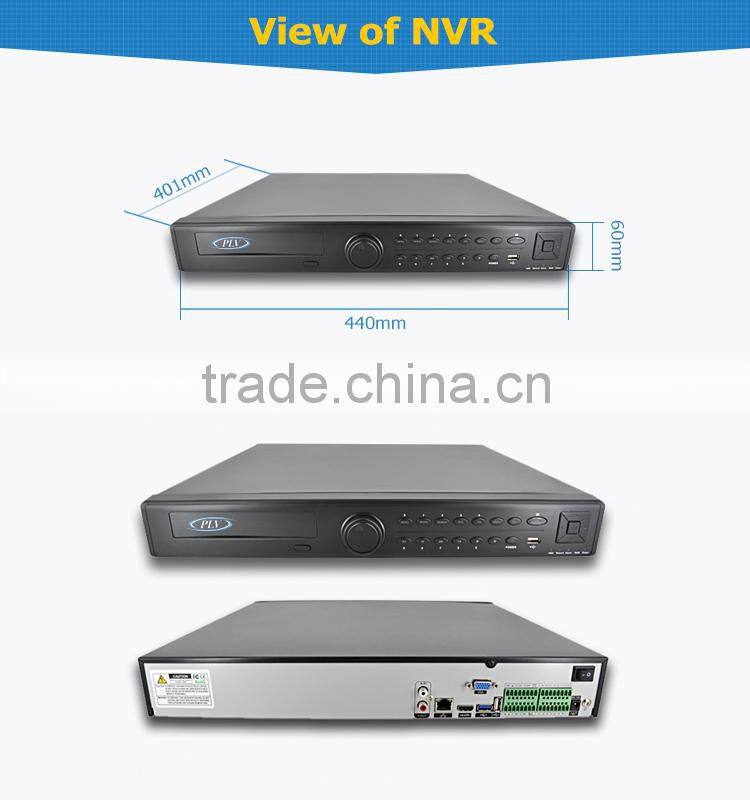

View of h.265 16ch nvr:
Why we need h.265 16ch nvr?
What's the specifications of h.265 16ch nvr?
Product Model |
PLV-NV532 |
||
OS Type |
LINUX |
||
Video | |||
Video In |
24ch 5MP IPC or 32ch 3MP/1080P/960P/720P |
||
Video Compression |
H.265/H.264 |
||
Resolution |
5MP/3MP/1080P/960P/720P |
||
Video Out |
HDMI:4096*2160/1920*1080/1440*900/1366*768/1280*1024/1024*768/800*600 |
||
Division |
1/4/8/9/16/24/32 |
||
Snapshot |
Support |
||
Motion Detection |
Support |
||
Recording And Playback | |||
Recording Mode |
Manual>Schedule>Motion Detection>Sensor |
||

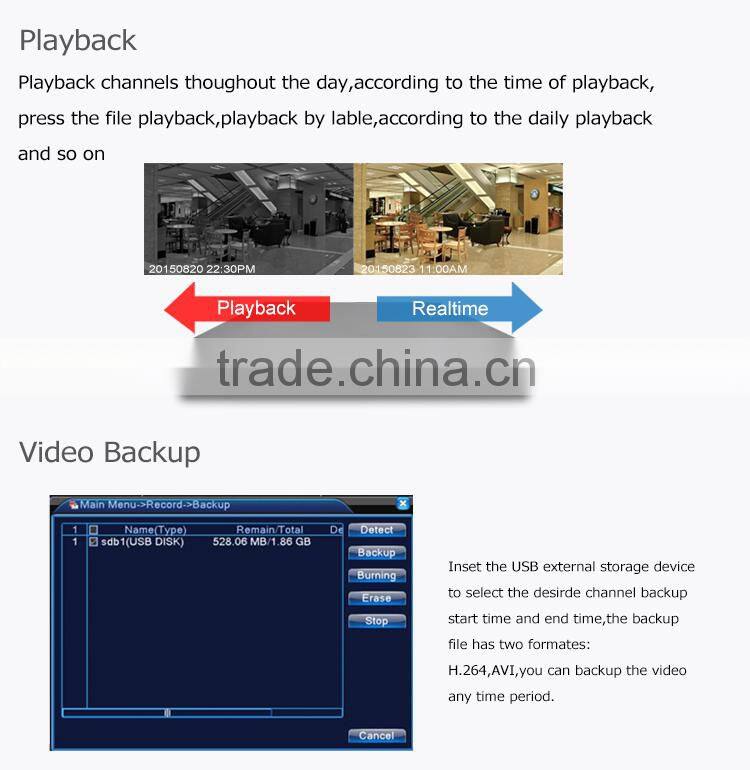

Sync Playback |
4ch 5MP/8ch 3MP/16ch 1080P |
||
Search Method |
Time, Event, Channels and Calendar |
||
Storage and Backup | |||
Build in Interface |
4SATA Interface |
8SATA Interface |
|
Capacity |
Up to 6TB Capacity for Each Disk |
||
Storage Method |
Local HDD,Network |
||
Backup Method |
Network,USB Drive |
||
Network Communication | |||
Network Service |
TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE,UPNP,NTP |
||
Network Interface |
RJ45 10M/100M/1000Mbit/s |
||

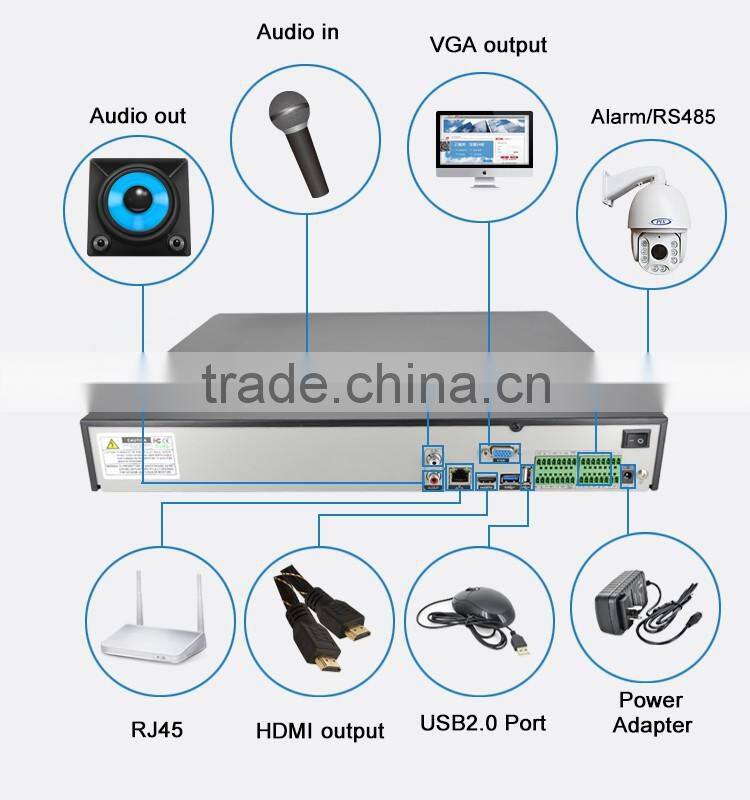

External Interface | |||
Audio |
1 Audio in/1 Audio out |
Talkback |
Support |
Alarm |
16 alarm in/4 alarm out |
||
USB Interface |
2*USB2.0+1*USB3.0 |
||
General | |||
Unit Dimension(mm) |
440*401*60 |
443*428*92 |
|
Power Supply |
DC 12V/6A |
ATX AC100~240V |
|
Operation Temperature |
0°~55° |
||
Working Humidity |
10%-90% |
||
How does h.265 16ch nvr work?
What's the applications of h.265/h.264 high profile 32ch dvr network nvr?
Widely applied in Banking, Super Market, Telecommunication, Government, School, Airport, Factory, Hotel, Restaurant, Bus/train Station, Public Square, Building, Store, Office, House and other fields that need HD video surveillance.
How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
1.OEM/ODM Service: rint your logo and stick your model No.on the cameras,boxes,
2.One-year Wanranty.Free repair within 30 days after the shipment of the products
3. Professional 24-hours technician supports.
Customer`s satisfactory is most important to us.
If you have any problem or questions regarding our transaction.Please don't hesitate to contact us.
Payment Terms
T/T *** Western Union *** PayPal
Lead Time
Sample order : 3~7 working days
Bulk order : 7 - 15 working days.
OEM / ODM Service
Above 60pcs, free customization service to silk-screen print customer’s logo,labels, boxes, etc.
For ODM projects, welcome your enquiries!
Different IP Cameras Optional.
