Help Center2015 Top New Cctv ir Led Full hd Sdi 1080p Security Camera Housing
Related Products
-
Security 1/3'' CMOS 900tvl Bullet Micro Full HD Camera 1920x1080US$ 50 - 100MOQ: 1 Piece -
1080P Full hd Bullet Night Vision Megapixel Cctv Security Camera With 2.8-12mm 4X Zoom Vari Focal LensUS$ 69 - 92MOQ: 1 Piece
-
Easy to Install CMOS Senor Osd Menu Bullet 4X Zoom 1080P Full hd Sdi CameraUS$ 69 - 92MOQ: 1 Piece
-
1080P Full hd Sdi Realtime Night Vision ir Bullet hd Video Cctv Camera SpecificationsUS$ 69 - 92MOQ: 1 Piece
-
4X Zoom Lens 2.8-12mm HD-SDI Cctv Bullet ir Surveillance Camera Cmos Sensor CamUS$ 69 - 92MOQ: 1 Piece
Specifications
1080p ir led security cctv camera:1.Full HD-SDI, 1080P
2. 4/6/8/12mm Fixed-Focal lens
3.1/2.7" CMOS
4.30m ir
2015 top new cctv ir led full hd sdi 1080p security camera housing
- PLV, Bring You A Clear World, Guard Your Happy Life!
What's the main character of 1080p ir led security cctv camera ?
◊ 1080P HD-SDI Output
◊ Full HD Resolution, 1920*1080, 25/30fps
◊ 4/6/8/12mm Fixed-Focal Lens optional
◊ 1/2.7” Progressive CMOS Image Sensor
◊ Day/Night Mode Auto-Switch
◊ Support OSD Menu
◊ 30meters IR distance
◊ IP66 Waterproof Metal Casing
◊ DC 12V Power Supply
◊ Dimension: 220mm*110mm*80mm
◊ Weight: 0.6Kg

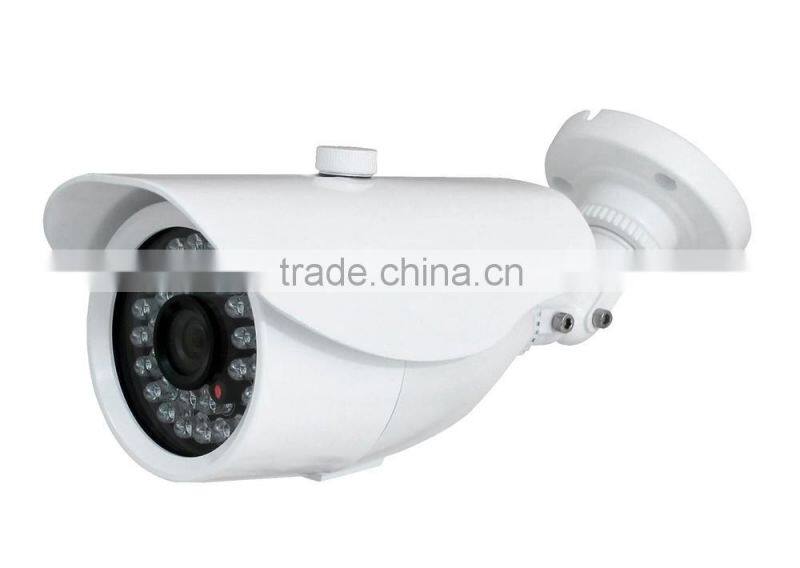

View of the 1080p ir led security cctv camera :
Why we need 1080p ir led security cctv camera ?
- We don't just want to see it. We must watch it clearly.
- So we need to upgrade the system from Standard Definition to High Definition
- Best choice make things easy
- PLV, Bring You a Clear World, Guard Your Happy Life
Higher Resolution, More Clearer
Excellent Wide Dynamic Range(WDR/HDR)
Perfect 3D Digital Noise Reduction(3D DNR)
High Performance Video Detail
A Realistic Picture of Real World
Wonderful Low Light Performance
Professional Night Vision Performance, Ignore Darkness
What's the specifications of 1080p ir led security cctv camera ?
Video | |||
Image Device |
1/2.7" Progressive CMOS |
TV System |
1080P 25/30fps |
Synchronization |
Internal |
Effective Pixels |
2592(H)*1944(V) |
Scanning System |
Progressive Scan |
Image Resolution |
1920*1080 |
Min. Illumination |
Color: 0.1lux/F1.2; B/W: 0Lux (IR ON) |
Frame rate |
25f/s or 30f/s |
Video Output |
HD-SDI (SMPTE292M) , BNC |
S/N Ratio |
>50db |
Lens | |||
Focal Length |
4/6/8/12mm 3 Megapixel Fixed-Focal Lens |
||
Operational | |||
OSD Language |
English, Simple Chinese, Spanish, Portuguese, Deutsch, French, Russian, Traditional Chinese, Thai, Korean, Japanese, Farsi, Polish |
||
Day & Night |
AUTO /COLOR /B/W /EXT1/ EXT2 |
HDR |
Low/Mid/High/Off |
Backlight |
General/Highlight |
Auto Gain Control |
ON/OFF |
Auto Exposure Response Speed |
3 Frames |
Noise Reduction |
2D-DNR(ON/OFF) |
Electronic Shutter Speed |
PAL:1/25 ~ 1/25,000sec; NTSC:1/30 ~ 1/25,000sec |
CCM |
ON/OFF |
White Balance |
Auto/Mode1/Mode2/Mode3/Off |
DPC |
ON/OFF |
HLC |
ON/OFF |
BLC |
ON/OFF |
Privacy Masking |
ON/OFF(8 Zones) |
Auto Iris |
- |
Sharpness |
0~15 Adjustable |
Brightness |
0~63 Adjustable |
Saturation |
0~63 Adjustable |
Contrast |
0~63 Adjustable |
Hue |
0~63 Adjustable |
Self Adaption |
ON/OFF |
IR-CUT |
ICR |
Infrared LED |
36EA IR LED |
IR Distance |
30 Meters |
Infrared Spectrum |
850nm |
Environmental | |||
Operation Temperature |
-10℃~ +50℃ |
Storage Temperature |
-20℃~ +60℃ |
Water-proof Casing |
IP66 |
||
Electrical | |||
Adapter Requirement |
DC 12V |
Power Consumption |
<1.5W(IR OFF) |
Dimensions(mm) |
Weight |
||
How does 1080p ir led security cctv camera work?

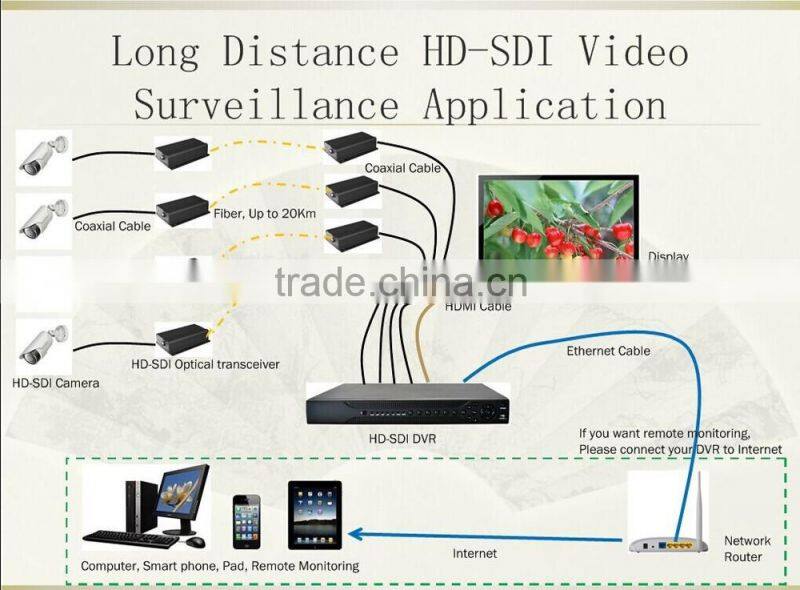

What's the applications of 1080p ir led security cctv camera ?
Widely applied in Banking, Super Market, Telecommunication, Government, School, Airport, Factory, Hotel, Restaurant, Bus/train Station, Public Square, Building, Store, Office, House and other fields that need HD video surveillance.
How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
We have rich ODM and OEM experience. If you are our customers, you will be offered:
1.Free repair within one year after the shipment of products from us.
2.Replacement within 30 days after the shipment of products from us due to products' problems.
3.We can print your logo and stick your model No.on the cameras.
4.We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5.Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7.Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
We can provide customized service to meet different requirement, such as different camera casing, different dimension, etc.
The Factory:
The Exhibitons:
The Certificates:
How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ for products
1. For the first order, we have no limit for the quantity.
2. From the second order, the MOQ is 60pcs.
Payment Terms
T/T, Western Union, PayPal
1. Under T/T, there will be USD35.00 bank charge for each individual remittance.
2. Under PayPal, there will be 4% PayPal fee for each individual remittance.
3. We can put customers' orders down to production once we get the bank slip copy.
4. If order value less than 20,000USD, we should get 100% payment before production;
If order value more than 20,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Lead Time
1. Sample order can be delivered from our factory in 7 working days.
2. General order can be delivered from our factory in 15 - 25 working days.
3. Big order can be delivered from our factory in 30-35 working days at most.
OEM / ODM Service
1. If the total order quantities are above 60pcs, we can silk-screen print customer’s logo on the products, and put customer’s model numbers in the labels, boxes, and in the manuals free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide two-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
