Specifications
hd sdi cctv mini cameras1. Full HD Resolution, 1920*1080, 25/30fps
2. Fixed-Focal or Vari-Focal lens optional
3. 1/3'' CMOS
Alibaba best sellers full hd 1080p hd sdi megapixel mini cctv cameras
- Bring You A Clear World,Guard Your Happy Life
What's the key features of hd sdi cctv mini cameras ?
- 1080P HD-SDI Output
- Full HD Resolution, 1920*1080, 25/30fps
- 4/6/8/12/16mm Fixed-Focal Lens or 2.8~12mm Manual Vari-Focal Lens optional
- 1/3” Progressive CMOS Image Sensor
- Day/Night Mode Auto-Switch
- 30meters IR distance
- Waterproof Metal Casing
- DC 12V Power Supply
- Dimension: 180mm*64mm*66mm
- Weight: 0.4Kg

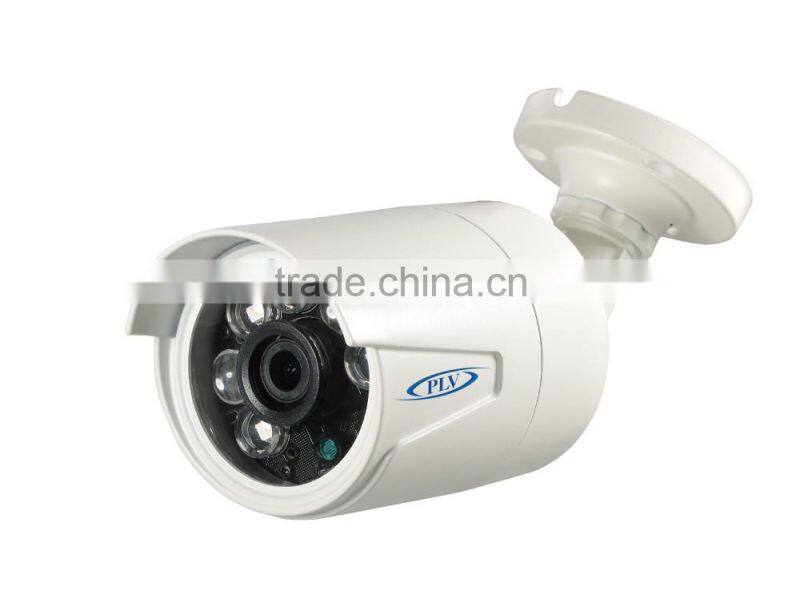

View of the hd sdi cctv mini cameras
Why choose hd sdi CCTV camera ?
Is it better than old cctv cameras?
Yes,of course!
It's perfect one!!!
Perfect Details
What's the specifications of hd sdi cctv mini cameras?
Video | |||
Image Device |
1/3" Panasonic Progressive CMOS |
TV System |
1080P 25/30fps |
Synchronization |
Internal |
Effective Pixels |
1944(H)*1092(V) |
Scanning System |
2:1 Interlace |
Image Resolution |
1920*1080 |
Min. Illumination |
Color: 0.1lux/F1.2; B/W: 0 Lux (IR ON) |
Frame rate |
25f/s or 30f/s |
Video Output |
HD-SDI (SMPTE292M) , BNC |
S/N Ratio |
>50db |
Lens | |||
Focal Length |
4/6/8/12mm 3.0 Mega Pixel Fixed-Focal Lens or Manual Vari-Focal Lens |
||
Operational | |||
OSD Language |
English, Chinese |
||
Day & Night |
AUTO /COLOR /B/W /EXT1/ EXT2 |
HDR |
Low/Mid/High/Off |
Backlight |
General/Highlight |
Auto Gain Control |
ON/OFF |
Auto Exposure Response Speed |
3 Frames |
Noise Reduction |
3D-DNR(ON/OFF) |
Electronic Shutter Speed |
PAL:1/25 ~ 1/25,000sec; NTSC:1/30~ 1/25,000sec |
CCM |
ON/OFF |
White Balance |
Auto/Mode1/Mode2/Mode3/Off |
DPC |
ON/OFF |
HLC |
ON/OFF |
BLC |
ON/OFF |
Privacy Masking |
ON/OFF(8 Zones) |
Auto Iris |
- |
Sharpness |
0~15 Adjustable |
Brightness |
0~63 Adjustable |
Saturation |
0~63 Adjustable |
Contrast |
0~63 Adjustable |
Hue |
0~63 Adjustable |
Self Adaption |
ON/OFF |
IR-CUT |
ICR |
Infrared LED |
2 Array IR LED |
IR Distance |
30 Meters |
Infrared Spectrum |
850nm |
Environmental | |||
Operation Temperature |
-10°C~ +50°C |
Storage Temperature |
-20°C~ +60°C |
Water-proof Casing |
IP66 |
|
|
Electrical | |||
Adapter Requirement |
DC 12V |
Power Consumption |
<1.5W(IR OFF) |
Dimensions |
|
Weight |
|
How does hd sdi camera system work?
How to choose the lens?
What's the applications of hd sdi cctv mini cameras ?
Widely applied in Banking, Super Market, Telecommunication, Government, School, Airport, Factory, Hotel, Restaurant, Bus/train Station, Public Square, Building, Store, Office, House and other fields that need HD video surveillance.
How is the shipping and packaging?
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
We have rich ODM and OEM experience. If you are our customers, you will be offered:
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
We Can provide customized service to meet different requirement, such as different camera casing, different dimension, etc.
The Factory:
The Exhibitons:
The Certificates:
More than 10,000 clients all over the world choose us,please don't hesitate.
Send your inquiry details in the Below for sample.Click “Send” Now!
