Chinese compact loader for hot sale

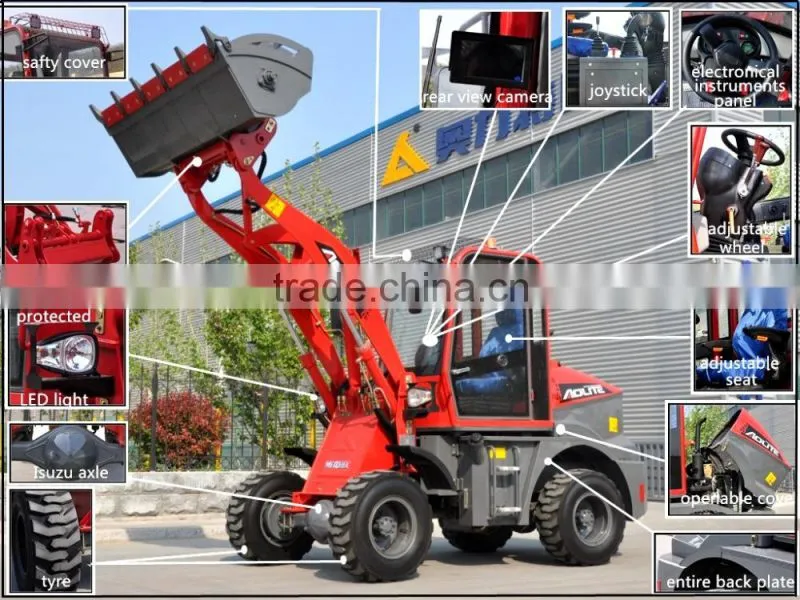

1. new type European enchanced frame, more stable
2. All light are LED light, more environmentale and economical
3. add manganese plate under the bucket to protect the bucket, lengthen bucket life.
4. increasable oil tank, reduce refueling time and relieve works.
5. adopt hydraulic joystick, making the control be more easier.
6. the wheel loader is certificated by ROPS/FOPS ,CE, ISO, SGS etc.

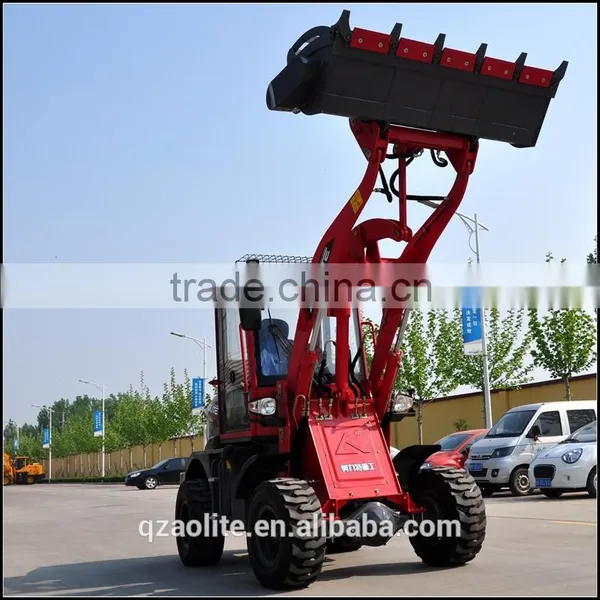

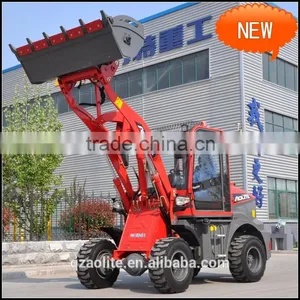

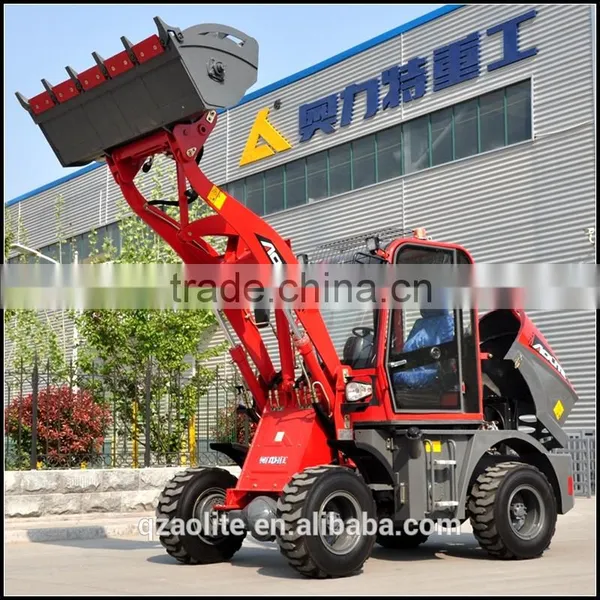

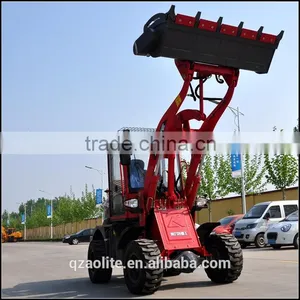

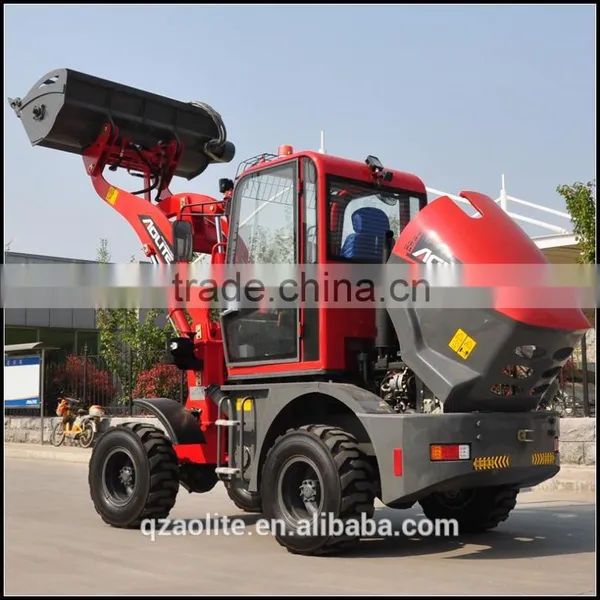

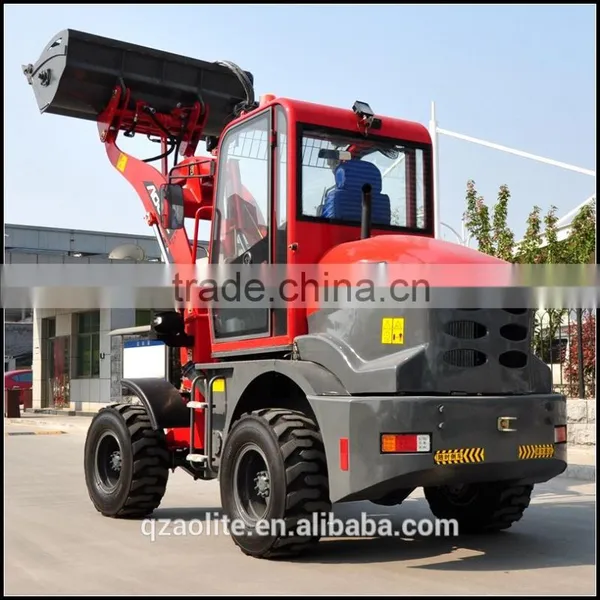

920Wheel loader View
920 wheel loader technical parameters
| Basic specification | ||||
| Model | 920 | Max breaout force | 36K.N. | |
| Overall dimension | 5425x1800x2650mm | Max gradability | 25° | |
| Bucket capacity | 0.5m³ | Min. turning radius | 5260mm | |
| Rated load | 1000kg | Total cycling time | ≤8.5s | |
| Operate weight | 3200kg | Dumping height | 2800mm | |
| Dumping distance | 880mm | Min ground clearance | 260mm | |
| Engine | ||||
| Model | yunnei 490 | |||
| Form: | water cooling, direct injection | |||
| Rated power/speed | 41kw/2650rpm | |||
| Max. Toqure | 147 K.N. | |||
| Transimission system | ||||
| Converter model | 240 | |||
| Gearbox pattern | hydraulic transmission | |||
| Gear shifts | 2 forwards,2 reverse | |||
| Max speed | 25 kw/h | |||
| Front and rear axle | 4x4 drive, front axle fixed, rear axle swing(±11.2°) | |||
| Axle type | Isuzu | |||
| Steering system | ||||
| Pattern | articulated,full hydraulic | |||
| steering angle | 25.6° | |||
| Hydraulic system | ||||
| Working pressure | 16Mpa | |||
| operated type | hydraulic joystick | |||
| Braking system | ||||
| Service brake | oil | |||
| Park brake | hand operated drum disc | |||
| Tyre | ||||
| Size | 20.5-16 | |||
| front/rear tyre pressure | 0.3/0.28Mpa | |||
1. Packaging: Nude package, 3 unit in one 40'HQ,
2. Loading Port: QIngdao port or customized
3. Delivery time: 10 working days after receipt of deposit
4. Payment term: T/T in advance or L/C at sight
We are found in 2004, have more than 10 years experience of produce and export wheel laoders.
As a professional manufacturer of wheel loaders, the company covers an area of 80,0000sqm, have more than 300 staff members, there are 2 assembly lines, 1 automatic coating productioni line, more than 100 set advanced enquipment. the capacity is more than 6000 units per year.
20% of our product are exported to all over the world. the countries like Poland, Fance, Germany, Bulgaria, Sweden, Norway, Mexico, USA, India, Indonesia, Vietnam, Argentina,Brazil,Peru, Zambia, Lybia, Kenya etc all have our product, with the best price and good quality, we earn a good reputation in the world.
Our certificate
Our factory
We are here, welcome to visit our factory and hope to make long time cooperation with you.
