Specifications
coaxial video transmitter and receiver1.1Ch HD-SDI Signal Input
2.Single Mode Fiber
3.Up to 20Km
4.DC 12V Power Supply
PLV Professional Single Channel HD-SDI Optical Receiver,hd-sdi coaxial video transmitter and receiver
What's the key features of coaxial video transmitter and receiver ?
- Support HD-SDI high-definition digital video signals for long distance optical fiber transmission
- Automatically recognize various resolutions of HD-SDI video input without any manual settings
- Support Standards SMPTE292M
- Electrical signal input supports automatic cable equalization function and output signal has drive capability
- Transmitter and receiver both use the clock signal regeneration, reshaping, debounce technology to ensure error-free transmission
- Transmission distances up to 20 km without repeater, which can be cascaded to achieve farther distance
- Using extension cables, more suitable for engineering installation
- Used for long distant video transceiver that more than 300 meters

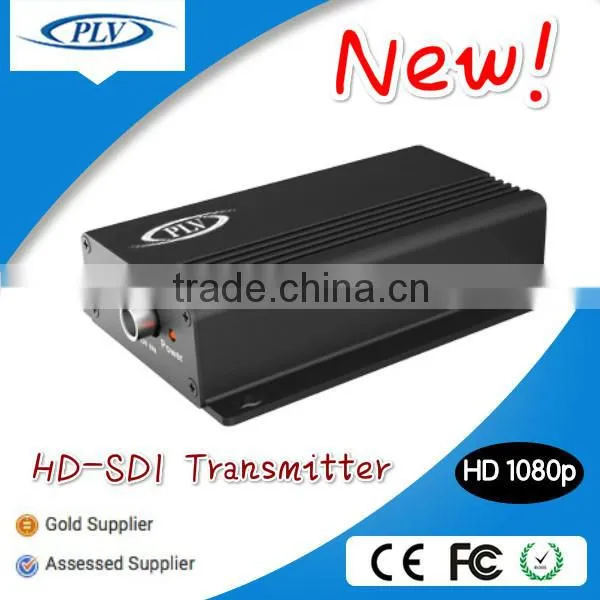

View of the coaxial video transmitter and receiver :
Why choose HD SDI Viedo Surveillance?
Is it better than the old video surveliiace?
Yes,of course!
It's perfect one!!!
What's the specification of the coaxial video transmitter and receiver ?
Video Input | |
Signal Standard |
SMPTE292M(1.485Gbps) |
HD-SDI Standard |
20P30/50/60,1080i50/60,1080P24/25/30 |
Input |
1 Channel |
Electrical Level |
>380mVp-p |
Automatic Cable Equalication |
|
Return Loss |
>15db |
Impedance |
75Ω |
Interface |
BNC |
Video Output | |
Outputs |
1channel |
Output Level |
800mVp-p±10% |
Rise/Fall Time |
<0.8ns |
HD-SDI Maximum Jitter |
<0.2UI(134ps)@100kHz;<1.0UI(673ps)@10Hz |
Impedance |
75Ω |
Interface |
BNC |
Physical Parameters | |
Dimensions(mm) |
|
Weight |
|
Operating Temperature |
-10℃~ +50℃ |
Relative Humidity |
≤90% |
Power |
<2A@12VDC |
LED Indicators |
Power,Optical Signal Status |
Optical Link Parameters |
|
Fiber Mode |
Single Mode |
Optical Fibers |
1 |
Wavelength |
1310nm |
Optical Interface |
FC |
Transmission Distance |
20km |

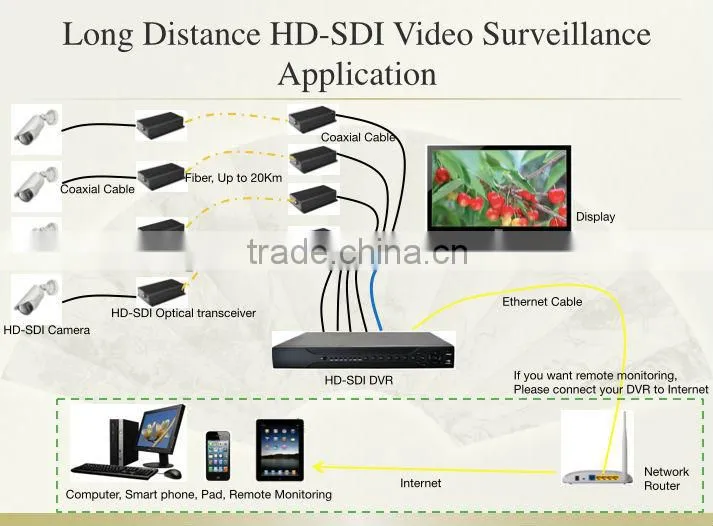

How does the coaxial video transmitter and receiver work?
Long distance dvr surveillance system:
What's the application for coaxial video transmitter and receiver ?
How about the shipping and handling?
1.The package will be shipped from China via Express air or by sea as you request.
2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.
What service does PLV provide?
We have rich OEM and ODM experience. If you are our customers, you will be offered:
1. Free repair within one year after the shipment of products.
2. Replacement within 30 days after the shipment of products due to products' problems.
3. Printing your logo and sticking your model No.on the cameras.
4. Competitve discounts of shipping due the good cooperation with shipping companise and large export volum.
5. Professional technician supports in 24 hours.
6. All goods will be inspected and tested before shipment.
Our Factory:
Our Exhibitions:
Our Certificates:
