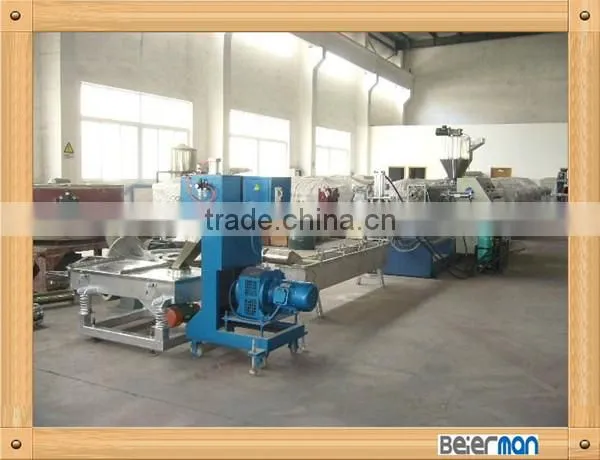

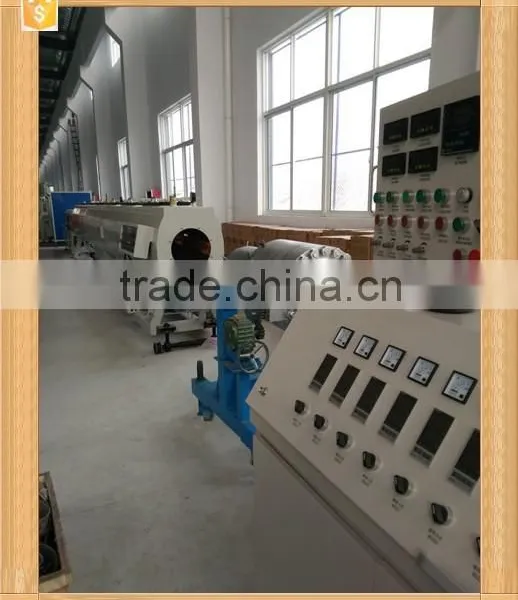

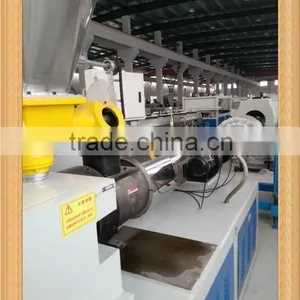

CE/SGS approved 20-110mm HDPE pipe Production line
- 120 Set / Sets per Month
- SHANGHAI/NINGBO for HDPE pipe extrusion line
- T/T Credit Card
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | PE |
Application: | Other, gas pipe of HDPE pipe extrusion line | Production Capacity: | 120KG/HOUR of HDPE pipe extrusion line | Place of Origin: | Jiangsu, China |
Brand Name: | BEIERMAN of HDPE pipe extrusion line | Model Number: | BMGF-63 of HDPE pipe extrusion line | Voltage: | 220/380/415V |
Power(W): | 115KW | Dimension(L*W*H): | 28000X2500X2650mm | Weight: | 15200KG of HDPE pipe extrusion line |
Certification: | CE/SGS/ISO of HDPE pipe extrusion line | Warranty: | one year of HDPE pipe extrusion line | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CE/SGS approved 20-110mm HDPE pipe production line specially designed for PE waste pipes, gas pipe, sewages pipes and electric cable protection pipes making.
Pipe Diameter range: 20-110mm Single Pipe Outlets.
Major parts of HDPE pipe extrusion line :
NO. | Major parts | Detail information |

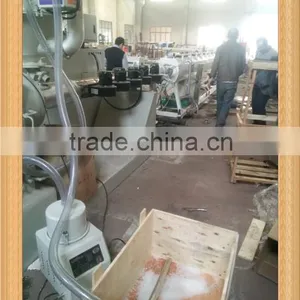

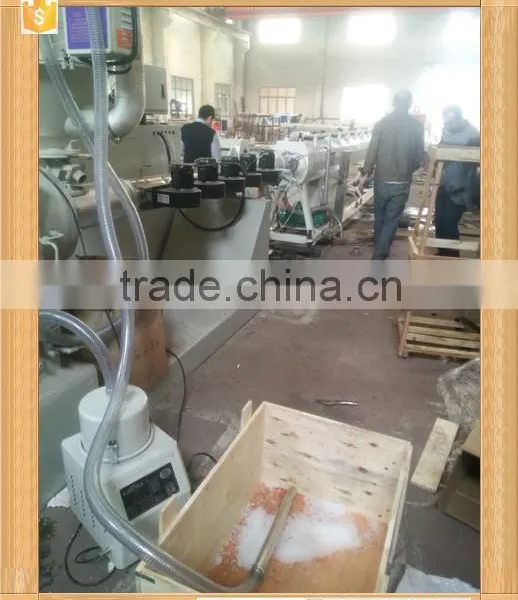

1 | Vacuum Loading Machine | Driving motor: 1.15KW |

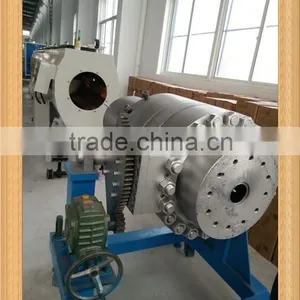

2 | 20-110mmHDPE pipe moulds | Pipe size:20-110mm |

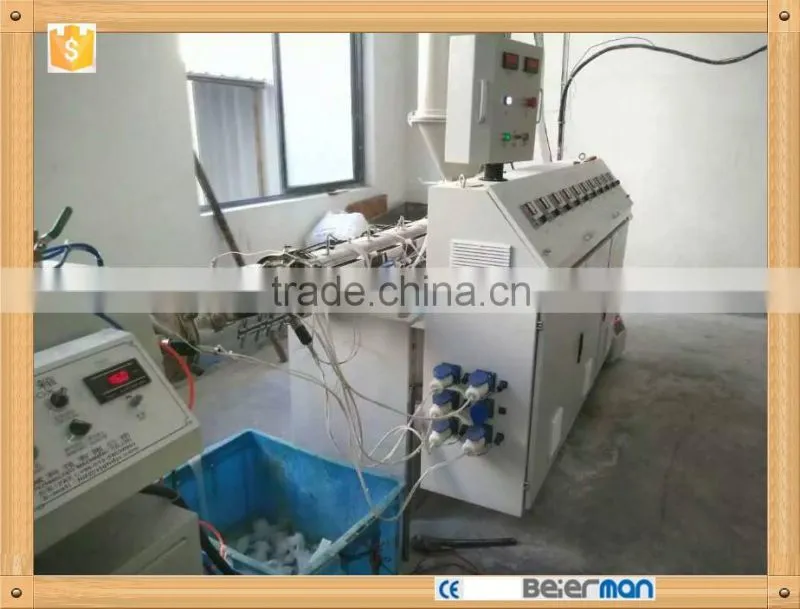

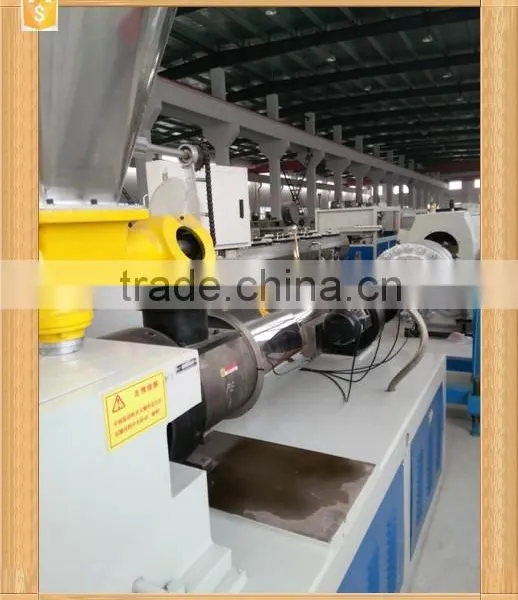

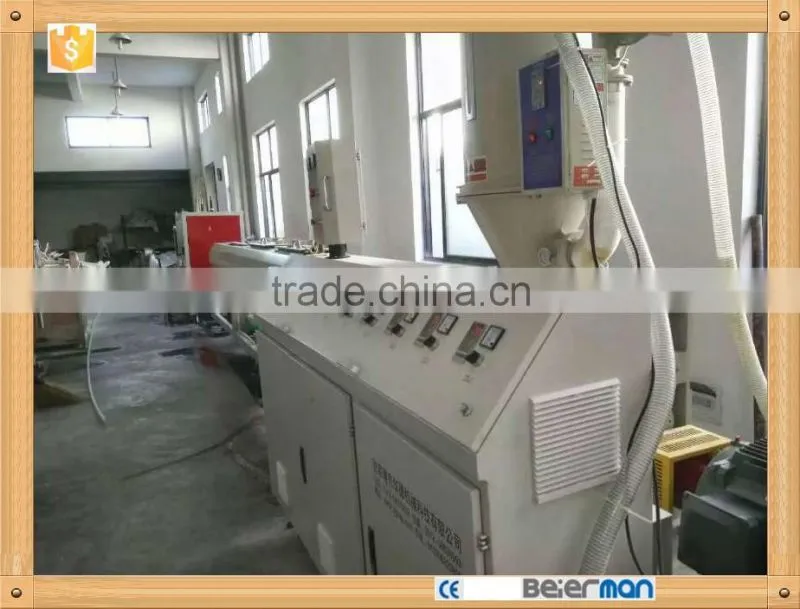

3 | SJ-65/30 Single Screw Extruder | Driving motor: 37KW, Capacity: 80-120KG/HOUR |
4 | SJ-25/25 CO-Extruder | Driving motor: 0.75KW |
5 | Vacuum caliber moulding Tank | Tank length: 6000mm; vacuum pump: 5.5KW, 1pc Water pump: 5.5KW, 1pc, stainless steel tank |
6 | Water Spray Cooling Tank | Water pump: 3KW |
7 | Pipe Haul off Machine | Haul off motor: 3KW, 1pc; inverter control |
8 | Pipe Cutting Machine | Cutting motor: 1.5KW, Cutting type: dust free cutting |
9 | Pipe Stacker | Stacker Length: 4meter, automatic control |
PE pipe production line features:
1. PE pipe production line is chosen for HDPE, PP pipe of high efficiency extruder, screw with belt barrier and mixing head structure, barrel adopt new slot machine barrel, good plasticizing and mixing small fruit, large amount of extrusion and very stable.

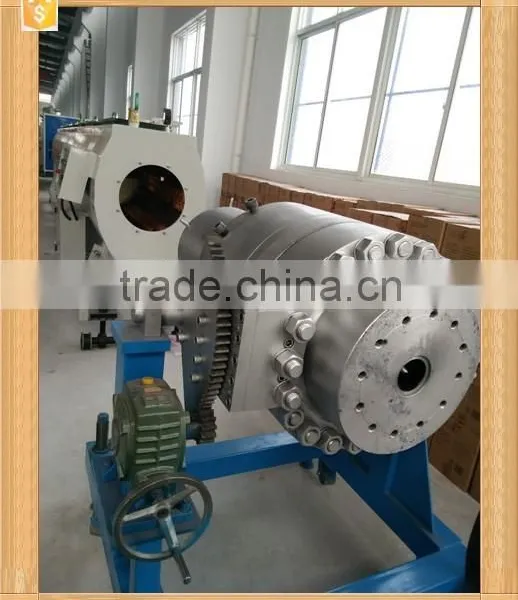

2. The PE pipe production line for HDPE, PP, large diameter thick wall pipe design of screw die, the die head has low melt temperature, mixing performance is good, cavity pressure is low, the characteristics of steady production.
3. The PE pipe production line using proprietary technology, sizing and cooling systems, using water film lubrication and cooling water ring type, to adapt the demand of HDPE, PP material, ensure the production of thick wall pipe is the stability of diameter and roundness.
4. PE pipe production line USES specially designed is multistratum controlled vacuum degree of vacuum sizing box, guarantee the stability of HDPE, PP pipe size and roundness. Extruder, tractor adopts imported famous brand of governor and control, good stability, high precision and high reliability.
5. PE pipe production line operation and is controlled by PLC and set a good man-machine interface, all process parameters can be set by the touch screen and display. Can assemble tag line dedicated extruder, production to meet the requirements of national standard pipe with a color line
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairing.
