Ultrasonic Quilting MachineA. For kinds of Blankets embossing
B.Ultrasonic mattress embossing
C.different design,2~6M/min

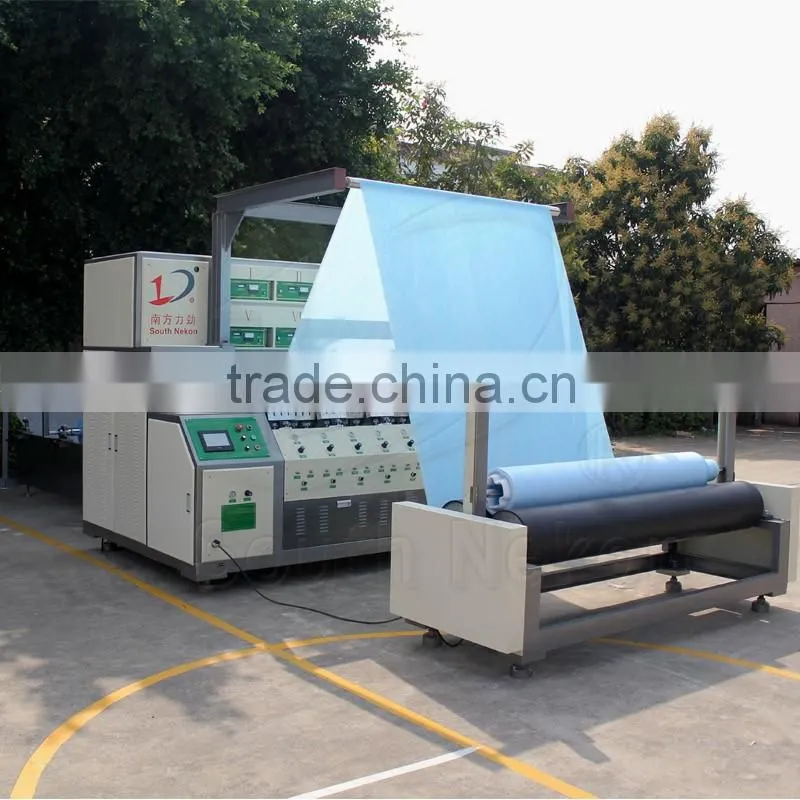

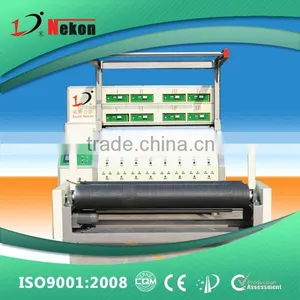

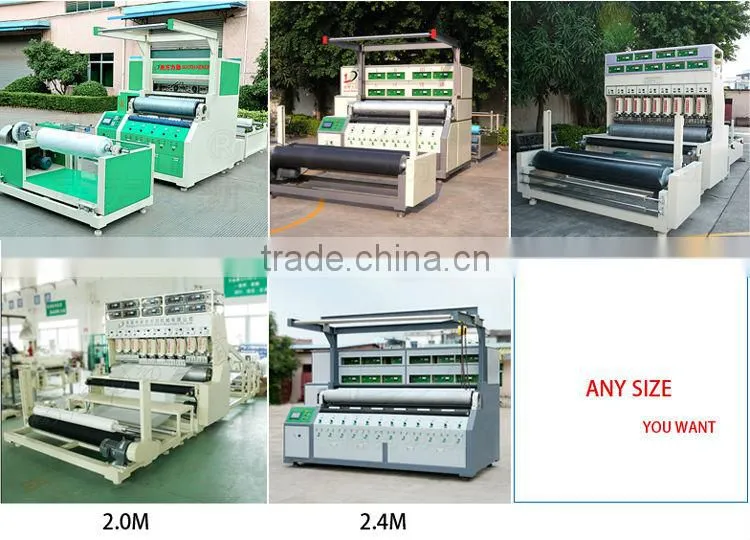

Ultrasonic Quilting Machine
(SIZE AS REQUIRMENT)

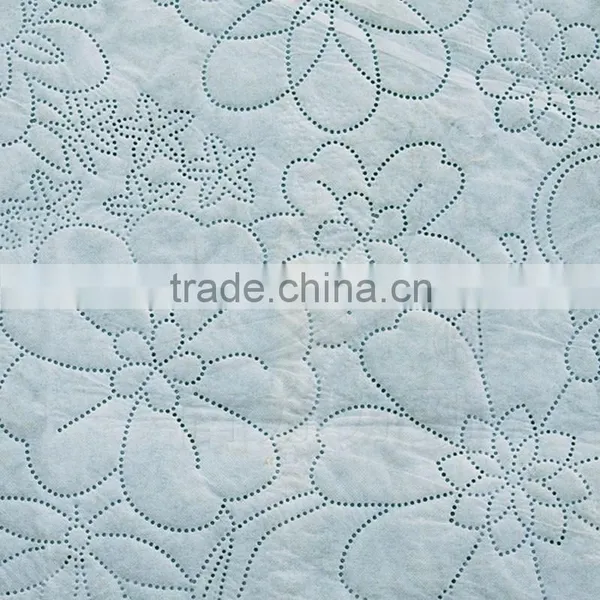

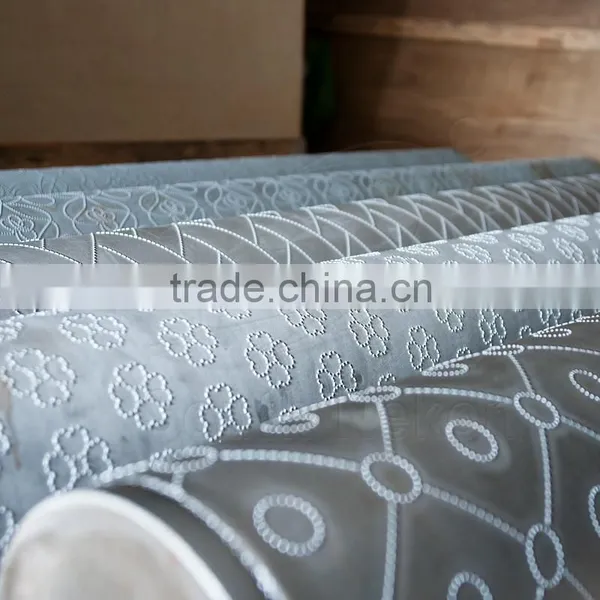

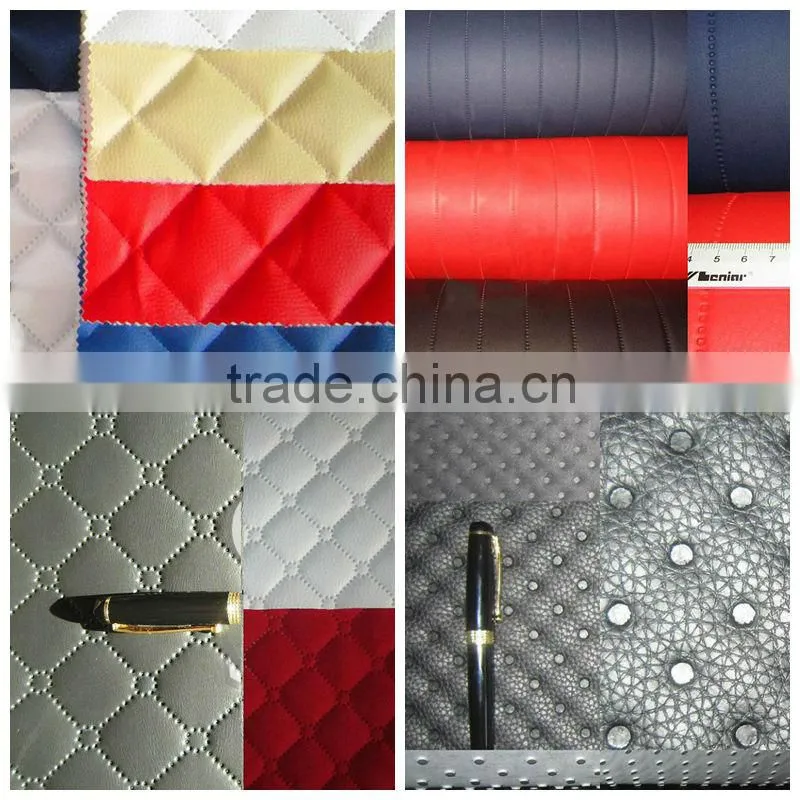

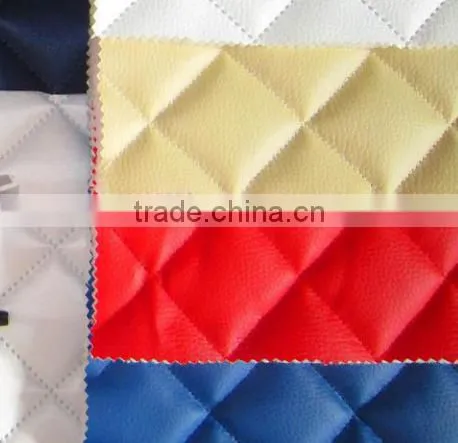

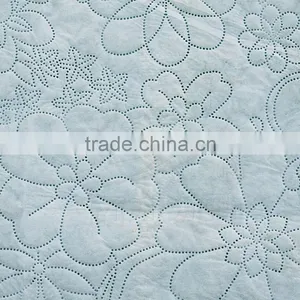

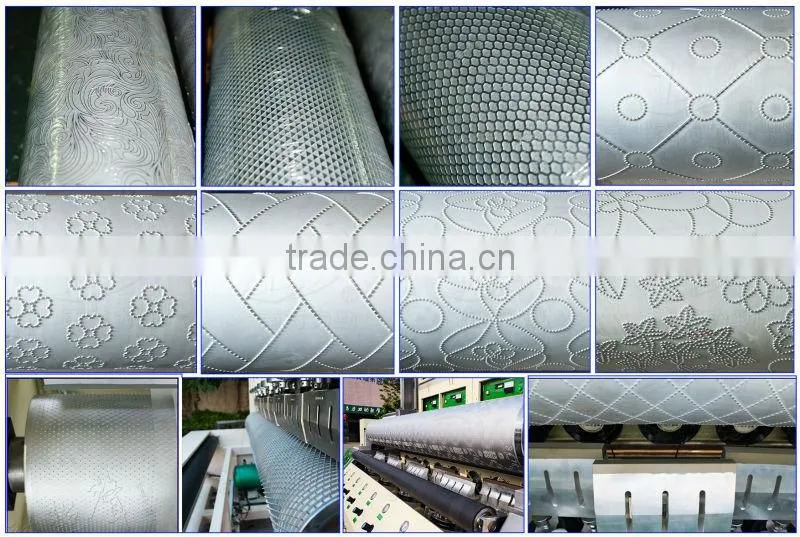

ROLLERS & FINISHED SAMPLES
Dongguan City South Nekon machinery co.,ltd. Is a company with patented technology, high-tech enterprises. Since its inception in 1997, market-oriented, actively introduce talents and foreign advanced techinque, Strengthen international technical exchange and cooperation, Has with the United States, Germany, Japan and other famous companies signed a technology agreement,During the years of research and development and technology research,developed a new generation of ultrasonic sew device--ultrasonic quilting machine, leading the ultrasonic quilting machine industry.
product alias: ultrasonic quilting machine, ultrasonic embossing machine, ultrasonic compound machine, graining machine, coining compound machine, quilt cover quilting machine, automatic quilting machine, clothes quilting machine, ultrasonic quilting coining compound machine, Reflective logo embossing machine, Reflectors compound machine
The principle of operation
Using high-frequency vibration wave propagation to be welded two or more surfaces, In the case of pressure,make the material surface to frication from each other and urge the fusion between the molecular layer,it `s advantage is high speed,energy conservation,high fusion, good conductivity, no spark, close to the cold processing.
Technical parameter
Model:NK-JM2012B
Frequency:20KHZ
Output power:12KW
Dimension:6000MM*2000MM*2500MM
Speed:0-12M/MIN
Weight:5800KG
Product Features
1.Short welding time,ultrasonic automatic bonding without thread and needle more efficient and convenience,the sewing speed is more than 5 to 10 times compare with traditional way.the width of ultrasonic quilting machine is decided by client.
2.becuase of needleless,so that can avoid to leave the needle inside the product, eliminate the security risks,It`s a new safety and environmental protection product.
3.Compare with traditional way,ultrasonic quliting is more cementation, clear embossed surface, has a more three-dimensional relief effect,more high-class and beautiful
4.After Pinhole-free processing,it is waterproof and more warm.
5.Using roller die,easy to change,and can sew many kinds of designs.and can make any design according to client`s request.
6.This machine is fully automatic,equiped with infrared auto edge system can align layers of materials,and let all layers of material to keep in aligned state,low lose of duct is more smooth and stable.
7.easy operation, Automatic FM speed control, Torque motor, Ensure rolling tension constant
ultrasonic quilting machine details show
ultrasonic quilting machine control panel: PLC program control, can select chinese and english display format, Machine run contral program developed by ourselves, and through repeated experiments testing, To ensure that the entire process of high-precision, low-fault to move within high stability
ultrasonic quilting machine welding mould: adopt Aluminum Die imported from Taiwan, contact surface adopt hard oxygen treatment in order to achieve mould hardness and wear resistance, make the mould more resistant to wear and long life.
Applied range
Car tarpaulin, Car seat covers, luggage handbags, footwear shoes, clothing coat, children jacket, pillow, quilt, mattress bed cover, cushion pillow, table mats table cloth, curtain shower curtain, cold gloves, baby mat moisture urinal pad, home decorative supplies, wardrobe, incorporating storage, tents wardrobe, washing machine covers, mummy bag, blanket, cosmetic bags, suit cover, bed cabinet, sauna kits cover, shoes , PVC pool bottom, etc..
South Nekon after service promise
South Nekon sales and service network throughout all over the country, with branches in all major cities or offices to provide for product advice, technical support, maintenance services and sales, for each user to provide timely and thoughtful pre-sale, sale and after-sale service.
Regarding the machine,we promise
1.Whole machine 1 year warranty and lifetime maintenance.
2. Free technical advice and other related maintenance services.
3.If the equipment appear failure,we will try to troubleshooting within 48 hours.
4.Offer the quality design roller.
5.We will send the professional technician to client’s factory to install.
We warmly welcome our customers to choose the largest professional ultrasonic machine manufacturer, perception of the South Nekon superior quality and service.
Workshop Assembly
OUR TEAM: SUPPORT FROM GERMANY
OUR CUSTOMERS
