Specifications
UPVC miller-eddy current milling
-40-60 mesh powder size
-high speed motor
-100-150KG capacity

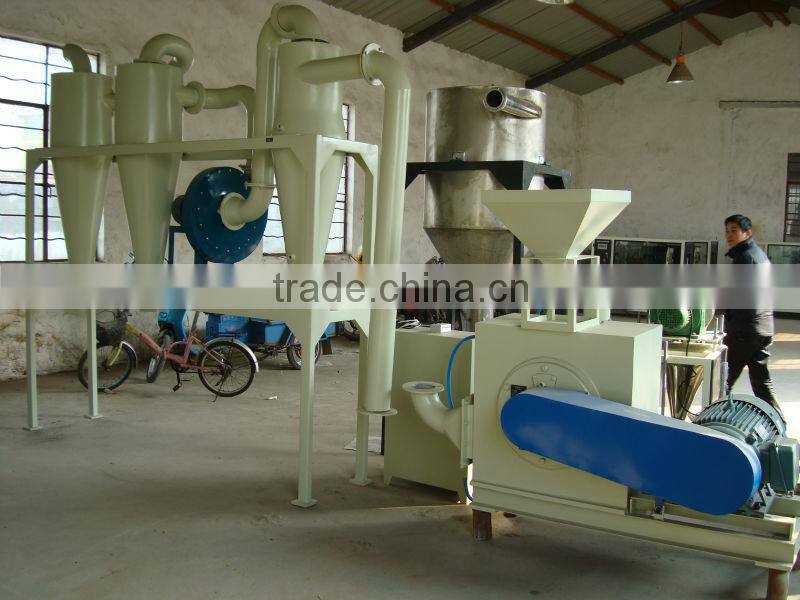

SGS/CE approved SMP-400 UPVC miller special designed for crushed PVC pellets or granulas milling to the PVC powder with dize of 40-60mesh. The final products canbe added to the new raw material and the final PVC products with the same quality like new raw material.
It can be used for plastic pipes, injection waste or films shreddering and crushing.
UPVC milling machine technology information:
|
Driving Part |
Major Motor:30KW 380V 50HZ(can adjust the motor according to Indian detail condition) Speed reducer:bevel gears reducer Oil Cylinder Pump:1.5KW |
|
Shredding Part |
Stator Blades:2 pcs(Material:Cr12MoV)alloy steel Rotor Blades:21 pcs(Material:Cr12MoV)alloy steel |
Rotor Speed |
90r/min |
Shredding Chamber Diameter |
φ252mm |
Electrical Part |
AC contactors and switches:French Schneider |
Oil hydraulic cylinder system |
Oil pressure:18MPA PLC system controls the oil hydraulic cylinder reciprocate Shredding chamber covered with steel plate avoiding the plastic escaped from the shredding chamber. |
Output |
350-500kg/h |
Outside Dimension |
1800*1215*1850mm |
Weight |
About 2000KG |
