bag making machine1.customer made bag size
2.auto sewing of non-woven bag
3.220V,50/60Hz
4.ultrasonic machine

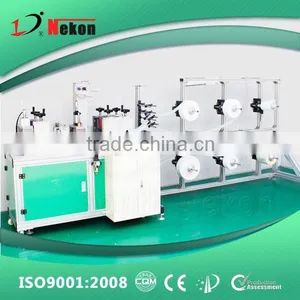

Summarize of auto active carbon bag machine:
Auto active carbon bag machine adopts ultrasonic technology for sewing of active carbon bag successfully, uses special designed roller for bag edge cutting, embossing or punching different holes, can also seal the cutting edges automatically, the sealing edge will be soft, without loose, broken edge; also won’t damage the fabric and it’s character.
Technical Data of Auto Active Carbon Bag Machine
Model No.: NK-TBJ01
Machine Size: 3000*1100*1700mm
Voltage: 220V
Speed: 40~80 pcs/min
Power: 5KW
Air Pressure: 4-6kg/cm2
Features and Functions of Auto Active Carbon Bag Machine:
- Special material feeding device with high precise locating capability, which can control the material to the most economical width for cost saving.
- With the high precise control of material, the finished products will be also controlled to the most excellent size, won’t be material waste.
- Independent feeding frame, which is very convenient for material feeding and adjusting
- High automaticity, the workers only need to feed the material on the feeding frame and collect the finished products.
- Auto counting, can control the speed and production procedure effectively.
- Variable frequency control, speed can be adjusted according to actual production.
- Auto waste material collecting which can simplify the works for the operator.
- Complete aluminium alloy frame, light and rust-proof.
- Taiwan ultrasonic system and Japan imported transducer which can assure the high steady performance and also easy for operation.
10. High quality 750W VFD from Brand Delixi, stable performance and easy to learn.
11. The welding roller is made of imported high quality steel DC53, durable and longer for using.
12. Ultrasonic mould is made of Cr12MoV which is much better than other ordinary mould material in hardness, and is more suitable for long time use, won’t be easy to be damaged or out of shape.
13. High speed and speed can be adjusted.
14. Soft cut edge, the edge won’t be loose, broken and also won’t damage the character of the material
15. Auto frequency tracking ultrasonic generator.

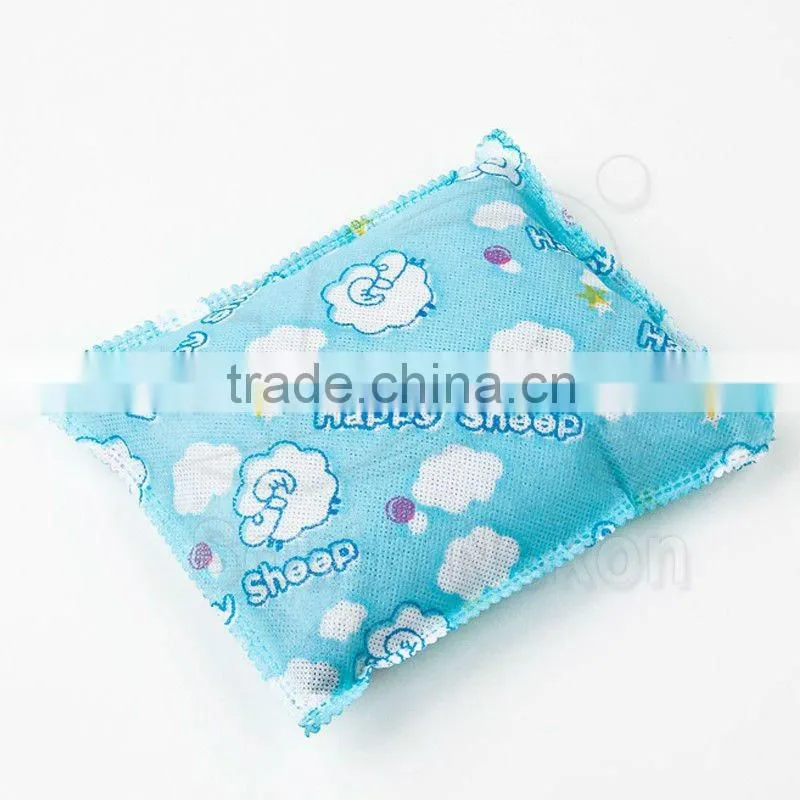

Samples of finished active carbon bag:
