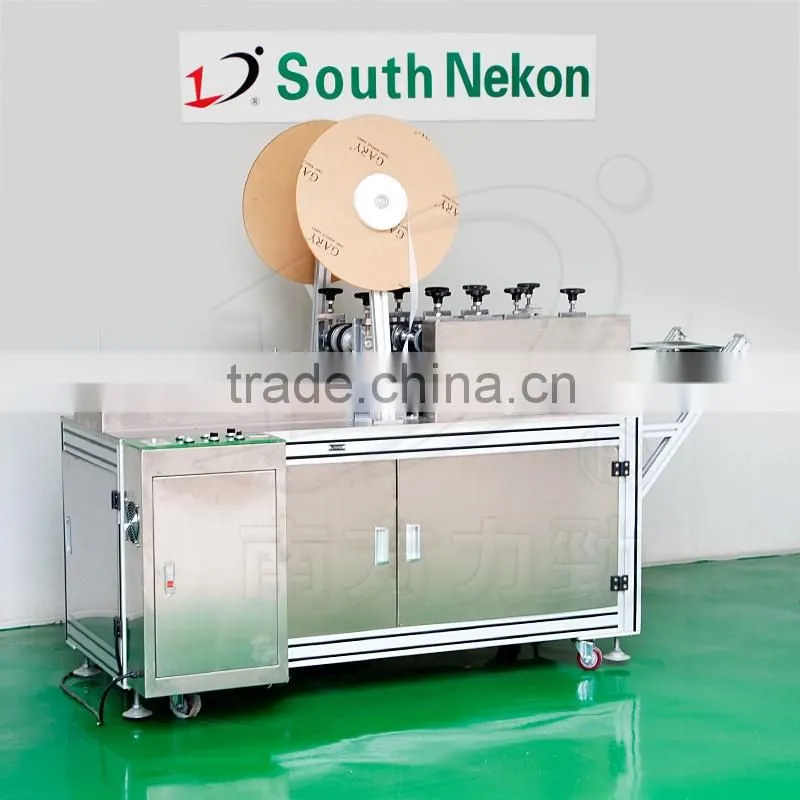

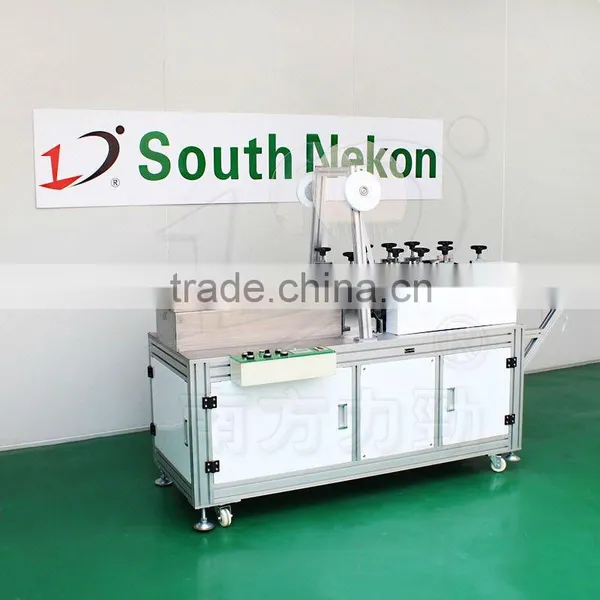

Mask tie on welding machine





Model no.: NK-GW2016
Supply voltage:220 V
Frequency:20 KHz 2set of ultrasonic system
Power:3 KW
Capacity: 25-30 pcs/min
Size of Machine:1900(L) X 730(W)  X 1300(H) mm
Weight of machine:300KG



Tie-on Face Mask Machine Features:

1.Machine frame adopt alloy aluminum,beautiful shape and not rust.

2.Automatic counting,can efficiently control the production efficiency and schedule.

3.Inverter control,the production speed can be adjusted according to the request..

4.Pull tube feeding, positioning is more accurate, it can control to a minimum width of raw materials and save cost.

5.The length of product is controlled of uniform size, deviation ± 1mm, it can effectively control the product length,

6.High degree of automation, low requirement of worker, just need to put on the raw material to the machine and take out the finished.

7.Adopt Taiwan ultrasonic system,Japan vibrator, stable performance.

8.Automatic ultrasonic welding roller is made of high quality steel DC53,increasing the use life,and more durability.

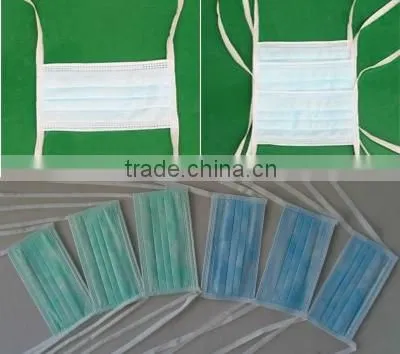

Finished Product:







Dongguan City South Nekon Machinery Co., LTD was founded in 1997, located in the beautiful Shipai Town of Dongguan City, Guangdong Province. South Nekon is a high technical private enterprise owing independent import-export operation rights. Since the establishment, the company has been devoted to optimization and integration of developing, producing, selling, and applicating of technology of ultrasonic machinery (Ultrasonic rhinestone fixing machine,face mask making machine, ultrasonic ribbon cutting machine, ultrasonic lace sewing machine, ultrasonic plastic welding machines, high frequency fusing machine). more than 10 years of experience in automation technology,South Nekon can provide full automation non-standard fabric sewing and cutting equipment according to the specail request. The company established its own brand “NEKON”, and the registered trademark is "South Nekon", we have more than 200 workers(more than 80 technicians and managers with college education). And the head company has an area of more than 10,000 with branch company around the main cities of China such as Wenzhou, Kunshan, Ningbo, Fujian, Zhongshan, Guangzhou, Foshan etc.







South NK carried out in technology cooperation with the German KSZ,Full introduction of Germany advanced design concepts and Strong technical support , The picture shows the guidance of foreign engineers to work:











Delivery Scene:







Q: Delivery item

A:  We will delivery machine within 20 days since the mask size is comfirmed.



Q: Package

A: Wooden case, fumigation will be done if necessary.



Q: Warranty

A:  One year for whole machine; three months for the welding mould.



Q: Door service

A: If customer need, our engineer will go there to help them install machine, train workers how to use and how to maintain the machine. Customer need pay the ticket, room and board, no wages.
