Specifications
Ultrasonic tape Cutting Machine for ribbon1.20~60 cutting/min
2.High precision
3.cutting length adjustable
4.PLC control

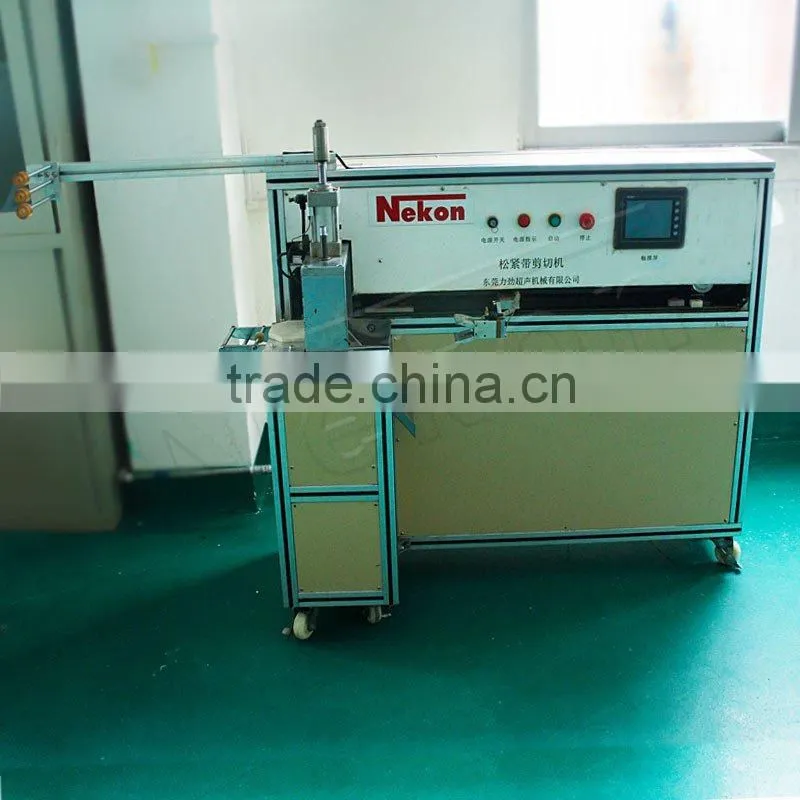

Ultrasonic tape Cutting Machine for ribbon
NK-SJQ006
Professional Nonwoven Products Machinery Manufacturer
Factory Information:
Dongguan City South Nekon ultrasonic Machinery Co. Ltd, owned by South Nekon group, is a well-known manufacturer which specialized in research & development, producing and sales of ultrasonic machinery. And the Ultrasonic Cutting& Slitting Department is mainly for auto ultrasonic ribbon cutting machines, cutting machines, punching and cutting machines, elastic band cutting machines, ultrasonic slitting machines, trade mark slitting machines, semi-auto cutting machines and so on; it can also make special cutting & slitting machines according to customers’ special requirements. We will offer you high quality products with strength of our company and R&D team, well after-sales service which will assure your using of our machines.
This ultrasonic elastic band cutting machine is a ideal new choice for auto cutting of all kinds elastic band, with soft, smooth and artistic cutting edge, one worker can operate more than one machine at the same time which can save a lot of labor cost, thus this machine has won a great honor from the customers.
Ultrasonic tape Cutting Machine for ribbon Technical Data:
Frequency: 20 KHZ
Voltage: 220V, 50/60 Hz
Power: 1500W
Dimension: 1500*700*1450mm
Weight: 105KG
Productivity: 20~60 cutting/min
Ultrasonic tape Cutting Machine for ribbon Features and Function:
1. Japan imported NTK transducers with strong output power and stable performance;
2. The machine head is integral casting, solid, strong and prevent from backwards; more steady working performance
3. Low noise with a frequency of 20KHz;
4. PLC control, easy operation
5. Free cutting length setting, auto material pick up and pulling;
6. Fixed cutter rest which promises more steady performance;
7. Easy cutter changing and fixing;
8. High precision, smart and reasonable design, also with artistic appearance;
Ultrasonic tape Cutting Machine for ribbon Working Features:
Fully Auto—auto manipulator material pick up and pull, auto cutting
Visualized Operation—PLC touch screen, real-time displaying, auto counting;
High Quality--- Auto sealing, without burned, black or loose edge;
Economical & Practical – auto cutting, one worker can operate more than one machine, labor saving;

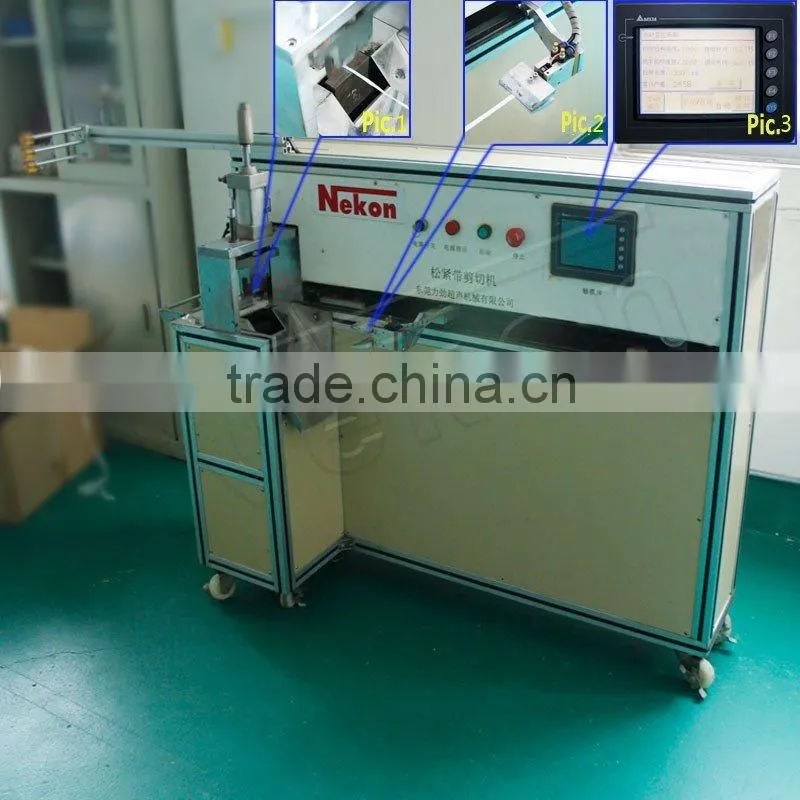

Ultrasonic tape Cutting Machine for ribbon details:
Picture 1: Fixed cutter rest design, easy and quick cutter fixing;
Picture 2: Auto manipulator material pick up and pull, with high speed and capacity;
Picture 3: PLC control, easy learning and operation
Picture 1: Auto manipulator material pick up and pull, adjustable clipping and pulling;
Picture 2: PLC control, editable parameter, auto counting;
Picture 3: Straight cutting, can cut more than one piece at the same time;

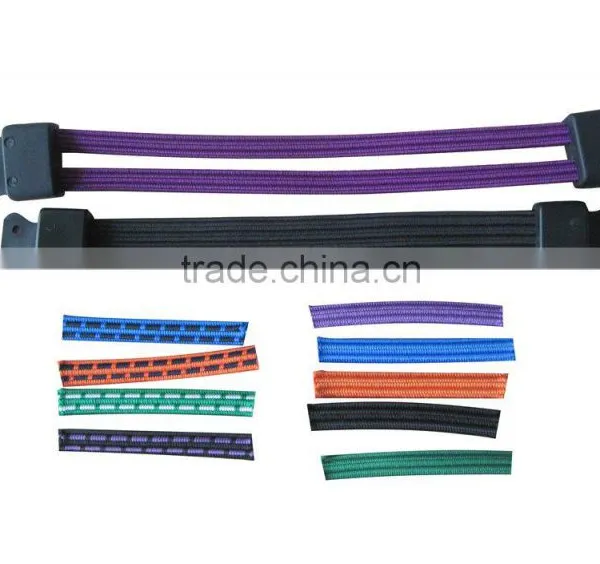

Picture 4: this machine is suitable for cutting of both bands with or without elastic such as bar-type cotton, bra tape, nylon tape, ribbon, rope, braid, meshbelt and so on.
Ultrasonic tape Cutting Machine for ribbon Application:
Ultrasonic elastic band cutting machine is widely used to industries such as garments, caps and shoes manufacturing, artwork ornaments and packages etc.
This machine is suitable for cutting of both bands with or without elastic such as bar-type cotton, bra tape, nylon tape, ribbon, rope, braid, meshbelt and so on.
Ultrasonic tape Cutting Machine for ribbon Samples:
