Help CenterElectric Remote Control Roller Shutter Door
Related Products
electric remote control roller shutter door

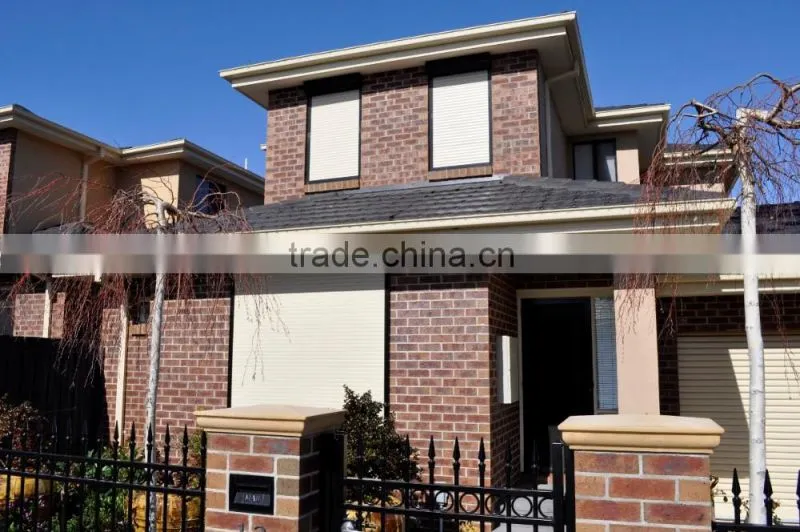

Garage roller shutter/ commercial roller shutter door are medium-sized rolling shutters used at housings like villa,
high-end residence, and at public places, especially when it is linconvenient to install doors on ground., making
it simpler and quiker.
1,Anti-liftup, property security protection
Anti-liftup system brings tamper resistance to ensure safety of indoor car and property.

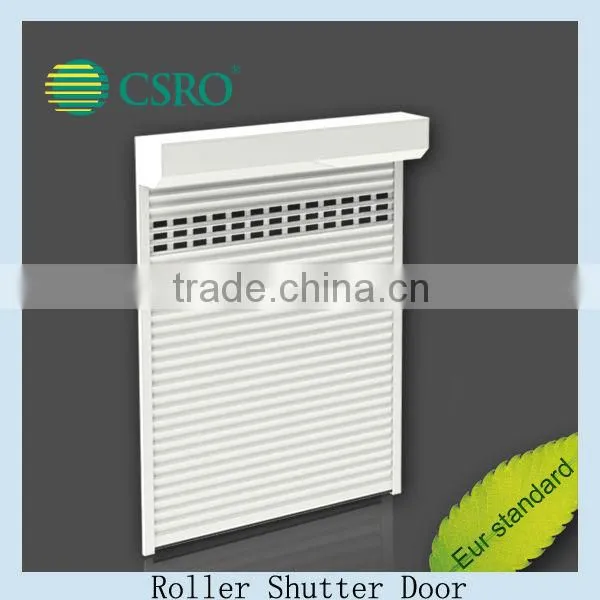

2, Well-lighted slat, keeping indoor ventilation and light softened
Several slats with holes are added to at upper position of shutter to let light and air enter, to keep indoor environment refreshing.
3, Super-strengthened steel slat, high-density foam---better performance, thermal insulation, energy conservation and environmental protection

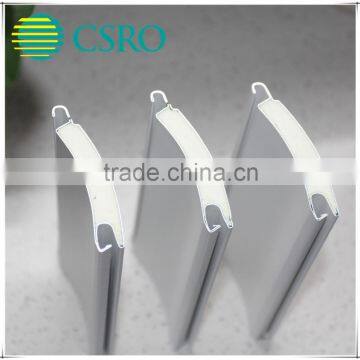

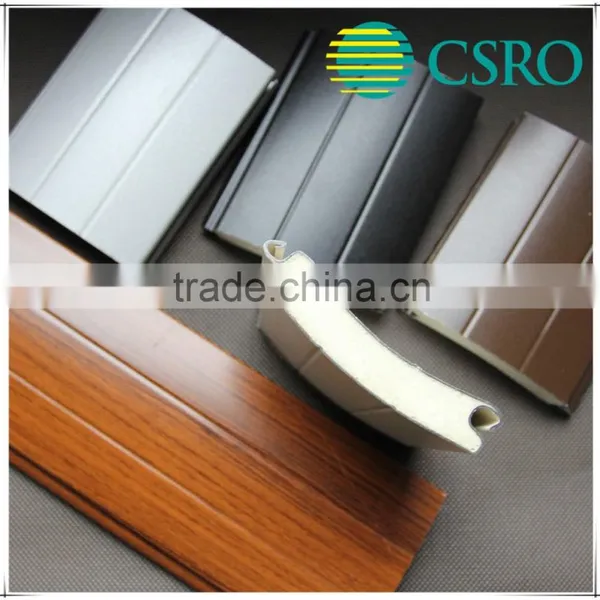

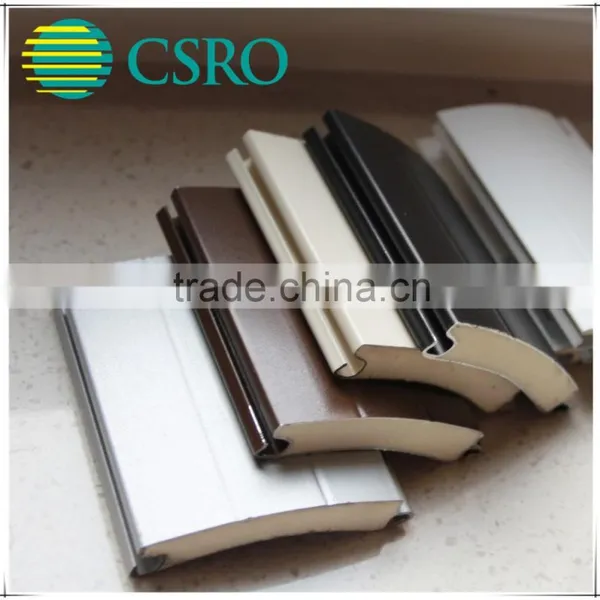

The slat is made out of highly strengthened steel, filling with imported high-density polyurethane foam, with surface scratch-resistant through polyester painting and roll coating, which keeps it from color-fading, brings abrasion-resistance, thermal
insulation, noise insulation, better corrosion resistance, maintains indoor temperature and saves energy consumption.
Rolling surport system
It reduces friction between slat and guide rail, so that slats run more smoothly and service life is prolonged. When shutter is shut, slats are more adapted to guide rail to achieve better sealing effect.
4,System Security- a variety of schemes for contingent power cut and when obstruction get in the way
Obstruction-encounter automatic stop system enables shutter stop lowering immediately when some obstruction gets in the way, avoiding slats are unhooked and damaged when shutter starts reverse running direction, which prolongs service lift of roller shutter. Obstruction-encounter automatic direction reverse system enables shutter stop lowering and convert it running in reverse direction to let person or object pass through safely. Manual operation with crank handle is reserved to make it work normally when power is off.
Function
Installation
Nanjing Jinxinyu Energy Saving Technology Co., Ltd, set up in 2003, is one of the most professional manufacturing companies in sun shading system in China.
Our main products niclude Roller Shutter for Window and Doors, Roller Shutter Profiles and Accessories.
| Item No. | JXY39 | JXY40 | JXY45 | JXY55 | JXY77 | JXYG77 | |
| Plate thickness | 0.21mm | 0.30mm | 0.25mm | 0.30mm | 0.44mm | 0.38mm | |
| 0.24mm | 0.55mm | ||||||
| Max size in use | Width | 2200mm | 3200mm | 2400mm | 3000mm | 4500mm | 4500mm&5000mm |
| Height | 3000mm | 3000mm | 3000mm | 3600mm | 4000mm | 4000mm&5000mm | |
| For 1 meter high | 26.0pcs | 25.0pcs | 18.2pcs | 18.2pcs | 13.0pcs | 13.0pcs | |
| PU density | 60kg/m3 | 60kg/m3 | 60kg/m3 | 60kg/m3 | 60kg/m3 | 60kg/m3 | |
| Surface colour | white, cream, beige, silver, brown, or custom design | ||||||
| Surface treatment | PE multi-layer coating | ||||||
| Material | aluminum | aluminum | aluminum | aluminum | aluminum | steel & PU foam | |
After years of hard work, now JXY posses a number of European polyurethane forming machines. We can produce half a million square meters of finished roller shutters for windows and doors, and three million square meters of profiles per year.
We are already well developed in all major cities in China. Meanwhile, we have already extended our market to many foreign countries, such as Europe, Middle East, Australia, South America etc.
JXY has a well-equipped, elite-gathered R & D team. Combining the European advanced technology and China's developing trend of architecture energy-saving products, now we have eight practical innovation patents and two national invention patents.
